Lincoln Aviator 2020-2025 Service Manual / Body and Paint / Body and Paint / Rear End Sheet Metal Repairs / Removal and Installation - Rear Side Member

Lincoln Aviator: Rear End Sheet Metal Repairs / Removal and Installation - Rear Side Member

Special Tool(s) / General Equipment

MIG/MAG Welding Equipment
Spot Weld Drill Bit

Materials

Name	Specification
Seam Sealer TA-2-B, 3M™ 08308, LORD Fusor® 803DTM	-

Removal

WARNING: Electric vehicles damaged by a crash may have compromised high voltage safety systems and present a potential high voltage electrical shock hazard. Exercise caution and wear appropriate Personal Protective Equipment (PPE) safety gear, including high voltage safety gloves and boots. Remove all metallic jewelry, including watches and rings. Isolate the HV system as directed by the Ford Emergency Response Guide for the vehicle. Failure to follow these instructions may result in serious personal injury or death.

NOTICE: The rear side member(s) are constructed of Boron steel and cannot be sectioned. Side member assembly must be replaced at factory joints.

NOTICE: Provide adequate protection for fuel tank and lines during entire repair process.

NOTICE: Battery electric vehicle (BEV), hybrid electric vehicle (HEV) and plug-in hybrid electric vehicle (PHEV) contain a high-voltage battery. Before cutting or welding near the high-voltage battery it must be removed to avoid damage.

Restore vehicle to pre-accident dimensions, if required.
Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

Remove the back panel and reinforcement.
Refer to: Back Panel and Reinforcement (501-30 Rear End Sheet Metal Repairs, Removal and Installation).

Remove the rear subframe.
Refer to: Rear Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

Remove the fuel tank.
Refer to: Fuel Tank (310-01A Fuel Tank and Lines - 3.0L EcoBoost, Removal and Installation).

Remove the muffler and tailpipe.
Refer to: Muffler and Tailpipe (309-00A Exhaust System - 3.0L EcoBoost, Removal and Installation).

Remove the rear subframe.
Refer to: Rear Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

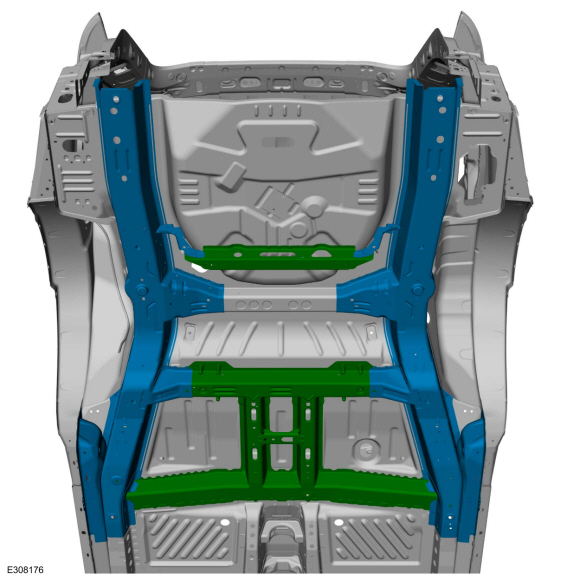

Overview of rear side member assembly.

Position the carpet and wiring harness away from the working area.

Remove the crossmember and reinforcement spot welds as required.

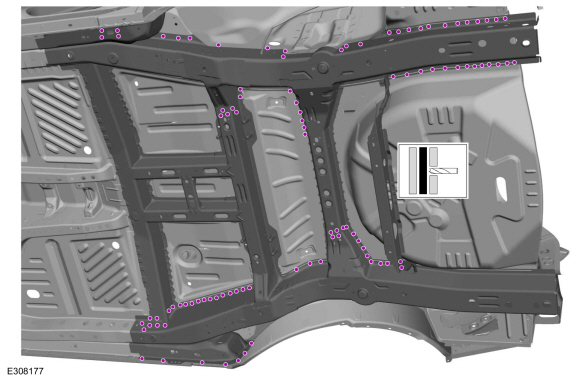

Use the General Equipment: Spot Weld Drill Bit

Installation

NOTICE: The rear side member(s) are constructed of Boron steel and cannot be sectioned. Side member assembly must be replaced at factory joints.

NOTICE: Provide adequate protection for fuel tank and lines during entire repair process.

NOTICE: The high-voltage battery in a battery electric vehicle (BEV), hybrid electric vehicle (HEV) or plug-in hybrid electric vehicle (PHEV) can be affected and damaged by excessively high temperatures. The temperature in some body shop paint booths can exceed 60° C (140° F). Therefore, during refinishing operations, the paint booth temperature must set at or below 60° C (140° F) with a bake time of 45 minutes or less. Temperatures in excess of 60° C (140° F) or bake durations longer than 45 minutes will require the high-voltage battery be removed from the vehicle prior to placing in the paint booth.

NOTICE: If refinishing cure temperatures exceed 60° C (140° F), the charge port light ring on plug-in vehicles must be removed.

NOTE: Factory welds may be substituted with resistance spot welds or metal inert gas (MIG) plug welds. Resistance spot welds may not be placed directly over original location. The must be placed adjacent to original location and equal factory welds in quantity. Metal inert gas (MIG) plug welds must equal factory welds in both location and quantity.

Overview of rear side member assembly.

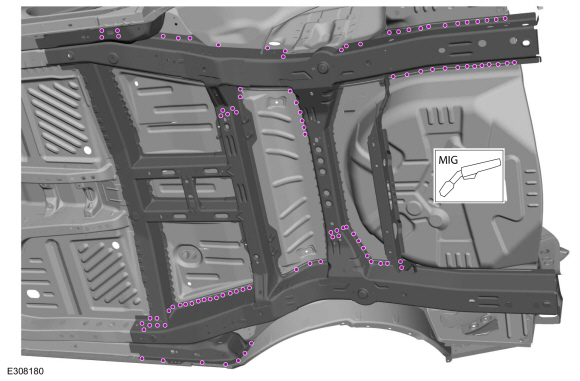

Install the welds.
Use the General Equipment: MIG/MAG Welding Equipment

Metal finish as required using typical metal finishing techniques.

Sealing work: All areas must be sealed to production level.
Material: Seam Sealer / TA-2-B, 3M™ 08308, LORD Fusor® 803DTM

Restore corrosion protection.
Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).

Install the rear subframe.
Refer to: Rear Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

Install the back panel.
Refer to: Back Panel and Reinforcement (501-30 Rear End Sheet Metal Repairs, Removal and Installation).

Install the rear subframe.
Refer to: Rear Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

Install the fuel tank.
Refer to: Fuel Tank (310-01A Fuel Tank and Lines - 3.0L EcoBoost, Removal and Installation).

Reposition the carpeting and wiring harness.

Repower the SRS .
Refer to: Supplemental Restraint System (SRS) Repowering (501-20B Supplemental Restraint System, General Procedures).
