Lincoln Aviator: Passive Anti-Theft System (PATS) - Vehicles With: Phone as a Key / Removal and Installation - Bluetooth B-Pillar Antenna

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Left hand side shown, right hand side similar.

  1. Remove the lower B-pillar trim panel.
    Refer to: B-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. NOTE: Seats removed for clarity.

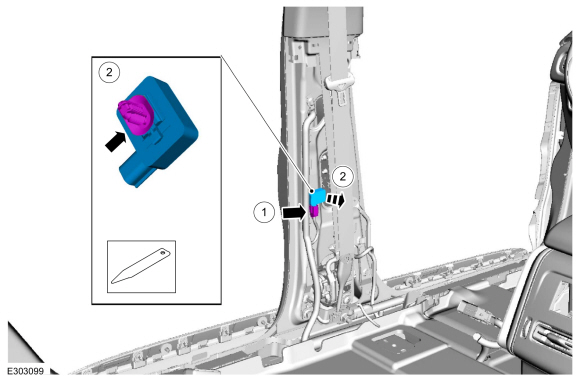

    Remove the bluetooth B-pillar antenna.
    1. Disconnect the bluetooth B-pillar antenna electrical connector.
    1. Release the bluetooth B-pillar antenna clip.
      Use the General Equipment: Interior Trim Remover

Installation

  1. To install, reverse the removal procedure.
  1. Using the diagnostic scan tool, carry out the remote function actuator (RFA) module self test.
