Lincoln Aviator 2020-2025 Service Manual / Electrical / Electronic Feature Group / Passive Anti-Theft System (PATS) - Vehicles With: Phone as a Key / Removal and Installation - Bluetooth Rear Exterior Antenna

Lincoln Aviator: Passive Anti-Theft System (PATS) - Vehicles With: Phone as a Key / Removal and Installation - Bluetooth Rear Exterior Antenna

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Left hand side shown, right hand side similar.

Remove the rear bumper cover.
Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

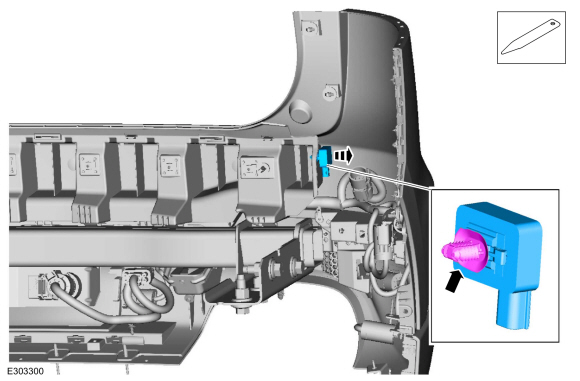

Release the clip and remove the bluetooth rear exterior antenna.
Use the General Equipment: Interior Trim Remover

Installation

To install, reverse the removal procedure.

Using the diagnostic scan tool, carry out the remote function actuator (RFA) module self test.
