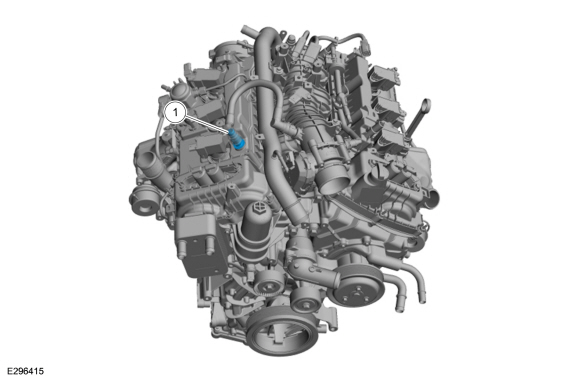

Lincoln Aviator: Engine Emission Control - 3.0L EcoBoost / Description and Operation - Engine Emission Control - Component Location

Engine Emission Control - 3.0L EcoBoost

..

Description and Operation - Engine Emission Control - System Operation and Component Description

System Operation Positive Crankcase Ventilation (PCV) System The PCV system circulates crankcase gases through the intake air system into the engine where they are burned...

Other information:

Lincoln Aviator 2020-2025 Service Manual: Diagnosis and Testing - Airbag Supplemental Restraint System (SRS)

Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).   Diagnostic Trouble Code Chart Module   DTC Description Action   BCM B00A0:11 Occupant Classification System: Circuit Short to Ground   GO to Pinpoint Test BN   BCM B00A0:12 Occupant Classification System: Circuit Short to Battery   GO to Pinpoint Test BN   BCM B1123:11 Restraints Ignition Relay: Circuit Short to Ground   GO to Pinpoint Test BN   BCM B1123:12 Restraints Ignition Relay: Circuit Short to Battery   GO to Pinpoint Test BN   BCM B11D8:01 Restraint Event Notification: General Electrical Failure   GO to Pinpoint Test U   DCME B1262:92 Crash Input Mismatch - CAN Active, Hardware Inactive: Performance Or Incorrect Operation   GO to Pinpoint Test AX   DCMF B1262:92 Crash Input Mismatch - CAN Active, Hardware Inactive: Performance Or Incorrect Operation   GO to Pinpoint Test AX   DCMG B1262:92 Crash Input Mismatch - CAN Active, Hardware Inactive: Performance Or Incorrect Operation   GO to Pinpoint Test AY   DCMH B1262:92 Crash Input Mismatch - CAN Active, Hardware Inactive: Performance Or Incorrect Operation   GO to Pinpoint Test AY   FCIM B00D5:01 Restraint System Passenger Disable Indicator: General Electrical Failure   GO to Pinpoint Test R   FCIM B1202:01 Restraint System Passenger Enable Indicator: General Electrical Failure   GO to Pinpoint Test V   OCSM B0061:11 Passenger Seatbelt Tension Sensor: Circuit Short to Ground   GO to Pinpoint Test BC   OCSM B0061:12 Passenger Seatbelt Tension Sensor: Circuit Short to Battery   GO to Pinpoint Test BC   OCSM B0061:13 Passenger Seatbelt Tension Sensor: Circuit Open   GO to Pinpoint Test BC   OCSM B0061:64 Passenger Seatbelt Tension Sensor: Signal Plausibility Failure   GO to Pinpoint Test BC   OCSM B00A0:62 Occupant Classification System: Signal Compare Failure   GO to Pinpoint Test BD   OCSM B00C0:11 Passenger Seat Occupant Classification Sensor "A": Circuit Short To Ground   GO to Pinpoint Test BE   OCSM B00C0:12 Passenger Seat Occupant Classification Sensor "A": Circuit Short To Battery   GO to Pinpoint Test BE   OCSM B00C0:16 Passenger Seat Occupant Classification Sensor "A": Circuit Voltage Below Threshold   GO to Pinpoint Test BE   OCSM B00C0:49 Passenger Seat Occupant Classification Sensor "A": Internal Electronic Failure   GO to Pinpoint Test BE   OCSM B00C0:7B Passenger Seat Occupant Classification Sensor "A": Low Fluid Level   GO to Pinpoint Test BE   OCSM B00C2:11 Passenger Seat Occupant Classification Sensor "C": Circuit Short to Ground   GO to Pinpoint Test BF   OCSM B00C2:12 Passenger Seat Occupant Classification Sensor "C": Circuit Short to Battery   GO to Pinpoint Test BF   OCSM B1193:00 Crash Event Storage Full and Locked: No Sub Type Information   GO to Pinpoint Test BG   OCSM U0100:00 Lost Communication with ECM/PCM “A”: No Sub Type Information   GO to Pinpoint Test BH   OCSM U0151:00 Lost Communication with Restraints Control Module: No Sub Type Information   GO to Pinpoint Test BI   OCSM U024C:00 Lost Communication with Seat Control Module "H": No Sub Type Information   GO to Pinpoint Test BJ   OCSM U0401:00 Invalid Data Received from ECM/PCM A: No Sub Type Information   GO to Pinpoint Test BK   OCSM U3000:41 Control Module: General Checksum Failure   GO to Pinpoint Test BL   OCSM U3000:42 Control Module: General Memory Failure   GO to Pinpoint Test BL   OCSM U3000:46 Control Module: Special Memory Failure   GO to Pinpoint Test BL   OCSM U3000:54 Control Module: Missing Calibration   GO to Pinpoint Test BM   OCSM U3003:16 Battery Voltage: Circuit Voltage Below Threshold   GO to Pinpoint Test BB   OCSM U3003:17 Battery Voltage: Circuit Voltage Above Threshold   GO to Pinpoint Test BB   RCM B0001:11 Driver Frontal Stage 1 Deployment Control: Circuit Short to Ground   GO to Pinpoint Test A   RCM B0001:12 Driver Frontal Stage 1 Deployment Control: Circuit Short to Battery   GO to Pinpoint Test A   RCM B0001:13 Driver Frontal Stage 1 Deployment Control: Circuit Open   GO to Pinpoint Test A   RCM B0001:1A Driver Frontal Stage 1 Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test A   RCM B0001:2B Driver Frontal Stage 1 Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0001:4A Driver Frontal Stage 1 Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0002:11 Driver Frontal Stage 2 Deployment Control: Circuit Short to Ground   GO to Pinpoint Test B   RCM B0002:12 Driver Frontal Stage 2 Deployment Control: Circuit Short to Battery   GO to Pinpoint Test B   RCM B0002:13 Driver Frontal Stage 2 Deployment Control: Circuit Open   GO to Pinpoint Test B   RCM B0002:1A Driver Frontal Stage 2 Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test B   RCM B0002:2B Driver Frontal Stage 2 Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0002:4A Driver Frontal Stage 2 Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0004:11 Driver Knee Bolster Deployment Control: Circuit Short to Ground   GO to Pinpoint Test C   RCM B0004:12 Driver Knee Bolster Deployment Control: Circuit Short to Battery   GO to Pinpoint Test C   RCM B0004:13 Driver Knee Bolster Deployment Control: Circuit Open   GO to Pinpoint Test C   RCM B0004:1A Driver Knee Bolster Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test C   RCM B0004:2B Driver Knee Bolster Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0004:4A Driver Knee Bolster Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0010:11 Passenger Frontal Stage 1 Deployment Control: Circuit Short to Ground   GO to Pinpoint Test D   RCM B0010:12 Passenger Frontal Stage 1 Deployment Control: Circuit Short to Battery   GO to Pinpoint Test D   RCM B0010:13 Passenger Frontal Stage 1 Deployment Control: Circuit Open   GO to Pinpoint Test D   RCM B0010:1A Passenger Frontal Stage 1 Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test D   RCM B0010:2B Passenger Frontal Stage 1 Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0010:4A Passenger Frontal Stage 1 Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0011:11 Passenger Frontal Stage 2 Deployment Control: Circuit Short to Ground   GO to Pinpoint Test E   RCM B0011:12 Passenger Frontal Stage 2 Deployment Control: Circuit Short to Battery   GO to Pinpoint Test E   RCM B0011:13 Passenger Frontal Stage 2 Deployment Control: Circuit Open   GO to Pinpoint Test E   RCM B0011:1A Passenger Frontal Stage 2 Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test E   RCM B0011:2B Passenger Frontal Stage 2 Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B0011:4A Passenger Frontal Stage 2 Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0013:11 Passenger Knee Bolster Deployment Control: Circuit Short to Ground   GO to Pinpoint Test F   RCM B0013:12 Passenger Knee Bolster Deployment Control: Circuit Short to Battery   GO to Pinpoint Test F   RCM B0013:13 Passenger Knee Bolster Deployment Control: Circuit Open   GO to Pinpoint Test F   RCM B0013:1A Passenger Knee Bolster Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test F   RCM B0013:2B Passenger Knee Bolster Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B0013:4A Passenger Knee Bolster Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0050:11 Driver Seatbelt Sensor: Circuit Short to Ground   GO to Pinpoint Test G   RCM B0050:12 Driver Seatbelt Sensor: Circuit Short to Battery   GO to Pinpoint Test G   RCM B0050:13 Driver Seatbelt Sensor: Circuit Open   GO to Pinpoint Test G   RCM B0050:1D Driver Seatbelt Sensor: Circuit Current Out of Range   GO to Pinpoint Test G   RCM B0050:2B Driver Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B0050:4A Driver Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0052:11 Passenger Seatbelt Sensor: Circuit Short to Ground   GO to Pinpoint Test H   RCM B0052:12 Passenger Seatbelt Sensor: Circuit Short to Battery   GO to Pinpoint Test H   RCM B0052:13 Passenger Seatbelt Sensor: Circuit Open   GO to Pinpoint Test H   RCM B0052:1D Passenger Seatbelt Sensor: Circuit Current Out of Range   GO to Pinpoint Test H   RCM B0052:2B Passenger Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B0052:4A Passenger Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0054:11 Second Row Center Seatbelt Sensor: Circuit Short To Ground   GO to Pinpoint Test I   RCM B0054:12 Second Row Center Seatbelt Sensor: Circuit Short To Battery   GO to Pinpoint Test I   RCM B0054:13 Second Row Center Seatbelt Sensor: Circuit Open   GO to Pinpoint Test I   RCM B0054:1D Second Row Center Seatbelt Sensor: Circuit Current Out Of Range   GO to Pinpoint Test I   RCM B0054:2B Second Row Center Seatbelt Sensor: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0054:4A Second Row Center Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0070:11 Driver Seatbelt Pretensioner "A" Deployment Control: Circuit Short to Ground   GO to Pinpoint Test J   RCM B0070:12 Driver Seatbelt Pretensioner "A" Deployment Control: Circuit Short to Battery   GO to Pinpoint Test J   RCM B0070:13 Driver Seatbelt Pretensioner "A" Deployment Control: Circuit Open   GO to Pinpoint Test J   RCM B0070:1A Driver Seatbelt Pretensioner "A" Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test J   RCM B0070:2B Driver Seatbelt Pretensioner "A" Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0070:4A Driver Seatbelt Pretensioner "A" Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0072:11 Passenger Seatbelt Pretensioner "A" Deployment Control: Circuit Short to Ground   GO to Pinpoint Test K   RCM B0072:12 Passenger Seatbelt Pretensioner "A" Deployment Control: Circuit Short to Battery   GO to Pinpoint Test K   RCM B0072:13 Passenger Seatbelt Pretensioner "A" Deployment Control: Circuit Open   GO to Pinpoint Test K   RCM B0072:1A Passenger Seatbelt Pretensioner "A" Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test K   RCM B0072:2B Passenger Seatbelt Pretensioner "A" Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0072:4A Passenger Seatbelt Pretensioner "A" Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B007E:11 Driver Seatbelt Pretensioner "C" Deployment Control: Circuit Short to Ground   GO to Pinpoint Test L   RCM B007E:12 Driver Seatbelt Pretensioner "C" Deployment Control: Circuit Short to Battery   GO to Pinpoint Test L   RCM B007E:13 Driver Seatbelt Pretensioner "C" Deployment Control: Circuit Open   GO to Pinpoint Test L   RCM B007E:1A Driver Seatbelt Pretensioner "C" Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test L   RCM B007E:2B Driver Seatbelt Pretensioner "C" Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B007E:4A Driver Seatbelt Pretensioner "C" Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B007F:11 Passenger Seatbelt Pretensioner "C" Deployment Control: Circuit Short to Ground   GO to Pinpoint Test M   RCM B007F:12 Passenger Seatbelt Pretensioner "C" Deployment Control: Circuit Short to Battery   GO to Pinpoint Test M   RCM B007F:13 Passenger Seatbelt Pretensioner "C" Deployment Control: Circuit Open   GO to Pinpoint Test M   RCM B007F:1A Passenger Seatbelt Pretensioner "C" Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test M   RCM B007F:2B Passenger Seatbelt Pretensioner "C" Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B007F:4A Passenger Seatbelt Pretensioner "C" Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0082:11 Passenger Seatbelt Load Limiter Deployment Control: Circuit Short to Ground   GO to Pinpoint Test N   RCM B0082:12 Passenger Seatbelt Load Limiter Deployment Control: Circuit Short to Battery   GO to Pinpoint Test N   RCM B0082:13 Passenger Seatbelt Load Limiter Deployment Control: Circuit Open   GO to Pinpoint Test N   RCM B0082:1A Passenger Seatbelt Load Limiter Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test N   RCM B0082:2B Passenger Seatbelt Load Limiter Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0082:4A Passenger Seatbelt Load Limiter Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B00A0:09 Occupant Classification System: Component Failure   GO to Pinpoint Test O   RCM B00A0:4A Occupant Classification System: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B00A0:63 Occupant Classification System: Circuit / Component Protection Time-Out   GO to Pinpoint Test O   RCM B00A0:64 Occupant Classification System: Signal Plausibility Failure   GO to Pinpoint Test O   RCM B00A0:68 Occupant Classification System: Event Information   GO to Pinpoint Test O   RCM B00B5:11 Driver Seat Track Position Restraints Sensor: Circuit Short to Ground   GO to Pinpoint Test P   RCM B00B5:12 Driver Seat Track Position Restraints Sensor: Circuit Short to Battery   GO to Pinpoint Test P   RCM B00B5:13 Driver Seat Track Position Restraints Sensor: Circuit Open   GO to Pinpoint Test P   RCM B00B5:1D Driver Seat Track Position Restraints Sensor: Circuit Current Out of Range   GO to Pinpoint Test P   RCM B00B5:2B Driver Seat Track Position Restraints Sensor: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B00B5:4A Driver Seat Track Position Restraints Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B00C5:11 Passenger Seat Track Position Restraints Sensor: Circuit Short to Ground   GO to Pinpoint Test Q   RCM B00C5:12 Passenger Seat Track Position Restraints Sensor: Circuit Short to Battery   GO to Pinpoint Test Q   RCM B00C5:13 Passenger Seat Track Position Restraints Sensor: Circuit Open   GO to Pinpoint Test Q   RCM B00C5:1D Passenger Seat Track Position Restraints Sensor: Circuit Current Out of Range   GO to Pinpoint Test Q   RCM B00C5:2B Passenger Seat Track Position Restraints Sensor: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B00C5:4A Passenger Seat Track Position Restraints Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B00D5:01 Restraint System Passenger Disable Indicator: General Electrical Failure   GO to Pinpoint Test R   RCM B00D5:4A Restraint System Passenger Disable Indicator: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1193:00 Crash Event Storage Full and Locked: No Sub Type Information   GO to Pinpoint Test S   RCM B11CF:11 Passenger Frontal Airbag Canister Vent: Circuit Short to Ground   GO to Pinpoint Test T   RCM B11CF:12 Passenger Frontal Airbag Canister Vent: Circuit Short to Battery   GO to Pinpoint Test T   RCM B11CF:13 Passenger Frontal Airbag Canister Vent: Circuit Open   GO to Pinpoint Test T   RCM B11CF:1A Passenger Frontal Airbag Canister Vent: Circuit Resistance Below Threshold   GO to Pinpoint Test T   RCM B11CF:2B Passenger Frontal Airbag Canister Vent: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B11CF:4A Passenger Frontal Airbag Canister Vent: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B11D8:11 Restraint Event Notification: Circuit Short To Ground   GO to Pinpoint Test U   RCM B11D8:12 Restraint Event Notification: Circuit Short To Battery   GO to Pinpoint Test U   RCM B11D8:13 Restraint Event Notification: Circuit Short To Open   GO to Pinpoint Test U   RCM B1202:01 Restraint System Passenger Enable Indicator: General Electrical Failure   GO to Pinpoint Test V   RCM B1202:4A Restraint System Passenger Enable Indicator: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1404:11 Driver Side Airbag Deployment Control: Circuit Short to Ground   GO to Pinpoint Test W   RCM B1404:12 Driver Side Airbag Deployment Control: Circuit Short to Battery   GO to Pinpoint Test W   RCM B1404:13 Driver Side Airbag Deployment Control: Circuit Open   GO to Pinpoint Test W   RCM B1404:1A Driver Side Airbag Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test W   RCM B1404:2B Driver Side Airbag Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B1404:4A Driver Side Airbag Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1405:11 Driver Side Curtain Deployment Control 1: Circuit Short to Ground   GO to Pinpoint Test X   RCM B1405:12 Driver Side Curtain Deployment Control 1: Circuit Short to Battery   GO to Pinpoint Test X   RCM B1405:13 Driver Side Curtain Deployment Control 1: Circuit Open   GO to Pinpoint Test X   RCM B1405:1A Driver Side Curtain Deployment Control 1: Circuit Resistance Below Threshold   GO to Pinpoint Test X   RCM B1405:2B Driver Curtain Deployment Control 1: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B1405:4A Driver Curtain Deployment Control 1: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1407:11 Passenger Side Airbag Deployment Control: Circuit Short to Ground   GO to Pinpoint Test Y   RCM B1407:12 Passenger Side Airbag Deployment Control: Circuit Short to Battery   GO to Pinpoint Test Y   RCM B1407:13 Passenger Side Airbag Deployment Control: Circuit Open   GO to Pinpoint Test Y   RCM B1407:1A Passenger Side Airbag Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test Y   RCM B1407:2B Passenger Side Airbag Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B1407:4A Passenger Side Airbag Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1408:11 Passenger Side Curtain Deployment Control 1: Circuit Short to Ground   GO to Pinpoint Test Z   RCM B1408:12 Passenger Side Curtain Deployment Control 1: Circuit Short to Battery   GO to Pinpoint Test Z   RCM B1408:13 Passenger Side Curtain Deployment Control 1: Circuit Open   GO to Pinpoint Test Z   RCM B1408:1A Passenger Side Curtain Deployment Control 1: Circuit Resistance Below Threshold   GO to Pinpoint Test Z   RCM B1408:2B Passenger Curtain Deployment Control 1: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B1408:4A Passenger Curtain Deployment Control 1: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B140C:11 Second Row Driver Side Seatbelt Sensor: Circuit Short to Ground   GO to Pinpoint Test AA   RCM B140C:12 Second Row Driver Side Seatbelt Sensor: Circuit Short to Battery   GO to Pinpoint Test AA   RCM B140C:13 Second Row Driver Side Seatbelt Sensor: Circuit Open   GO to Pinpoint Test AA   RCM B140C:1D Second Row Driver Side Seatbelt Sensor: Circuit Current Out of Range   GO to Pinpoint Test AA   RCM B140C:2B Second Row Driver Side Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B140C:4A Second Row Driver Side Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B140D:11 Second Row Passenger Side Seatbelt Sensor: Circuit Short to Ground   GO to Pinpoint Test AB   RCM B140D:12 Second Row Passenger Side Seatbelt Sensor: Circuit Short to Battery   GO to Pinpoint Test AB   RCM B140D:13 Second Row Passenger Side Seatbelt Sensor: Circuit Open   GO to Pinpoint Test AB   RCM B140D:1D Second Row Passenger Side Seatbelt Sensor: Circuit Current Out of Range   GO to Pinpoint Test AB   RCM B140D:2B Second Row Passenger Side Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B140D:4A Second Row Passenger Side Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B140E:11 Third Row Driver Side Seatbelt Sensor: Circuit Short To Ground   GO to Pinpoint Test AC   RCM B140E:12 Third Row Driver Side Seatbelt Sensor: Circuit Short To Battery   GO to Pinpoint Test AC   RCM B140E:13 Third Row Driver Side Seatbelt Sensor: Circuit Open   GO to Pinpoint Test AC   RCM B140E:1D Third Row Driver Side Seatbelt Sensor: Circuit Current Out Of Range   GO to Pinpoint Test AC   RCM B140E:2B Third Row Driver Side Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B140E:4A Third Row Driver Side Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B140F:11 Third Row Passenger Side Seatbelt Sensor: Circuit Short To Ground   GO to Pinpoint Test AD   RCM B140F:12 Third Row Passenger Side Seatbelt Sensor: Circuit Short To Battery   GO to Pinpoint Test AD   RCM B140F:13 Third Row Passenger Side Seatbelt Sensor: Circuit Open   GO to Pinpoint Test AD   RCM B140F:1D Third Row Passenger Side Seatbelt Sensor: Circuit Current Out Of Range   GO to Pinpoint Test AD   RCM B140F:2B Third Row Passenger Side Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B140F:4A Third Row Passenger Side Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1410:11 Second Row Driver Side Seatbelt Pretensioner Deployment Control: Circuit Short To Ground   GO to Pinpoint Test AE   RCM B1410:12 Second Row Driver Side Seatbelt Pretensioner Deployment Control: Circuit Short To Battery   GO to Pinpoint Test AE   RCM B1410:13 Second Row Driver Side Seatbelt Pretensioner Deployment Control: Circuit Open   GO to Pinpoint Test AE   RCM B1410:1A Second Row Driver Side Seatbelt Pretensioner Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test AE   RCM B1410:2B Second Row Driver Side Seatbelt Pretensioner Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B1410:4A Second Row Driver Side Seatbelt Pretensioner Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1412:11 Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Circuit Short To Ground   GO to Pinpoint Test AF   RCM B1412:12 Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Circuit Short To Battery   GO to Pinpoint Test AF   RCM B1412:13 Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Circuit Open   GO to Pinpoint Test AF   RCM B1412:1A Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test AF   RCM B1412:2B Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B1412:4A Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1413:11 Driver Frontal Restraints Sensor: Circuit Short to Ground   GO to Pinpoint Test AG   RCM B1413:12 Driver Frontal Restraints Sensor: Circuit Short to Battery   GO to Pinpoint Test AG   RCM B1413:13 Driver Frontal Restraints Sensor: Circuit Open   GO to Pinpoint Test AG   RCM B1413:4A Driver Frontal Restraints Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1413:81 Driver Frontal Restraints Sensor: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1413:96 Driver Frontal Restraints Sensor: Component Internal Failure   GO to Pinpoint Test AH   RCM B1414:11 Driver Side Restraints Sensor 1: Circuit Short to Ground   GO to Pinpoint Test AI   RCM B1414:12 Driver Side Restraints Sensor 1: Circuit Short to Battery   GO to Pinpoint Test AI   RCM B1414:13 Driver Side Restraints Sensor 1: Circuit Open   GO to Pinpoint Test AI   RCM B1414:4A Driver Side Restraints Sensor 1: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1414:81 Driver Side Restraints Sensor 1: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1414:96 Driver Side Restraints Sensor 1: Component Internal Failure   GO to Pinpoint Test AH   RCM B1415:11 Driver Side Restraints Sensor 2: Circuit Short to Ground   GO to Pinpoint Test AJ   RCM B1415:12 Driver Side Restraints Sensor 2: Circuit Short to Battery   GO to Pinpoint Test AJ   RCM B1415:13 Driver Side Restraints Sensor 2: Circuit Open   GO to Pinpoint Test AJ   RCM B1415:4A Driver Side Restraints Sensor 2: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1415:81 Driver Side Restraints Sensor 2: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1415:96 Driver Side Restraints Sensor 2: Component Internal Failure   GO to Pinpoint Test AH   RCM B1417:11 Passenger Frontal Restraints Sensor: Circuit Short To Ground   GO to Pinpoint Test AK   RCM B1417:12 Passenger Frontal Restraints Sensor: Circuit Short To Battery   GO to Pinpoint Test AK   RCM B1417:13 Passenger Frontal Restraints Sensor: Circuit Open   GO to Pinpoint Test AK   RCM B1417:4A Passenger Frontal Restraints Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1417:81 Passenger Frontal Restraints Sensor: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1417:96 Passenger Frontal Restraints Sensor: Component Internal Failure   GO to Pinpoint Test AH   RCM B1418:11 Passenger Side Restraints Sensor 1: Circuit Short to Ground   GO to Pinpoint Test AJ   RCM B1418:12 Passenger Side Restraints Sensor 1: Circuit Short to Battery   GO to Pinpoint Test AJ   RCM B1418:13 Passenger Side Restraints Sensor 1: Circuit Open   GO to Pinpoint Test AJ   RCM B1418:4A Passenger Side Restraints Sensor 1: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1418:81 Passenger Side Restraints Sensor 1: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1418:96 Passenger Side Restraints Sensor 1: Component Internal Failure   GO to Pinpoint Test AH   RCM B1419:11 Passenger Side Restraints Sensor 2: Circuit Short to Ground   GO to Pinpoint Test AI   RCM B1419:12 Passenger Side Restraints Sensor 2: Circuit Short to Battery   GO to Pinpoint Test AI   RCM B1419:13 Passenger Side Restraints Sensor 2: Circuit Open   GO to Pinpoint Test AI   RCM B1419:4A Passenger Side Restraints Sensor 2: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1419:81 Passenger Side Restraints Sensor 2: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1419:96 Passenger Side Restraints Sensor 2: Component Internal Failure   GO to Pinpoint Test AH   RCM B142D:00 Pyrotechnic End of Life Activation Performed: No Sub Type Information   GO to Pinpoint Test AV   RCM B1469:4A Unused Satellite Restraints Sensor 1: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B146A:4A Unused Satellite Restraints Sensor 2: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1492:68 Fuel Cutoff Event: Event Information   GO to Pinpoint Test AW   RCM B14ED:11 Restraint Event Notification 2: Circuit Short To Ground   GO to Pinpoint Test AX   RCM B14ED:12 Restraint Event Notification 2: Circuit Short To Battery   GO to Pinpoint Test AX   RCM B14ED:13 Restraint Event Notification 2: Circuit Open   GO to Pinpoint Test AX   RCM B14EE:11 Restraint Event Notification 3: Circuit Short To Ground   GO to Pinpoint Test AY   RCM B14EE:12 Restraint Event Notification 3: Circuit Short To Battery   GO to Pinpoint Test AY   RCM B14EE:13 Restraint Event Notification 3: Circuit Open   GO to Pinpoint Test AY   RCM B1534:4A Unused Deployable Device: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1535:4A Unused DC Sensor Device: Incorrect Component Installed   GO to Pinpoint Test AM   RCM C0061:68 Lateral Acceleration Sensor: Event Information   GO to Pinpoint Test AN   RCM C0062:68 Longitudinal Acceleration Sensor: Event Information   GO to Pinpoint Test AN   RCM C0063:68 Yaw Rate Sensor: Event Information   GO to Pinpoint Test AN   RCM C0064:68 Roll Rate Sensor: Event Information   GO to Pinpoint Test AN   RCM C0065:68 Vertical Acceleration Sensor: Event Information   GO to Pinpoint Test AN   RCM U0028:08 Vehicle Communication Bus A: Bus Signal/Message Failures   GO to Pinpoint Test AO   RCM U0028:88 Vehicle Communication Bus A: Bus Off   GO to Pinpoint Test AO   RCM U0100:00 Lost Communication with ECM/PCM “A”: No Sub Type Information   GO to Pinpoint Test AP   RCM U0140:00 Lost Communication with Body Control Module: No Sub Type Information   GO to Pinpoint Test AQ   RCM U0146:00 Lost Communication with Gateway "A": No Sub Type Information   GO to Pinpoint Test AR   RCM U0154:00 Lost Communication with Restraints Occupant Classification System Module: No Sub Type Information   GO to Pinpoint Test AS   RCM U0253:00 Lost Communication with Accessory Protocol Interface Module: No Sub Type Information   GO to Pinpoint Test AT   RCM U0300:00 Control Module: No Sub Type Information   GO to Pinpoint Test AV   RCM U0401:00 Invalid Data Received from ECM/PCM A: No Sub Type Information   GO to Pinpoint Test AU   RCM U0401:81 Invalid Data Received from ECM/PCM A: Invalid Serial Data Received   GO to Pinpoint Test AU   RCM U0422:00 Invalid Data Received From Body Control Module: No Sub Type Information   GO to Pinpoint Test AU   RCM U0422:81 Invalid Data Received From Body Control Module: Invalid Serial Data Received   GO to Pinpoint Test AU   RCM U0455:81 Invalid Data Received From Restraints Occupant Classification System Module: Invalid Serial Data Received   GO to Pinpoint Test AU   RCM U0554:00 Invalid Data Received From Accessory Protocol Interface Module: No Sub Type Information   GO to Pinpoint Test AU   RCM U0557:82 Invalid Data Received From Front Controls Interface Module "A": Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test AU   RCM U2024:57 Control Module Cal-Config Data: Invalid/Incompatible Software Component   GO to Pinpoint Test AV   RCM U2100:00 Initial Configuration Not Complete: No Sub Type Information   GO to Pinpoint Test AZ   RCM U2101:00 Control Module Configuration Incompatible: No Sub Type Information   GO to Pinpoint Test AO   RCM U2200:00 Control Module Configuration Memory Corrupt: No Sub Type Information   GO to Pinpoint Test AV   RCM U2300:55 Central Configuration: Not Configured   GO to Pinpoint Test BA   RCM U2300:64 Central Configuration: Signal Plausibility Failure   GO to Pinpoint Test BA   RCM U3000:04 Control Module: System Internal Failure   GO to Pinpoint Test AV   RCM U3000:46 Control Module: Calibration / Parameter Memory Failure   GO to Pinpoint Test AV   RCM U3000:49 Control Module: Internal Electronic Failure   GO to Pinpoint Test AV   RCM U3003:16 Battery Voltage: Circuit Voltage Below Threshold   GO to Pinpoint Test BB   RCM U3003:17 Battery Voltage: Circuit Voltage Above Threshold   GO to Pinpoint Test BB Symptom Chart(s) Symptom Chart: Supplemental Restraint System Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...

Lincoln Aviator 2020-2025 Service Manual: Removal and Installation - Cowl Panel

Removal NOTE: Removal steps in this procedure may contain installation details. Remove the wiper linkage assembly. Refer to: Wiper Linkage Assembly (501-16 Wipers and Washers, Removal and Installation). Remove the bolt and position the wire connectors aside...
