Lincoln Aviator: Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Description and Operation - C Clutch

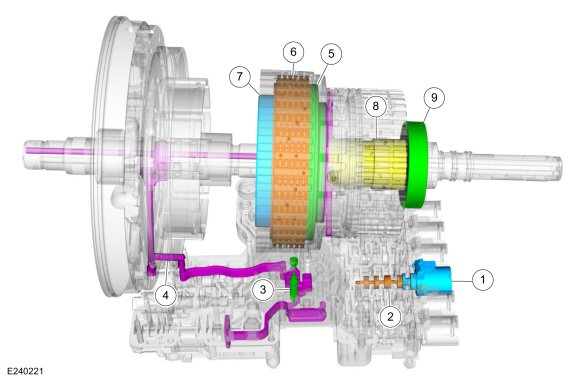

Overview

Item Description
1   SSC
2 C clutch control valve
3 C clutch latch valve
4 C clutch apply circuit
5 C clutch piston
6 C clutch assembly
7 Ring gear No. 2
8 Shaft (sun gear No. 3)
9 Sun gear No. 3

Ring gear No. 2 is mechanically connected to sun gear No. 3 and is also connected to the C clutch. When the C clutch applies, torque from ring gear No. 2 may be applied the planetary carrier No. 3.

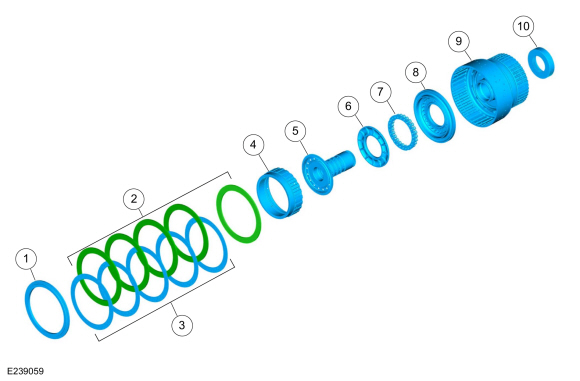

C Clutch Exploded View

Item Description
1 C clutch pressure plate
2 C clutch steel plates
3 C clutch friction plates
4 Ring gear No. 2
5 Shaft (sun gear No 3)
6 C clutch balance dam
7 C clutch piston return spring
8 C clutch piston
9 CDF clutch cylinder
10 Sun gear No. 3

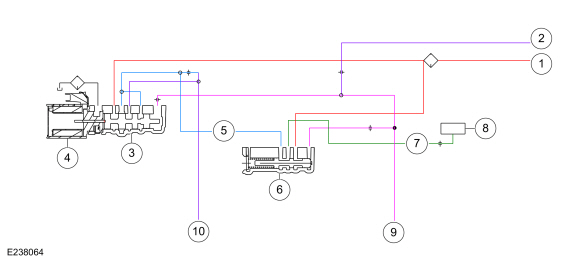

C Clutch Hydraulic Circuits

Item Description
1 Line pressure
2 Pump output
3 C clutch control valve
4   SSC
5 Control pressure to latch valve
6 C clutch latch valve
7 Apply pressure to mechanical C clutch
8 Mechanical C clutch
9 Elevated exhaust pressure
10 Clutch exhaust

C Clutch Hydraulic Operation

Line pressure is supplied to the C clutch control valve and the C clutch latch valve. As SSC turns on, it moves the control valve allowing regulated line pressure to flow to the C clutch latch valve and then to the mechanical C clutch. When the regulated line pressure in the C clutch control circuit reaches approximately 689 kPa (100 psi), the mechanical C clutch is fully applied. The pressure in the C clutch control circuit moves the C clutch latch valve to the left which allows line pressure to hold the mechanical C clutch applied.

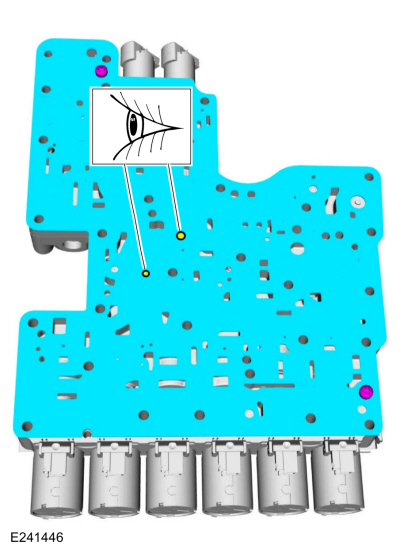

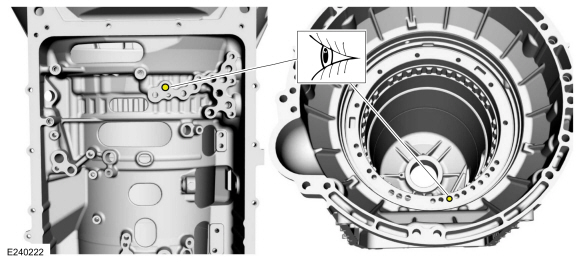

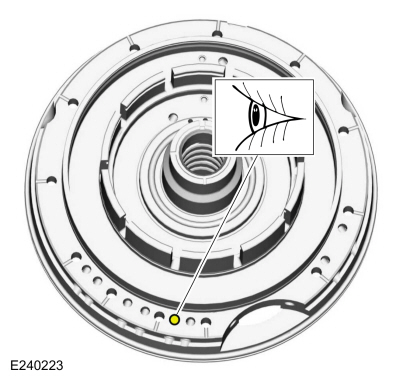

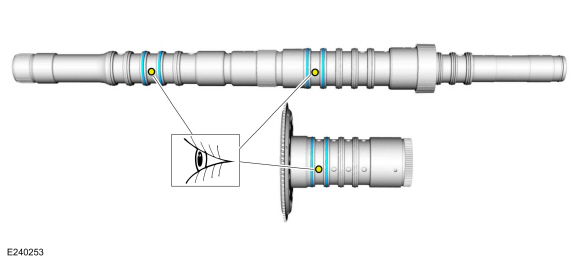

C Clutch Hydraulic Passages
