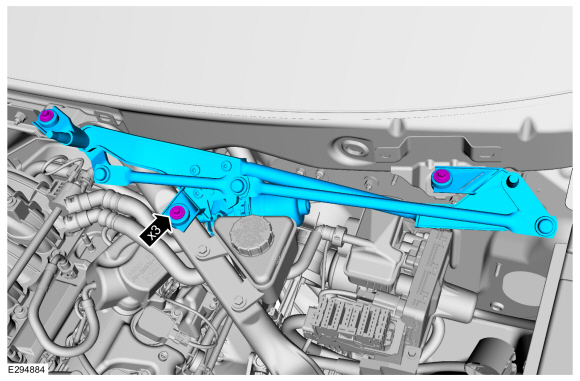

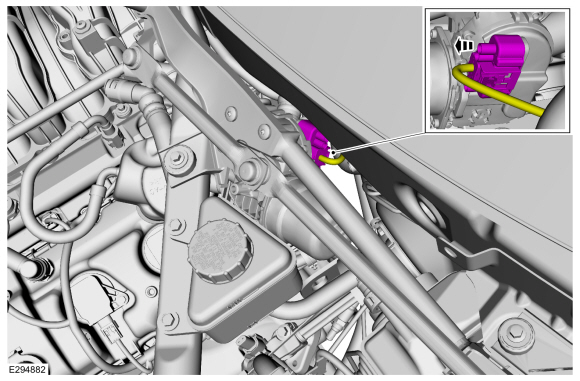

Lincoln Aviator: Wipers and Washers / Removal and Installation - Wiper Linkage Assembly

Removal and Installation - Windshield Wiper Pivot Arm

Special Tool(s) / General Equipment Two Leg Puller Removal NOTE: RH shown, LH similar. NOTE: The hood is removed in this step for clarity...
