Lincoln Aviator: Third Row Seats / Removal and Installation - Power Fold Seat Module [SCMJ]

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The SCMJ (power fold seat module) is located under the LH (left-hand) second row seat cushion frame.

  1. NOTE: This step is only necessary when installing a new component.

    NOTE: The PMI (programmable module installation) process must begin with the current SCMJ (power fold seat module) installed. If the current SCMJ (power fold seat module) does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

    Using the diagnostic scan tool, begin the PMI process for the SCMJ following the on-screen instructions.

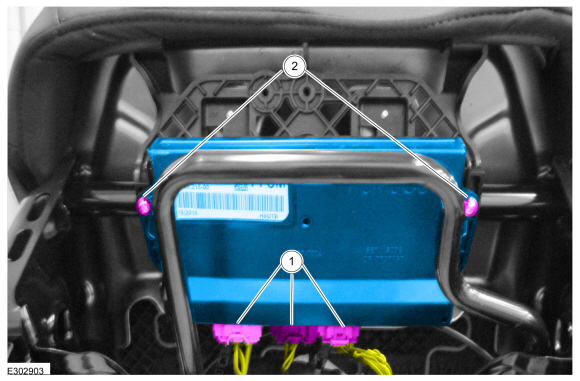

  1. Remove theSCMJ.
    1. Disconnect the electrical connectors.
    1. Remove the screws.
      Torque: 71 lb.in (8 Nm)

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: This step is only necessary when installing a new component.

    Using a diagnostic scan tool, complete the PMI process for the SCMJ following the on-screen instructions.
  1. NOTE: This step is only necessary when installing a new component.

    Using a diagnostic scan tool, CARRY OUT the SCMJ Seat Position Learn routine on the SCMJ following the on-screen instructions.
