Lincoln Aviator: Handles, Locks, Latches and Entry Systems / Removal and Installation - Hood Latch

Removal and Installation - Fuel Filler Door Latch

Removal Remove the fuel filler door assembly. Refer to: Fuel Filler Door Assembly (501-03 Body Closures, Removal and Installation). Remove the fuel filler door latch...

Removal and Installation - Hood Latch Release Cable

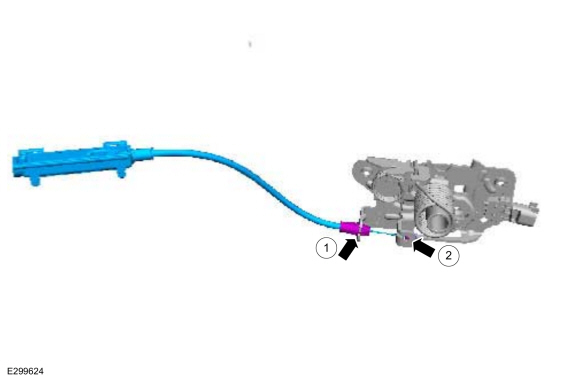

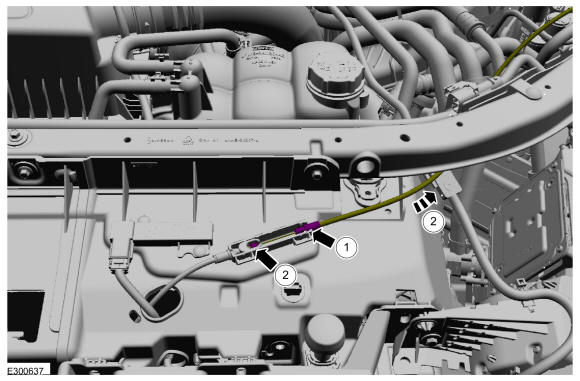

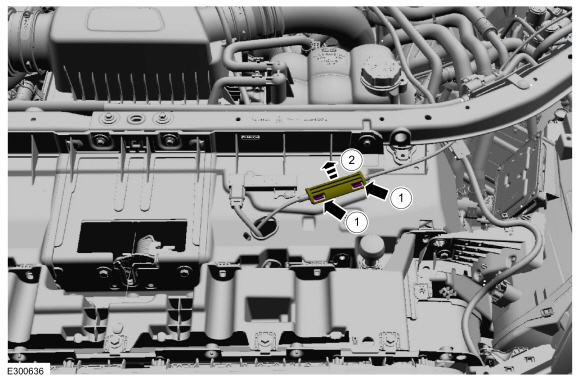

Removal Front Cable Remove the hood latch. Refer to: Hood Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation)...

Other information:

Lincoln Aviator 2020-2026 Service Manual: Removal and Installation - Driveshaft Flexible Coupling

Removal NOTE: The maximum articulation of the flex coupling is 4 degrees. The maximum articulation of any U-joint is 25 degrees. The maximum articulation of the center CV-joint is 20 degrees. The maximum articulation of the rear axle CV-joint is 15 degrees...

Lincoln Aviator 2020-2026 Service Manual: Diagnosis and Testing - Vehicle Dynamic Suspension

Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).   Diagnostic Trouble Code Chart Module   DTC Description Action   VDM C110C:11 Left Front Damper Solenoid: Circuit Short to Ground   GO to Pinpoint Test D   VDM C110C:12 Left Front Damper Solenoid: Circuit Short to Battery   GO to Pinpoint Test D   VDM C110C:13 Left Front Damper Solenoid: Circuit Open   GO to Pinpoint Test D   VDM C110C:64 Left Front Damper Solenoid:Signal Plausibility Failure   GO to Pinpoint Test D   VDM C110D:11 Right Front Damper Solenoid: Circuit Short to Ground   GO to Pinpoint Test E   VDM C110D:12 Right Front Damper Solenoid: Circuit Short to Battery   GO to Pinpoint Test E   VDM C110D:13 Right Front Damper Solenoid: Circuit Open   GO to Pinpoint Test E   VDM C110D:64 Right Front Damper Solenoid:Signal Plausibility Failure   GO to Pinpoint Test E   VDM C110E:11 Left Rear Damper Solenoid: Circuit Short to Ground   GO to Pinpoint Test F   VDM C110E:12 Left Rear Damper Solenoid: Circuit Short to Battery   GO to Pinpoint Test F   VDM C110E:13 Left Rear Damper Solenoid: Circuit Open   GO to Pinpoint Test F   VDM C110E:64 Left Rear Damper Solenoid:Signal Plausibility Failure   GO to Pinpoint Test F   VDM C110F:11 Right Rear Damper Solenoid: Circuit Short to Ground   GO to Pinpoint Test G   VDM C110F:12 Right Rear Damper Solenoid: Circuit Short to Battery   GO to Pinpoint Test G   VDM C110F:13 Right Rear Damper Solenoid: Circuit Open   GO to Pinpoint Test G   VDM C110F:64 Right Rear Damper Solenoid:Signal Plausibility Failure   GO to Pinpoint Test G   VDM C1124:55 Height Sensor(s):Not Configured   GO to Pinpoint Test U   VDM C1124:56 Height Sensor(s):Invalid/Incompatible Configuration   GO to Pinpoint Test U   VDM C1A03:11 Left Front Height Sensor: Circuit Short to Ground   GO to Pinpoint Test H   VDM C1A03:12 Left Front Height Sensor: Circuit Short to Battery   GO to Pinpoint Test H   VDM C1A03:29 Left Front Height Sensor:Signal Invalid   GO to Pinpoint Test H   VDM C1A03:64 Left Front Height Sensor:Signal Plausibility Failure   GO to Pinpoint Test T   VDM C1A04:11 Right Front Height Sensor: Circuit Short to Ground   GO to Pinpoint Test I   VDM C1A04:12 Right Front Height Sensor: Circuit Short to Battery   GO to Pinpoint Test I   VDM C1A04:29 Right Front Height Sensor:Signal Invalid   GO to Pinpoint Test I   VDM C1A04:64 Right Front Height Sensor:Signal Plausibility Failure   GO to Pinpoint Test T   VDM C1A05:11 Left Rear Height Sensor: Circuit Short to Ground   GO to Pinpoint Test J   VDM C1A05:12 Left Rear Height Sensor: Circuit Short to Battery   GO to Pinpoint Test J   VDM C1A05:29 Left Rear Height Sensor:Signal Invalid   GO to Pinpoint Test J   VDM C1A05:64 Left Rear Height Sensor:Signal Plausibility Failure   GO to Pinpoint Test T   VDM C1A06:11 Right Rear Height Sensor: Circuit Short to Ground   GO to Pinpoint Test K   VDM C1A06:12 Right Rear Height Sensor: Circuit Short to Battery   GO to Pinpoint Test K   VDM C1A06:29 Right Rear Height Sensor:Signal Invalid   GO to Pinpoint Test K   VDM C1A06:64 Right Rear Height Sensor:Signal Plausibility Failure   GO to Pinpoint Test T   VDM P1758:19 Pressure Solenoid Control System Incorrect Current: Circuit Current Above Threshold   GO to Pinpoint Test C   VDM U0100:87 Lost Communication With ECM / PCM: Missing Message   GO to Pinpoint Test M   VDM U0121:87 Lost Communication With Anti-Lock Brake System (ABS) Control Module: Missing Message   GO to Pinpoint Test N   VDM U0131:87 Lost Communication With EPAS module: Missing Message   GO to Pinpoint Test O   VDM U0140:87 Lost Communication With Body Control Module: Missing Message   GO to Pinpoint Test P   VDM U0151:87 Lost Communication With Restraints Control Module: Missing Message   GO to Pinpoint Test Q   VDM U0164:87 Lost Communication With HVAC Control Module:Missing Message   GO to Pinpoint Test R   VDM U023A:87 Lost Communication With Image Processing Module A:Missing Message   GO to Pinpoint Test S   VDM U0401:00 Invalid Data Received from ECM/PCM A:No Sub Type Information   GO to Pinpoint Test W   VDM U0415:00 Invalid Data Received from Anti-Lock Brake System (ABS) Control Module "A":No Sub Type Information   GO to Pinpoint Test X   VDM U0420:00 Invalid Data Received from Power Steering Control Module "A":No Sub Type Information   GO to Pinpoint Test Y   VDM U0422:00 Invalid Data Received From Body Control Module:No Sub Type Information   GO to Pinpoint Test Z   VDM U0424:00 Invalid Data Received From HVAC Control Module:No Sub Type Information   GO to Pinpoint Test AA   VDM U0452:00 Invalid Data Received From Restraints Control Module:No Sub Type Information   GO to Pinpoint Test AB   VDM U053B:00 Invalid Data Received From Image Processing Module A:No Sub Type Information   GO to Pinpoint Test AC   VDM U1000:00 Solid State Driver Protection Active -Driver Disabled:No Sub Type Information   GO to Pinpoint Test V   VDM U200D:11 Control Module Output Power A: Circuit Short to Ground   GO to Pinpoint Test L   VDM U200D:12 Control Module Output Power A: Circuit Short to Battery   GO to Pinpoint Test L   VDM U200E:11 Control Module Output Power B: Circuit Short to Ground   GO to Pinpoint Test L   VDM U200E:12 Control Module Output Power B: Circuit Short to Battery   GO to Pinpoint Test L   VDM U200F:11 Control Module Output Power C:Circuit Short To Ground   GO to Pinpoint Test J   VDM U200F:12 Control Module Output Power C:Circuit Short To Battery   GO to Pinpoint Test J   VDM U201E:11 Control Module Output Power D:Circuit Short To Ground   GO to Pinpoint Test K   VDM U201E:12 Control Module Output Power D:Circuit Short To Battery   GO to Pinpoint Test K   VDM U2024:51 Control Module Cal-Config Data:Not Programmed   GO to Pinpoint Test V   VDM U2100:00 Initial Configuration Not Complete:No Sub Type Information   GO to Pinpoint Test V   VDM U2200:00 Control Module Configuration Memory Corrupt:No Sub Type Information   GO to Pinpoint Test V   VDM U3000:04 Control Module:System Internal Failures   GO to Pinpoint Test V   VDM U3000:49 Control Module:Internal Electronic Failure   GO to Pinpoint Test V   VDM U3003:16 Battery Voltage: Circuit Voltage Below Threshold   GO to Pinpoint Test A   VDM U3003:17 Battery Voltage: Circuit Voltage Above Threshold   GO to Pinpoint Test B Symptom Chart Symptom Chart: Vehicle Dynamic Suspension Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
