Lincoln Aviator: Passive Anti-Theft System (PATS) - Vehicles With: Phone as a Key / Removal and Installation - Bluetooth Front Exterior Antenna
Special Tool(s) /
General Equipment
Removal
-
Remove the front bumper cover.
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
-

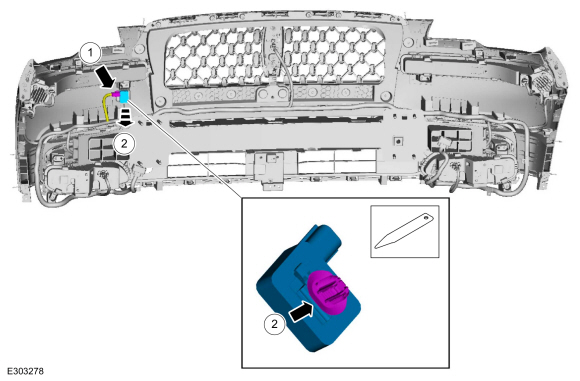

Remove the bluetooth front exterior antenna.
-
Disconnect the bluetooth front exterior antenna electrical connector.
-
Release the bluetooth front exterior antenna clip.
Use the General Equipment: Interior Trim Remover
Installation
-
To install, reverse the removal procedure.
-
Using the diagnostic scan tool, carry out the remote function actuator (RFA) module self test.
Special Tool(s) /
General Equipment
Pick Hook
Interior Trim Remover
Removal
Remove the FCIMB.
Refer to: Front Controls Interface Module B (FCIMB) (415-00 Information and Entertainment System - General Information, Removal and Installation)...
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
Remove the liftgate trim panel.
Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
Other information:
For recommended metal repair guidelines and recommendations, refer to the following illustrations and: For additional information, refer to: Specifications (501-25 Body Repairs - General Information, Specifications).
Steel Type Legend
Item
Steel Type
Color
1
Mild Steel
Yellow
2
Bake Hardened Steel (BH)
Light Blue
3
Solid Solution Strength
Pink
4
High Strength Low Alloy (HSLA)
Dark Blue
5
Dual Phase (DP) 500, 600 Class Steel
Green
6
Dual Phase (DP) 700, 800, 900, 1000 Class Steel
Fuchsia
7
Laminate Steel
Teal
8
Ultra High Strength Steel (UHSS) Martensitic, Boron
Red
9
Transformation Induced Plasticity Steel (TRIP)
Gold
10
Aluminum
Purple
Front Structure
Item
Description
Steel Type
1
Radiator support
Magnesium alloy
2
Bracket
High-Strength Low Alloy (HSLA) 350 steel
3
Bracket
Aluminum alloy
4
Suspension housing
Aluminum alloy
5
Reinforcement
High-Strength Low Alloy (HSLA) 350 steel
6
Reinforcement
Boron and Dual Phase (DP) 600 steel
7
Reinforcement
Boron and Dual Phase (DP) 600 steel
8
Bracket
Aluminum alloy
9
Side member assembly
Aluminum alloy
10
Fender apron tube
Dual Phase (DP) 800 steel
Front Bumper
Item
Description
Steel Type
1
Bumper assembly
High strength aluminum
Dash Panel and Front Fenders
Item
Description
Steel Type
1
Crossmember
Boron steel
2
Dash panel
Mild steel
3
Cowl top panel
Mild steel
4
Reinforcement
Dual Phase (DP) 800 steel
5
Front crossmemembr extension
Dual Phase (DP) 600 steel
6
Reinforcement
Dual Phase (DP) 800 steel
7
Fender assembly (LH/RH)
Bake Hardened (BH) 210 steel
8
Bracket
Mild steel
Body Side Inner Panels
NOTE:
Left hand (LH) side shown, right hand (RH) side similar...
Materials
Name
Specification
Motorcraft® MERCON® ULV Automatic Transmission FluidXT-12-QULV
WSS-M2C949-A, MERCON® ULV
Removal
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation)...
