Lincoln Aviator: Roof Opening Panel / Removal and Installation - Air Deflector
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-

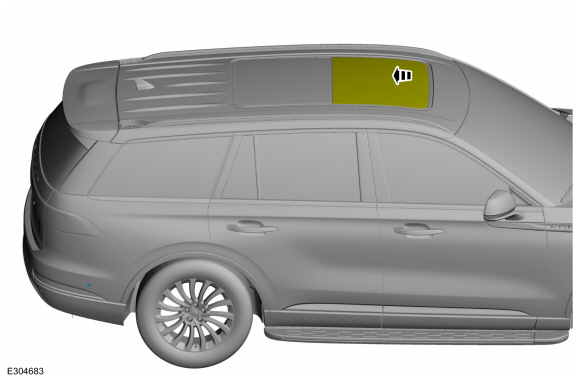

Place the roof opening panel glass in the fully OPEN position.
-
On both sides.
Unhook the spring.
-
On both sides.

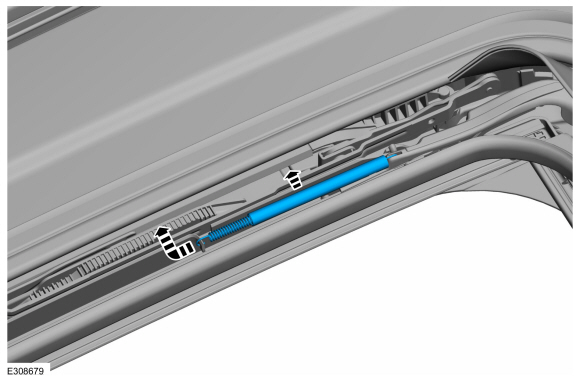

Unhook the spring and remove the tension spring.
-
On both sides.

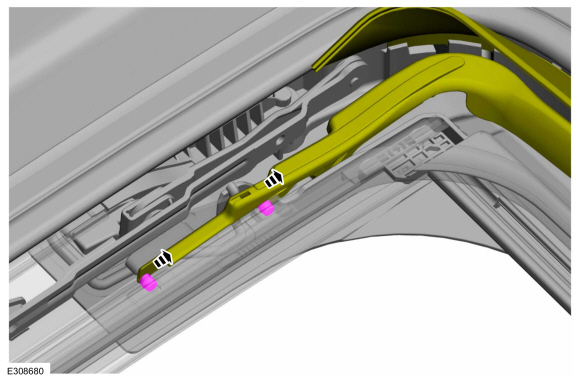

Slide the bow and tilt lever out of the guide rails.
-

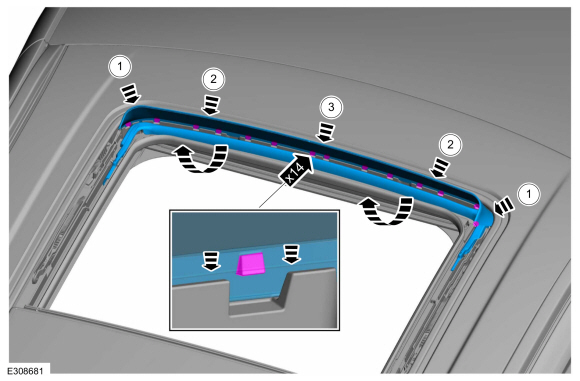

Starting form either of the corner and to the center
push downward on the air deflector material and separate the material
from the tabs. Remove the air deflector assembly.
Installation
-

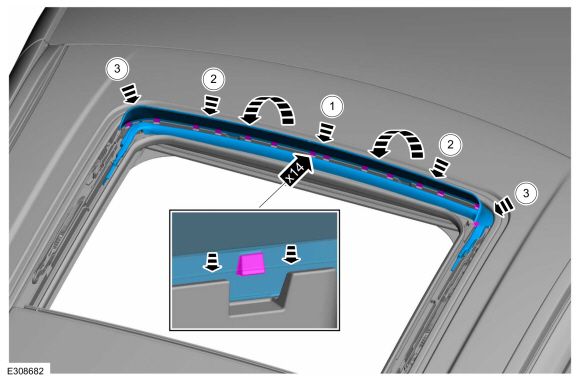

Install the air deflector assembly and start inserting
the air deflector material into the fabric slot starting form the center
locator to either ends.
-
On both sides.

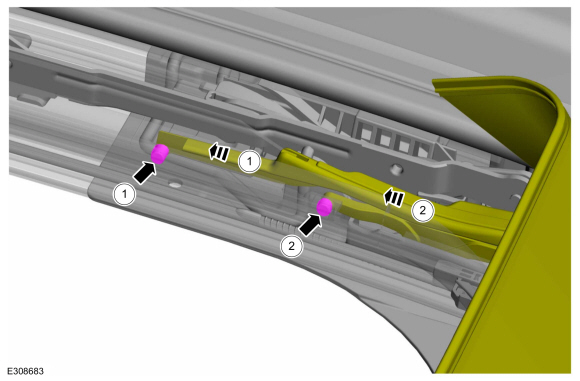

Slide the bow pin first and then the tilt lever pin second into the guide rail channels.
-
On both sides.

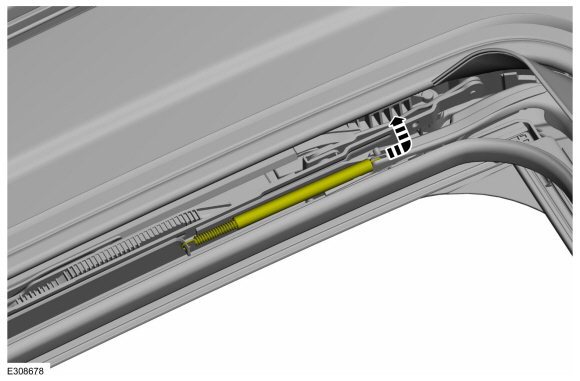

Hook the rear end of the spring on to the guide rails.
-
On both sides.

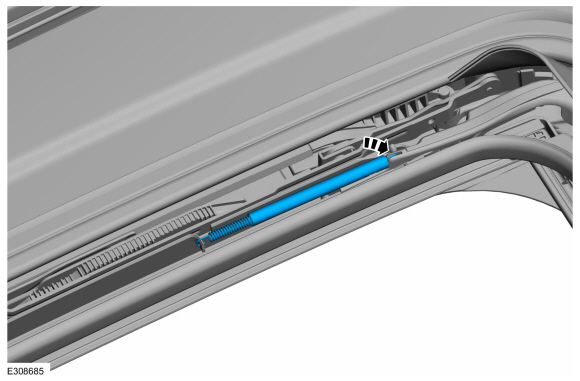

Hook the front end of the spring on to the bow.
-
Carry out the roof opening panel initialization.
Refer to: Power Roof Opening Panel Initialization (501-17 Roof Opening Panel, General Procedures).
