Lincoln Aviator: Normal Scheduled Maintenance / Normal Maintenance Intervals

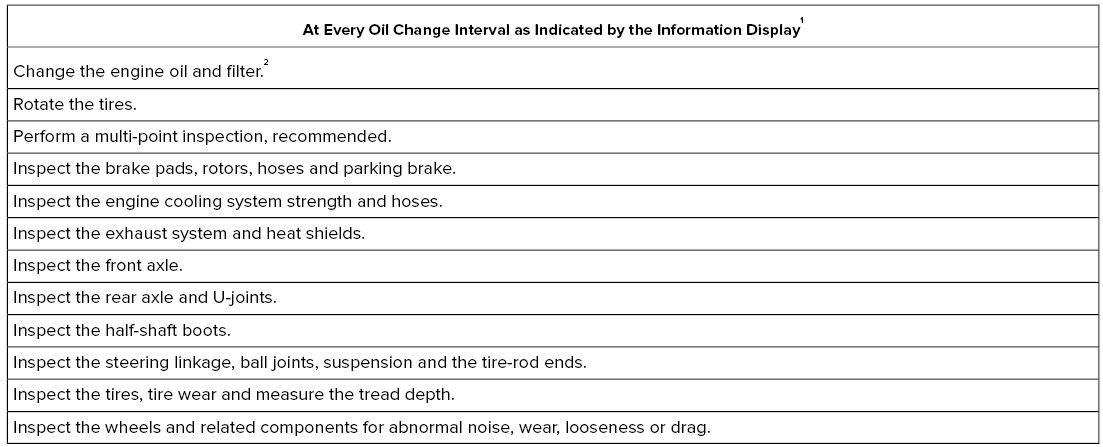

1 Do not exceed one year or 12,500 mi (20,000 km) between service intervals.
2 Reset the Intelligent Oil-Life Monitor after engine oil and filter changes.
1 Perform this maintenance item every 3 years. Do not exceed the designated
time for the interval.
2 Brake fluid servicing requires special equipment available at your
authorized dealer.
1 Perform these maintenance items within 3,000 mi (4,800 km) of the last
engine oil and filter change. Do not exceed the designated distance
for the interval.

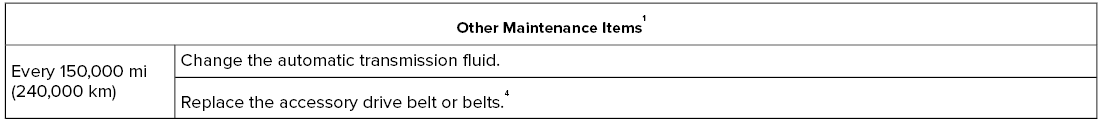

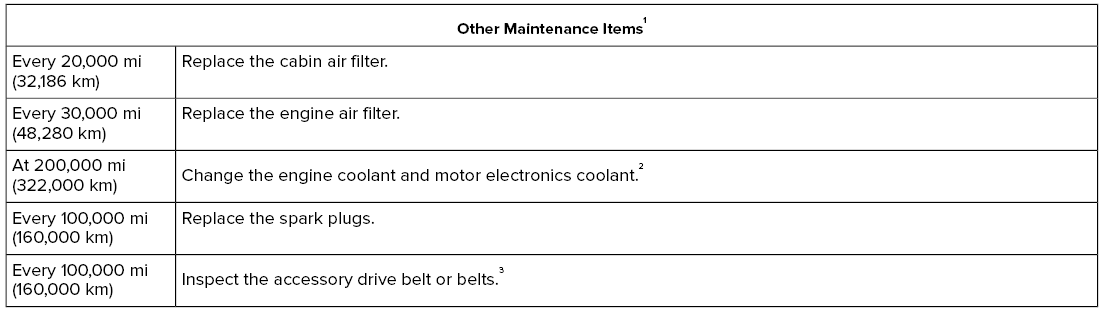

2 Initial replacement at 10 years or 200,000 mi (322,000 km), then every five
years or 100,000 mi (160,000 km).
3 After initial inspection, inspect every other oil change until replaced.
4 If not replaced within the last 100,000 mi (160,000 km).
Your vehicle has an Intelligent Oil-Life
Monitor that determines when you should
change the engine oil based on how you use
your vehicle. By using several important
factors in its calculations, the monitor helps
reduce the cost of owning your vehicle and
reduces environmental waste at the same
time...
If you operate your vehicle primarily in any
of the following conditions, you need to
perform extra maintenance as indicated. If
you operate your vehicle occasionally under
any of these conditions, it is not necessary
to perform the extra maintenance...
Other information:
Removal
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of
any type when working on or near any fuel-related component. Highly
flammable mixtures may be present and may be ignited. Failure to follow
these instructions may result in serious personal injury...
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
SCMJ
B11CE:11
Left Seat Left Motor Output:Circuit Short To Ground
GO to Pinpoint Test B
SCMJ
B11CE:13
Left Seat Left Motor Output:Circuit Open
GO to Pinpoint Test B
SCMJ
B11CE:15
Left Seat Left Motor Output:Circuit Short To Battery Or Open
GO to Pinpoint Test B
SCMJ
B1231:1C
Right Seat:Circuit Voltage Out Of Range
GO to Pinpoint Test C
SCMJ
B1231:54
Right Seat:Missing Calibration
GO to Pinpoint Test D
SCMJ
B1231:63
Right Seat:Circuit/Component Protection Time-Out
GO to Pinpoint Test C
SCMJ
B1231:99
Right Seat:Exceeded Learning Limit
GO to Pinpoint Test C
SCMJ
B1232:1C
Left Seat:Circuit Voltage Out Of Range
GO to Pinpoint Test B
SCMJ
B1232:54
Left Seat:Missing Calibration
GO to Pinpoint Test D
SCMJ
B1232:63
Left Seat:Circuit/Component Protection Time-Out
GO to Pinpoint Test B
SCMJ
B1232:99
Left Seat:Exceeded Learning Limit
GO to Pinpoint Test B
SCMJ
B1536:11
Left Seat Left Motor Speed/Position Sensor:Circuit Short To Ground
GO to Pinpoint Test B
SCMJ
B1536:12
Left Seat Left Motor Speed/Position Sensor:Circuit Short To Battery
GO to Pinpoint Test B
SCMJ
B154B:11
Third Row Seat Fold Switch:Circuit Short To Ground
GO to Pinpoint Test A
SCMJ
B154B:13
Third Row Seat Fold Switch:Circuit Open
GO to Pinpoint Test A
SCMJ
B154B:2A
Third Row Seat Fold Switch:Stuck in Range
GO to Pinpoint Test A
SCMJ
B154C:11
Right Seat Right Motor Speed/Position Sensor:Circuit Short To Ground
GO to Pinpoint Test C
SCMJ
B154C:12
Right Seat Right Motor Speed/Position Sensor:Circuit Short To Battery
GO to Pinpoint Test C
SCMJ
B154D:11
Right Seat Right Motor Output:Circuit Short To Ground
GO to Pinpoint Test C
SCMJ
B154D:13
Right Seat Right Motor Output:Circuit Open
GO to Pinpoint Test C
SCMJ
B154D:15
Right Seat Right Motor Output:Circuit Short To Battery Or Open
GO to Pinpoint Test C
SCMJ
U0100:87
Lost Communication With ECM/PCM "A":Missing Message
GO to Pinpoint Test E
SCMJ
U0140:87
Lost Communication With Body Control Module:Missing Message
GO to Pinpoint Test F
SCMJ
U1000:00
Solid State Driver Protection Active -Driver Disabled:No Sub Type Information
GO to Pinpoint Test G
SCMJ
U2100:00
Initial Configuration Not Complete:No Sub Type Information
GO to Pinpoint Test H
SCMJ
U3000:49
Control Module:Internal Electronic Failure
GO to Pinpoint Test I
SCMJ
U3003:17
Battery Voltage:Circuit Voltage Above Threshold
GO to Pinpoint Test J
Symptom Chart(s)
Symptom Chart: Third Row Seats
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
