Lincoln Aviator: Engine - 3.0L EcoBoost / General Procedures - Engine Oil Draining and Filling
Special Tool(s) /
General Equipment
Draining
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-
NOTE:
Use a shop towel when removing the oil filter
housing to prevent oil from spilling on the engine or accessory
components.
-

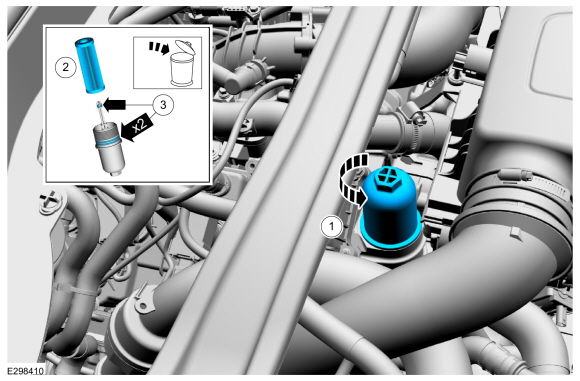

Loosen the oil filter housing and allow the oil to drain out of the housing and down into the engine.
-
Remove the oil filter housing and discard the oil filter element.
-

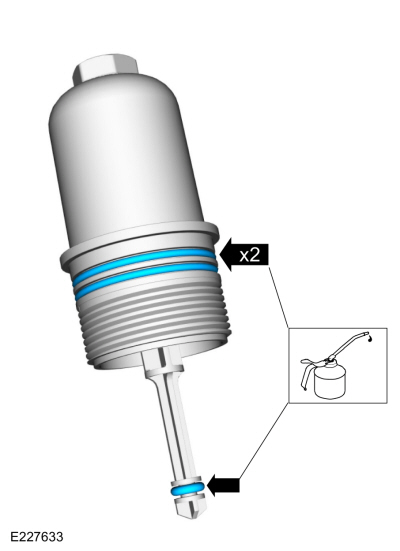

Remove and discard the O-ring seals.
-

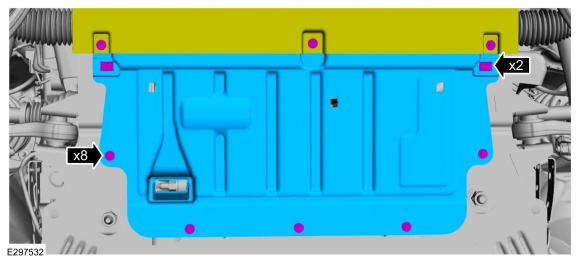

Remove the fasteners and the underbody shield.
-
NOTE:
The drain plug should be removed and installed by hand, do not use tools.
-

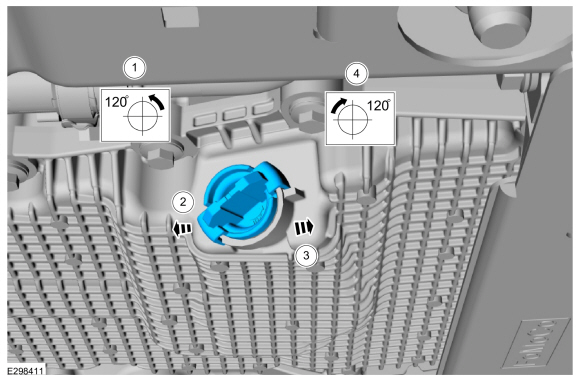

Turn the oil drain plug by hand counterclockwise 120 degrees.
Use the General Equipment: Oil Drain Equipment
-
Pull the oil drain plug out of the oil pan.
-
After the oil has drained, push the oil drain plug into the oil pan.
-
NOTICE:
Overtightening will damage the oil drain plug and possibly the oil pan.
Turn the oil drain plug by hand clockwise 120 degrees.
Filling
-
Install the underbody shield and the fasteners.
Torque:
22 lb.in (2.5 Nm)
-
NOTE:
If the filter housing stem is damaged or missing the oil will flow through the reservoir drain port and a loss of engine oil pressure will occur.

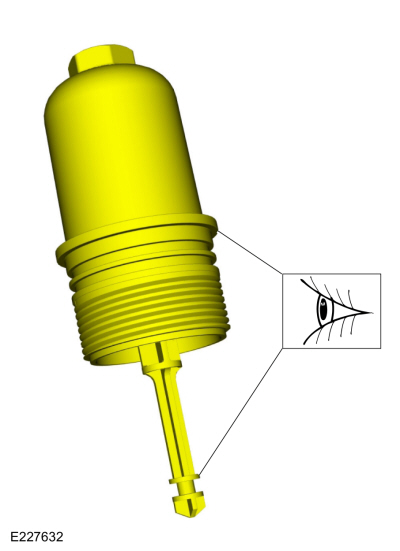

Inspect the oil filter housing and stem for damage
including cracks or separation of the stem from the housing. If damaged,
a new oil filter housing assembly must be installed.
-
-
-

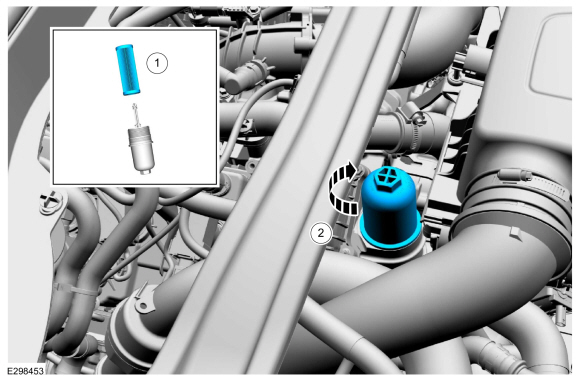

Install a new oil filter element.
-
Install the oil filter housing.
Torque:
18 lb.ft (24 Nm)
-

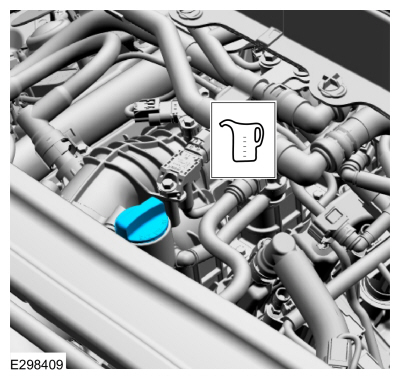

Fill the engine with clean engine oil.
Refer to: Specifications (303-01A Engine - 3.0L EcoBoost, Specifications).
