Lincoln Aviator 2020-2024 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Description and Operation - Transmission Description
Lincoln Aviator: Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Description and Operation - Transmission Description

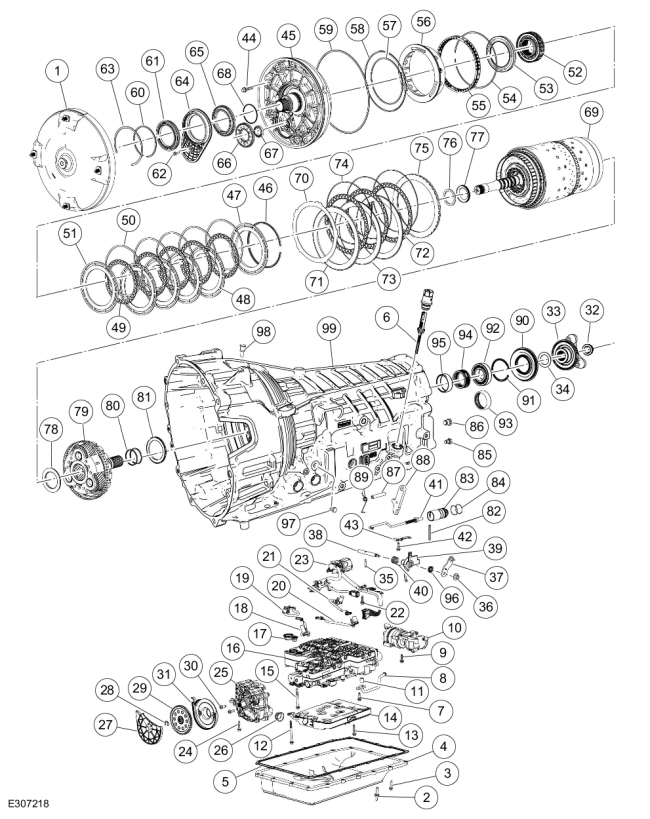

Transmission Assembly
.jpg)
| Item | Part Number | Description |
|---|---|---|
| 1 | 79027902 | Torque converter |
| 2 | W714629W714629 | Transmission fluid pan stud bolts (6 required) |
| 3 | W500215W500215 | Transmission fluid pan bolts (12 required) |
| 4 | 7A1947A194 | Transmission fluid pan |
| 5 | 7A1917A191 | Transmission fluid pan gasket |
| 6 | 7E3897E389 | Transmission fluid level indicator and plug assembly |
| 7 | W708500W708500 | Transmission fluid auxiliary pump tube bolt (model dependent) |
| 8 | 7A2097A209 | Transmission fluid auxiliary pump tube (model dependent) |
| 9 | W718548W718548 | Transmission fluid auxiliary pump bolts (3 required) (model dependent) |
| 10 | 7P0867P086 | Transmission fluid auxiliary pump (model dependent) |
| 11 | 7J1357J135 | Transmission fluid auxiliary pump tube seal (model dependent) |
| 12 | W700123W700123 | Transmission fluid filter bolt (71 mm length) |
| 13 | W500214W500214 | Transmission fluid filter bolt (20 mm length) |
| 14 | 7G1867G186 | Transmission fluid filter |
| 15 | W708500W708500 | Main control-to-transmission case bolts (68 mm length) (8 required) |
| 16 | 7A1007A100 | Main control assembly |
| 17 | 7N2657N265 | Main control-to-transmission fluid pump seal |
| 18 | 7M1837M183 | Intermediate Speed A (ISSA) sensor |
| 19 | 7M1017M101 | Turbine Shaft Speed (TSS) sensor |
| 20 | 7H1037H103 | Intermediate Speed B (ISSB) sensor |
| 21 | 7H1037H103 | Output Shaft Speed (OSS) sensor |
| 22 | W500213W500213 | Transmission internal wiring harness bolts (2 required) |
| 23 | 7G2767G276 | Transmission internal wiring harness |
| 24 | W500215W500215 | Transmission fluid pump bolts (4 required) |
| 25 | 7A1037A103 | Transmission fluid pump |
| 26 | 7Z3027Z302 | Transmission fluid pump seal |
| 27 | 66586658 | Transmission fluid pump driven gear outer cover |
| 28 | W718158W718158 | Transmission fluid pump retaining ring |
| 29 | 7A0807A080 | Transmission fluid pump driven gear |
| 30 | W504755W504755 | Transmission fluid pump driven gear inner cover bolts (2 required) |
| 31 | 66586658 | Transmission fluid pump driven gear inner cover |
| 32 | 7K4407K440 | Output shaft flange nut (RWD only) |
| 33 | 7A0217A021 | Output shaft flange (RWD only) |
| 34 | 7N1357N135 | Anti-ting washer (RWD only) |
| 35 | 7G1007G100 | Manual control shaft-to-Transmission Range (TR) sensor roll pin |
| 36 | W712713W712713-S442-S442 | Park override lever nut |
| 37 | 7J1677J167 | Park override lever |
| 38 | 7C4937C493 | Manual control shaft |
| 39 | 7H5577H557 | Transmission Range (TR) sensor |
| 40 | 7L2527L252 | Park return spring |
| 41 | 7D4107D410 | Park pawl actuator rod |
| 42 | W716607W716607 | Transmission Range (TR) sensor detent spring bolt |
| 43 | 7E3327E332 | Transmission Range (TR) sensor detent spring |
| 44 | 7N1347N134 | Front support assembly bolts (12 required) |
| 45 | 7G0337G033 | Front support assembly |
| 46 | 7M1577M157-C-C | B clutch (overdrive) snap ring |
| 47 | 7C5767C576 | B clutch (overdrive) pressure plate |
| 48 | 7B4427B442-A-A | B clutch (overdrive) steel plates (quantity model dependent) |
| 49 | 7B1647B164 | B clutch (overdrive) friction plates (quantity model dependent) |
| 50 | 7J4027J402 | B clutch (overdrive) separating springs (quantity model dependent) |
| 51 | 7B4427B442-B-B | B clutch (overdrive) apply plate |
| 52 | 7G2067G206 | One-Way Clutch (OWC) |
| 53 | 7G4187G418 | B clutch (overdrive) piston |
| 54 | 7N1697N169 | A clutch (intermediate) piston return spring snap ring |
| 55 | 7G2977G297 | A clutch (intermediate) piston return spring |
| 56 | 7J0157J015 | A clutch (intermediate) piston |
| 57 | 7F2257F225 | A clutch (intermediate) piston inner seal |
| 58 | 7F2247F224 | A clutch (intermediate) piston outer seal |
| 59 | 7B0317B031 | Front support-to-case seal |
| 60 | 7M1577M157-J-J | Torque converter hub seal snap ring |
| 61 | 7A2487A248 | Torque converter hub seal |
| 62 | W500204W500204 | Front support cover and seal assembly bolt |
| 63 | 7M1577M157 | Front support cover and seal assembly snap ring |
| 64 | 75707570 | Front support cover and seal assembly |
| 65 | 7F0737F073 | Transmission fluid pump drive gear |
| 66 | 66516651 | Transmission fluid pump idler gear |
| 67 | 7Z4267Z426 | Transmission fluid pump idler gear bearing |
| 68 | 7G0907G090 | Stator support seal |
| 69 | — | Clutch and planetary assembly |
| 70 | 7P0807P080 | A clutch (intermediate) wave spring |
| 71 | 7A4067A406 | A clutch (intermediate) apply plate (select fit) |
| 72 | 7F2197F219 | A clutch (intermediate) friction plates (quantity model dependent) |
| 73 | 7F2207F220 | A clutch (intermediate) steel plates (quantity model dependent) |
| 74 | 7G1597G159 | A clutch (intermediate) separating springs (quantity model dependent) |
| 75 | 7B4377B437 | A clutch (intermediate) pressure plate |
| 76 | 7J3007J300 | Selective shim |
| 77 | 7H0327H032 | Thrust bearing (T3) |
| 78 | 7M1527M152-A-A | Thrust bearing (T9) |
| 79 | 7A0497A049 | Output shaft and planetary carrier No. 4 assembly (model dependent) |
| 80 | 7D0197D019 | Output shaft seals (2 required) |
| 81 | 7D1467D146 | Thrust bearing (T10) |
| 82 | 7G1007G100 | Park pawl actuator rod sleeve roll pin |
| 83 | 2N6132N613 | Park pawl actuator rod sleeve |
| 84 | 2D3302D330 | Park pawl actuator rod sleeve seals (2 required) |
| 85 | W715937W715937 | Plug assembly transmission case |
| 86 | W716240W716240 | Plug assembly park pawl shaft |
| 87 | 7D0717D071 | Park pawl shaft |
| 88 | 7A4417A441 | Park pawl |
| 89 | 7D0707D070 | Park pawl return spring |
| 90 | 70527052 | Output shaft seal (model dependent) |
| 91 | 70307030 | Output shaft ball bearing snap ring (RWD only) |
| 92 | 7R2057R205 | Output shaft ball bearing (RWD only) |
| 93 | 7A4157A415 | Output shaft bearing (4WD) |
| 94 | 7B3147B314 | Fluid passage sleeve |
| 95 | 7A4157A415 | Output shaft bearing |
| 96 | 7F3377F337 | Manual control shaft seal |
| 97 | W715937W715937 | Plug (line pressure tap) |
| 98 | 7G0637G063 | Transmission case vent assembly |
| 99 | 70067006 | Transmission case |

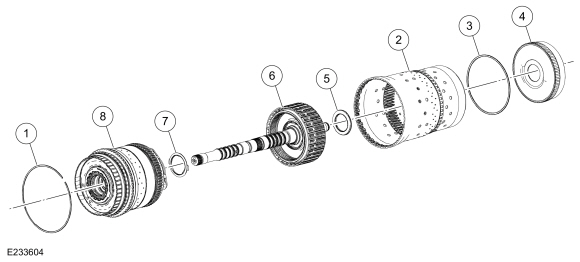

Clutch and planetary assembly
.jpg)
| Item | Part Number | Description |
|---|---|---|
| 1 | 7H5797H579 | Planetary carrier No.1 snap ring |
| 2 | 7B1777B177 | Cylinder (clutch and planetary container) |
| 3 | 7B0027B002 | Ring gear No. 4 snap ring |
| 4 | 7D1637D163 | Ring gear No. 4 |
| 5 | 7M1527M152 | Thrust bearing (T8) |
| 6 | — | E clutch and input shaft assembly |
| 7 | 7F3737F373 | Thrust bearing (T6) |
| 8 | — | CDF clutch and planetary carrier assembly |

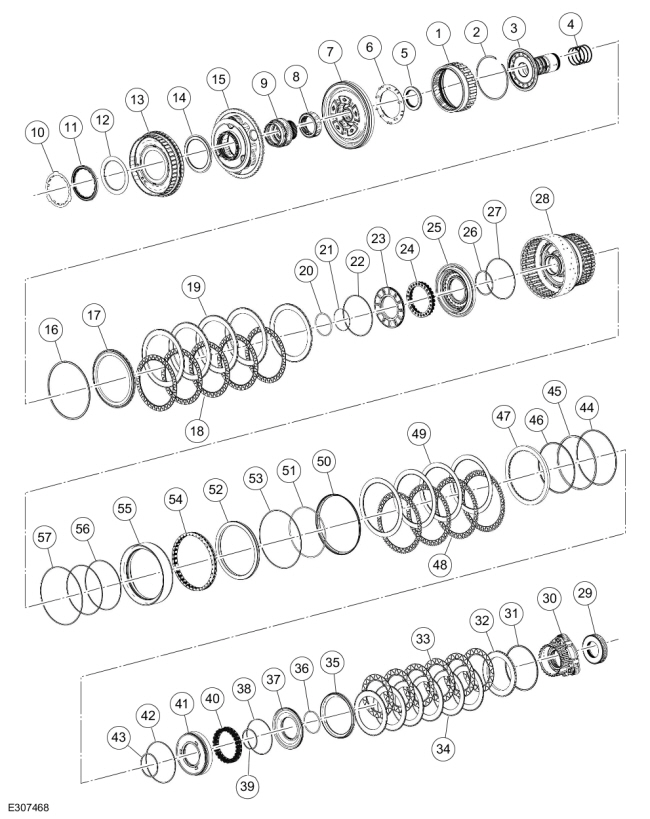

CDF Clutch and planetary carrier assembly
.jpg)
| Item | Part Number | Description |
|---|---|---|
| 1 | 7D3927D392 | Ring gear No. 2 |
| 2 | 7H3797H379 | Ring gear No. 2 snap ring |
| 3 | 7D1597D159 | Shaft (sun gear No 3) |
| 4 | 7B3997B399 | Shaft (sun gear No 3) Teflon® seals (4 required) |
| 5 | 7D2837D283 | Thrust bearing (T5) |
| 6 | 7H5787H578 | Fluid collector |
| 7 | 7A3987A398 | Planetary carrier No. 2 |
| 8 | 7H5807H580 | Sun gear No. 2 |
| 9 | 7G2307G230 | Sun gear No. 1 |
| 10 | 11951195 | Ring gear No. 1 bearing support locking ring |
| 11 | 7P0747P074 | Ring gear No. 1 bearing support |
| 12 | 7C0967C096 | Ring gear No. 1 bearing |
| 13 | 7P1367P136 | Ring gear No. 1 |
| 14 | 7C0967C096 | Ring gear No. 1 bearing |
| 15 | 7G2187G218 | Planetary carrier No. 1 |
| 16 | 7H0767H076 | C clutch (direct) snap ring |
| 17 | 7B4777B477 | C clutch (direct) pressure plate |
| 18 | 7H0957H095 | C clutch (direct) friction plates (quantity model dependent) |
| 19 | 7F2387F238 | C clutch (direct) steel plates (quantity model dependent) |
| 20 | 7B4927B492 | C clutch (direct) balance dam retainer |
| 21 | 7F2347F234 | C clutch (direct) balance dam inner seal |
| 22 | 7C0007C000 | C clutch (direct) balance dam outer seal |
| 23 | 7H3597H359 | C clutch (direct) balance dam |
| 24 | 7B4887B488 | C clutch (direct) piston return spring |
| 25 | 7C1177C117 | C clutch (direct) piston |
| 26 | 7G4447G444 | C clutch (direct) piston inner seal |
| 27 | 7C0007C000 | C clutch (direct) piston outer seal |
| 28 | 7P1827P182 | CDF clutch cylinder |
| 29 | 7D0637D063 | Sun gear No. 3 |
| 30 | 7D0067D006 | Planetary carrier No. 3 |
| 31 | 7B4217B421 | D clutch (low) snap ring |
| 32 | 7G4867G486 | D clutch (low) pressure plate |
| 33 | 7E3127E312 | D clutch (low) friction plates (quantity model dependent) |
| 34 | 7G4747G474 | D clutch (low) steel plates (quantity model dependent) |
| 35 | 7P1767P176 | D clutch (low) apply ring |
| 36 | 7B4927B492 | D clutch (low) balance dam retainer |
| 37 | 7D3437D343 | D clutch (low) balance dam |
| 38 | 7G4457G445 | D clutch (low) balance dam outer seal |
| 39 | 7F2347F234 | D clutch (low) balance dam inner seal |
| 40 | 7D4057D405 | D clutch (low) piston return spring |
| 41 | 7D4027D402 | D clutch (low) piston |
| 42 | 7G4457G445 | D clutch (low) piston outer seal |
| 43 | 7G4447G444 | D clutch (low) piston inner seal |
| 44 | 7P2007P200 | F clutch (high) keeper snap ring |
| 45 | 7H3187H318 | F clutch (high) snap ring keeper |
| 46 | 7P1747P174 | F clutch (high) snap ring |
| 47 | 7A4507A450 | F clutch (high) pressure plate |
| 48 | 7E3137E313 | F clutch (high) friction plates (quantity model dependent) |
| 49 | 7E3167E316 | F clutch (high) steel plates (quantity model dependent) |
| 50 | 7P1757P175 | F clutch (high) apply ring |
| 51 | 7P1727P172 | F clutch (high) balance dam retainer |
| 52 | 7P1717P171 | F clutch (high) balance dam |
| 53 | 7A5907A590 | F clutch (high) balance dam outer seal |
| 54 | 7C2957C295 | F clutch (high) piston return spring |
| 55 | 7R2477R247 | F clutch (high) piston |
| 56 | 7A5907A590-B-B | F clutch (high) piston and balance dam seals (2 required) |
| 57 | 7A5907A590-A-A | F clutch (high) piston seal |

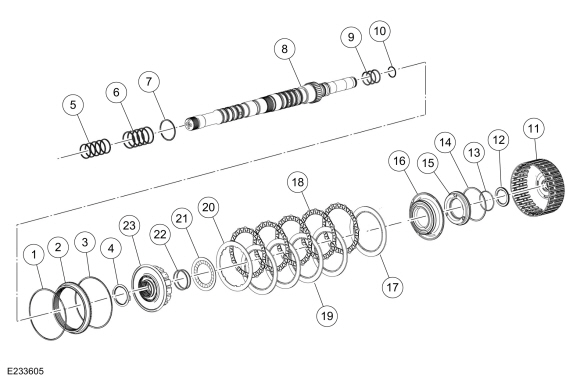

E Clutch and input shaft assembly
.jpg)
| Item | Part Number | Description |
|---|---|---|
| 1 | 7H3617H361 | Ring gear No. 3 outer snap ring |
| 2 | 7H0537H053 | Ring gear No. 3 |
| 3 | 7H3617H361 | Ring gear No. 3 inner snap ring |
| 4 | 7F3737F373 | Thrust bearing (T6) |
| 5 | 7G0917G091-A-A | Input shaft front Teflon® seals (5 required) |
| 6 | 7G0917G091-B-B | Input shaft-to-sun gear No 3 shaft Teflon® seals (5 required) |
| 7 | 7J4107J410 | Input shaft snap ring |
| 8 | 70157015 | Input shaft |
| 9 | 7G2427G242 | Input shaft D-ring seals (3 required) |
| 10 | 7G0917G091 | Input shaft Teflon® seal |
| 11 | 7D0627D062 | Shell and sun gear No. 4 |
| 12 | 7G0087G008 | Thrust bearing (T7) |
| 13 | 7H3657H365 | E clutch (forward) balance dam retainer |
| 14 | 7F2277F227 | E clutch (forward) balance dam outer seal |
| 15 | 7P1697P169 | E clutch (forward) balance dam |
| 16 | 7A2627A262 | E clutch (forward) piston |
| 17 | 7B0667B066 | E clutch (forward) apply plate (2.9-3.0 mm) |
| 18 | 7H0917H091 | E clutch (forward) friction plates (quantity model dependent) |
| 19 | 7H0897H089 | E clutch (forward) steel plates (quantity model dependent) |
| 20 | 7B0667B066 | E clutch (forward) pressure plate (select fit) |
| 21 | 7B0707B070 | E clutch (forward) piston return spring |
| 22 | 7G2427G242 | E clutch (forward) piston and balance dam inner seals (2 required) |
| 23 | 7P2117P211 | E clutch (forward) hub |

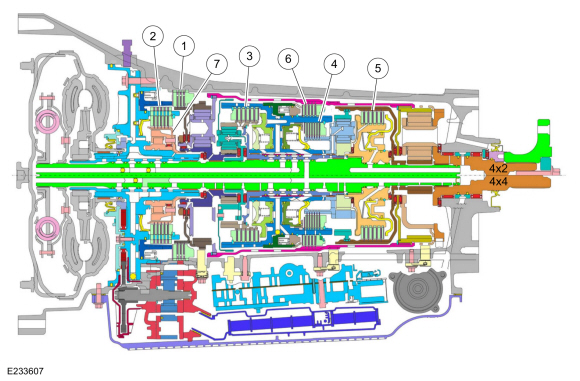

Component Location
.jpg)
| Item | Part Number | Description |
|---|---|---|
| 1 | — | A clutch assembly |
| 2 | — | B clutch assembly |
| 3 | — | C clutch assembly |
| 4 | — | D clutch assembly |
| 5 | — | E clutch assembly |
| 6 | — | F clutch assembly |
| 7 | — | One-Way Clutch (OWC) |
Description and Operation - Transmission Description - Overview
Overview
The
10R60 automatic transmission is a 10-speed electronically controlled
transmission with a main control valve body unit with 8 solenoids and a
torque converter...
Description and Operation - Transmission Description - System Operation and Component Description
System Diagram
Item
Description
1
SSB
2
SSC
3
SSD
4
SSE
5
SSF
6
LPC
7
TSS
8
ISSB
9
Transmission
10
Transmission
11
TFT
12
TRS
13
SSA
14
PCM
15
TCC
16
OSS
17
ISSA
18
GSM
19
PBW
Network Message Chart
Broadcast Message
Originating Module
Message Purpose
Engine Speed
PCM
Directly affects shift scheduling, TCC control, line pressure and transmission diagnostics...
Other information:
Lincoln Aviator 2020-2024 Service Manual: Removal and Installation - Rear Active Park Assist Sensors
Removal NOTE: RH side shown, LH side similar. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation). Remove the rear wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation)...
Lincoln Aviator 2020-2024 Service Manual: Description and Operation - Front Drive Axle and Differential
The 6.5-inch ring gear rear differential axle has 3.31, 3.58 and 3.73 gear ratio versions. Front Drive Axle and Differential The front drive axle consists of: A cast-aluminum center section, a removable cast-aluminum differential housing cover Integral-type housing hypoid gear design (center of the pinion set below the centerline of the ring gear)...
Categories
- Manuals Home
- Lincoln Aviator Owners Manual
- Lincoln Aviator Service Manual
- Resetting the System
- Refueling
- Garage Door Opener
- New on site
- Most important about car
Emergency Locking
Each door has a backup power system which allows the door to function if your vehicle has no power. The system has a limited number of operations before the power is depleted and turns off. When the system turns off, the door remains open and unlatched and does not close.
If your vehicle has no power and the backup power system is turned off, you can close and secure your vehicle by manually resetting each door latch using a key in the position shown.
Copyright © 2024 www.liaviator2.com
