Lincoln Aviator: Entertainment / AM/FM Radio
Tuning a Station
You can use the tune or seek controls on the
radio bezel to select a station.
To tune a station using the touchscreen,
select:

A pop up appears, allowing you to type in
the frequency of a station. You can only enter
a valid station for the source you are
currently listening to.
You can press the backspace button to
delete the previously entered number.

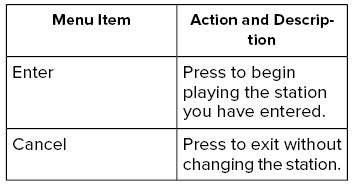

Once you have entered the station's call
numbers, you can select:

Presets
To set a new preset, tune to the station and
then press and hold one of the memory
preset buttons. The audio mutes briefly while
the system saves the station and then
returns.
You may be able to add additional preset
pages using the settings option on the
feature bar.
Note: This feature may not be available in
all markets and requires an active
subscription.
SiriusXM satellite radio is a
subscription-based satellite radio service that
broadcasts a variety of music, sports, news,
weather, traffic and entertainment
programming...
Other information:
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
BCM
B1175:01
Driver Door Ajar Switch:General Electrical Failure
If the courtesy lamps are inoperative, GO to Pinpoint Test A
BCM
B1175:01
Driver Door Ajar Switch:General Electrical Failure
If the courtesy lamps are always on, GO to Pinpoint Test C
BCM
B1176:01
Passenger Door Ajar Switch:General Electrical Failure
If the courtesy lamps are inoperative, GO to Pinpoint Test A
BCM
B1176:01
Passenger Door Ajar Switch:General Electrical Failure
If the courtesy lamps are always on, GO to Pinpoint Test C
BCM
B11C0:01
Driver Side Rear Door Ajar Switch:General Electrical Failure
If the courtesy lamps are inoperative, GO to Pinpoint Test A
BCM
B11C0:01
Driver Side Rear Door Ajar Switch:General Electrical Failure
If the courtesy lamps are always on, GO to Pinpoint Test C
BCM
B11C1:01
Passenger Side Rear Door Ajar Switch:General Electrical Failure
If the courtesy lamps are inoperative, GO to Pinpoint Test A
BCM
B11C1:01
Passenger Side Rear Door Ajar Switch:General Electrical Failure
If the courtesy lamps are always on, GO to Pinpoint Test C
BCM
B12C2:11
Puddle Lamp:Circuit Short To Ground
GO to Pinpoint Test H
BCM
B12C2:15
Puddle Lamp:Circuit Short To Battery or Open
GO to Pinpoint Test H
BCM
B1306:01
Liftgate Ajar Switch:General Electrical Failure
GO to Pinpoint Test K
BCM
B1306:11
Liftgate Ajar Switch:Circuit Short To Ground
GO to Pinpoint Test K
BCM
B1313:11
Interior Lighting Output:Circuit Short To Ground
GO to Pinpoint Test B
BCM
B1313:15
Interior Lighting Output:Circuit Short To Battery or Open
If the courtesy lamps are always on, GO to Pinpoint Test B
BCM
B1313:15
Interior Lighting Output:Circuit Short To Battery or Open
If the courtesy lamps are always on, GO to Pinpoint Test D
BCM
B145C:11
Ambient Lighting Power Supply Output:Circuit Short To Ground
GO to Pinpoint Test I
BCM
B145C:15
Ambient Lighting Power Supply Output:Circuit Short To Battery or Open
GO to Pinpoint Test I
BCM
B1465:00
Ambient Lighting Bus 1:No Sub Type Information
If all the ambient lighting is inoperative, always on or does not change color/intensity, GO to Pinpoint Test I
BCM
B1465:00
Ambient Lighting Bus 1:No Sub Type Information
If one or more of the ambient lighting Light
Emitting Diodes (LEDs) are inoperative or do not change
color/intensity, GO to Pinpoint Test J
BCM
B1465:96
Ambient Lighting Bus 1:Component Internal Failure
If all the ambient lighting is inoperative, always on or does not change color/intensity, GO to Pinpoint Test I
BCM
B1465:96
Ambient Lighting Bus 1:Component Internal Failure
If one or more of the ambient lighting Light
Emitting Diodes (LEDs) are inoperative or do not change
color/intensity, GO to Pinpoint Test J
BCM
B1467:00
Ambient Lighting Bus 3:No Sub Type Information
If all the ambient lighting is inoperative, always on or does not change color/intensity, GO to Pinpoint Test I
BCM
B1467:00
Ambient Lighting Bus 3:No Sub Type Information
If one or more of the ambient lighting Light
Emitting Diodes (LEDs) are inoperative or do not change
color/intensity, GO to Pinpoint Test J
BCM
B1467:96
Ambient Lighting Bus 3:Component Internal Failure
If all the ambient lighting is inoperative, always on or does not change color/intensity, GO to Pinpoint Test I
BCM
B1467:96
Ambient Lighting Bus 3:Component Internal Failure
If one or more of the ambient lighting Light
Emitting Diodes (LEDs) are inoperative or do not change
color/intensity, GO to Pinpoint Test J
BCM
B14AA:11
Demand Lamp Output:Circuit Short To Ground
GO to Pinpoint Test E
BCM
B14AA:15
Demand Lamp Output:Circuit Short To Battery or Open
GO to Pinpoint Test E
BCM
B153C:11
Color Ambient Light Output:Circuit Short To Ground
GO to Pinpoint Test I
BCM
B153C:15
Color Ambient Light Output:Circuit Short To Battery or Open
GO to Pinpoint Test I
DCME
B1175:19
Drivers Door Ajar Switch:Circuit Current Above Threshold
GO to Pinpoint Test C
DCMF
B1176:19
Passenger Door Ajar Switch:Circuit Current Above Threshold
GO to Pinpoint Test C
DCMG
B11C0:19
Driver Side Rear Door Ajar Switch:Circuit Current Above Threshold
GO to Pinpoint Test C
DCMH
B11C1:19
Passenger Side Rear Door Ajar Switch:Circuit Current Above Threshold
GO to Pinpoint Test C
DDM
B1165:11
Left Front Puddle Lamp Output:Circuit Short To Ground
GO to Pinpoint Test G
DDM
B1165:15
Left Front Puddle Lamp Output:Circuit Short To Battery Or Open
GO to Pinpoint Test G
PDM
B1166:11
Right Front Puddle Lamp Output:Circuit Short To Ground
GO to Pinpoint Test G
PDM
B1166:15
Right Front Puddle Lamp Output:Circuit Short To Battery Or Open
GO to Pinpoint Test G
RGTM
B1306:12
Liftgate Ajar Switch:Circuit Short To Battery
GO to Pinpoint Test C
