Lincoln Aviator: Wipers and Washers / Windshield Wipers - Vehicles With: Heated Wiper Blades. Autowipers
Windshield Wipers - Vehicles With: Heated Wiper Blades
Heated Wiper Blade
The heated wiper blades turn on in low
temperature when the windshield wipers are
active or defrost is on.
Note: In below freezing temperatures, the
heated wiper blades turn on when the wipers
are inactive.
Autowipers
Wet or winter driving conditions with ice,
snow or salty road mist can cause
inconsistent and unexpected wiping or
smearing.

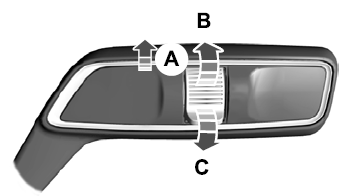

- Autowipers On.
- High sensitivity.
- Low sensitivity.
Use the rotary control to adjust
the
sensitivity of the autowipers.
When you select low sensitivity, the wipers
operate when the sensor detects a large
amount of water on the windshield. When
you select high sensitivity, the wipers
operate when the sensor detects a small
amount of water on the windshield.
Keep the outside of the windshield clean.
The rain sensor is very sensitive and the
wipers may operate if dirt, mist or insects hit
the windshield.
In these conditions, you can do the following:
- Lower the sensitivity of the autowipers
to reduce the amount of smearing on the
windshield.
- Switch to normal or high-speed wipe.
- Switch autowipers off.
Note: Fully defrost the windshield before you
switch the windshield wipers on.
Note: Make sure that you switch the
windshield wipers off before entering a car
wash.
Note: If streaks or smears appear on the
windshield, clean the windshield and the
wiper blades. If that does not resolve the
issue, install new wiper blades.
Note: If you switch autolamps and
autowipers on, the headlamps turn on when
the windshield wipers continuously operate.
Autowipers Settings
This setting defaults to on and remains on
until you switch it off in the touchscreen.
When you switch the feature off, the wipers
do not operate based on the rain sensor.
When you switch on the windshield wipers
to the intermittent wipe position with the
feature off, the wipers use the wipe speed
set by the rotary control.
Low Temperature Wipe Inhibit
The rain sensing feature will not operate
immediately after starting your vehicle when
it is in park (P) and the outside temperature
is below 32°F (0°C). You can switch on the
wipers by adjusting the rain sensor sensitivity
or adjusting the wiper speed.
This prevents damage to the wiper blades
from ice and snow on the windshield.
Push the lever up or down to
operate the windshield wiper.
Single wipe.
Intermittent wipe.
Normal wipe.
High-speed wipe.
Note: Fully defrost the windshield before you
switch the windshield wipers on...
Pull the lever toward you to
operate the windshield washers.
When you release the lever, the wipers
operate for a short time. When activated, a
courtesy wipe occurs a short time after the
wipers stop to clear any remaining washer
fluid...
Other information:
Check
NOTE:
Wheel-to-hub optimization is important. Clearance between
the wheel and hub can be used to offset or neutralize the Road Force® or
run-out of the wheel and tire assembly. For every 0.001 inch of
wheel-to-hub clearance, the Road Force® can be affected between 1 and 3
pounds depending on the tire stiffness...
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
BCM
B10F3:11
Left Front Position Light:Circuit Short to Ground
GO to Pinpoint Test D
BCM
B10F3:15
Left Front Position Light:Circuit Short to Battery or Open
GO to Pinpoint Test D
BCM
B10F4:11
Right Front Position Light:Circuit Short to Ground
GO to Pinpoint Test D
BCM
B10F4:15
Right Front Position Light:Circuit Short to Battery or Open
GO to Pinpoint Test D
BCM
B1445:11
Rear Park Lamps Output:Circuit Short to Ground
GO to Pinpoint Test D
BCM
B1445:15
Rear Park Lamps Output:Circuit Short to Battery or Open
GO to Pinpoint Test D
BCM
B149E:11
Left Front Position/Sidemarker:Circuit Short To Ground
GO to Pinpoint Test D
BCM
B149E:15
Left Front Position/Sidemarker:Circuit Short To Battery or Open
GO to Pinpoint Test D
BCM
B149F:11
Right Front Position/Sidemarker:Circuit Short To Ground
GO to Pinpoint Test D
BCM
B149F:15
Right Front Position/Sidemarker:Circuit Short To Battery or Open
GO to Pinpoint Test D
BCM
B14A2:11
Tailgate/Liftgate Applique Lamps:Circuit Short To Ground
GO to Pinpoint Test D
BCM
B14A2:15
Tailgate/Liftgate Applique Lamps:Circuit Short To Battery or Open
GO to Pinpoint Test D
BCM
B14B2:11
Left Position Lamps:Circuit Short To Ground
GO to Pinpoint Test D
BCM
B14B2:15
Left Position Lamps:Circuit Short To Battery or Open
GO to Pinpoint Test D
BCM
B14B3:11
Right Position Lamps:Circuit Short To Ground
GO to Pinpoint Test D
BCM
B14B3:15
Right Position Lamps:Circuit Short To Battery or Open
GO to Pinpoint Test D
BCM
B14E4:01
Extra Enhanced Exterior Lighting System:General Electrical Failure
GO to Pinpoint Test E
BCM
B14E4:08
Extra Enhanced Exterior Lighting System:Bus Signal / Message Failure
GO to Pinpoint Test E
BCM
B14E4:1C
Extra Enhanced Exterior Lighting System:Circuit Voltage Out of Range
GO to Pinpoint Test E
BCM
B14E4:49
Extra Enhanced Exterior Lighting System:Internal Electronic Failure
GO to Pinpoint Test E
BCM
B14E4:55
Extra Enhanced Exterior Lighting System:Not Configured
GO to Pinpoint Test E
BCM
B14E4:61
Extra Enhanced Exterior Lighting System:Signal Calculation Failure
GO to Pinpoint Test E
Symptom Charts
Symptom Chart: Parking, Rear and License Plate Lamps
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
