Lincoln Aviator: Wipers and Washers / Removal and Installation - Windshield Washer Fluid Level Sensor
Special Tool(s) /
General Equipment
Fluid Suction Gun |
Fluid Container |
Materials
Name |
Specification |
Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 |
WSS-M14P19-A
|
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Siphon the windshield washer fluid out.
-

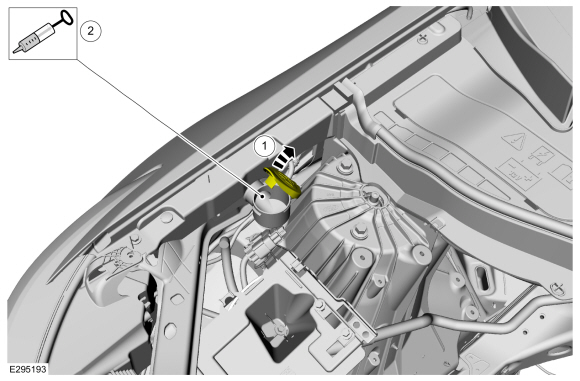

Open the windshield washer fluid reservoir cap.
-
Siphon the windshield washer fluid.
Use the General Equipment: Fluid Suction Gun
Use the General Equipment: Fluid Container
-
Remove the RH fender splash shield.
Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
-

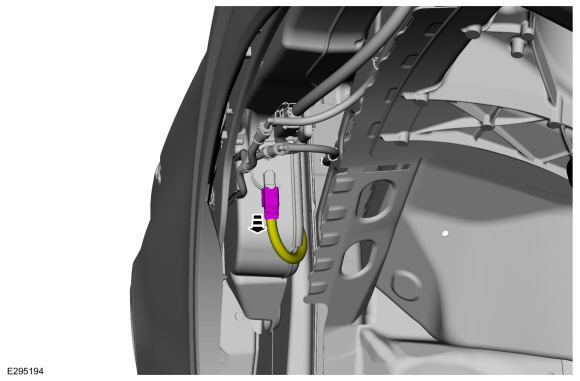

Disconnect the windshield washer fluid level sensor electrical connector.
-
NOTE:
Be prepared to collect escaping fluid.

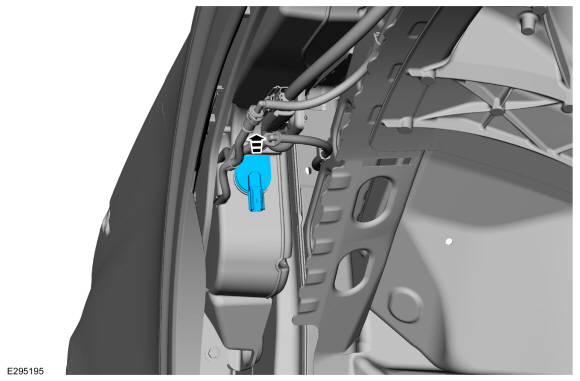

Remove the windshield washer fluid level sensor.
Use the General Equipment: Fluid Container
Installation
-
NOTICE:
Do not operate the washer pump prior to filling the
windshield washer reservoir. Failure to follow this instruction may
result in premature pump failure.
To install, reverse the removal procedure.
Material: Motorcraft® Premium Windshield Wash Concentrate with Bitterant
/ ZC-32-B2
(WSS-M14P19-A)
