Lincoln Aviator: Interior Trim and Ornamentation / Removal and Installation - Steering Column Shrouds

Special Tool(s) / General Equipment

Flat Headed Screw Driver
Interior Trim Remover

Removal

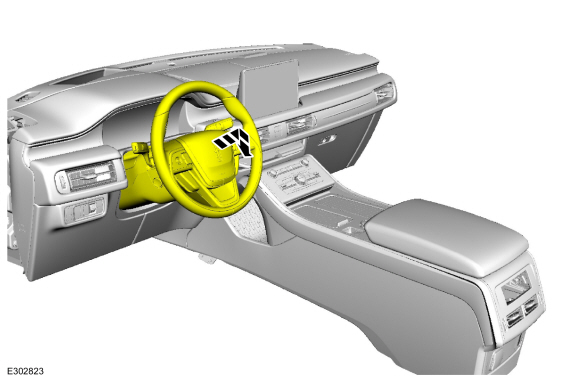

  1. Fully extend and lower the steering column.

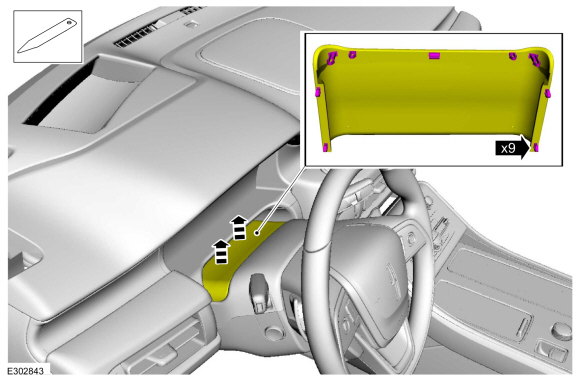

  1. Release the tabs and disconnect the gap hider from the upper steering column shroud.
    Use the General Equipment: Interior Trim Remover

  1. Release the upper steering column front clips.

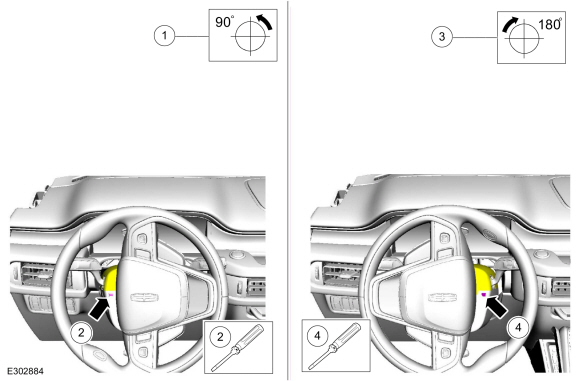

    1. Rotate the steering wheel 90 degrees to the left.
    1. Release the LH front clip.
      Use the General Equipment: Flat Headed Screw Driver
    1. Rotate the steering wheel 180 degrees to the right.
    1. Release the RH front clip.
      Use the General Equipment: Flat Headed Screw Driver

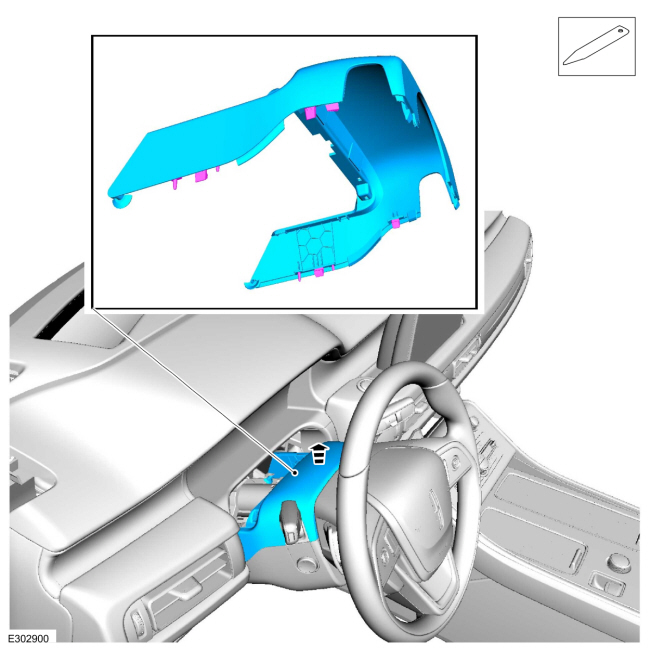

  1. NOTE: Gap hider is removed for clarity.

    Release the outer clips on each side and remove the steering column upper shroud.
    Use the General Equipment: Interior Trim Remover

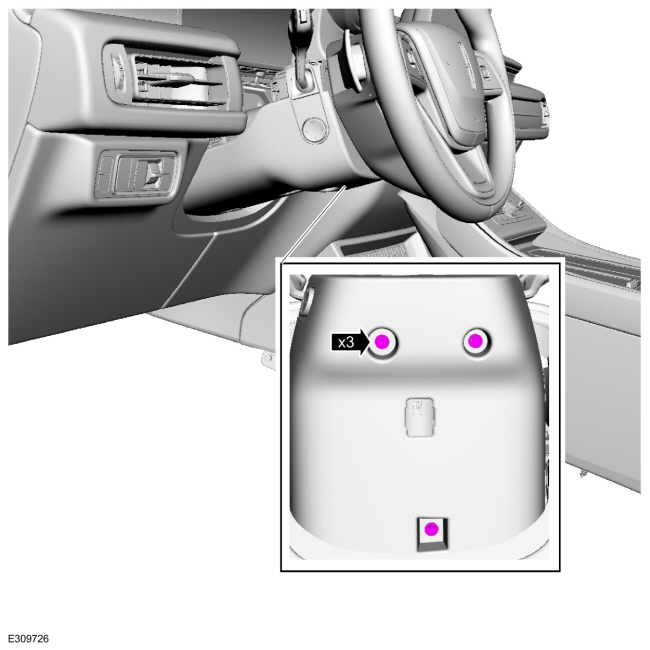

  1. Remove the steering column lower shroud bolts.

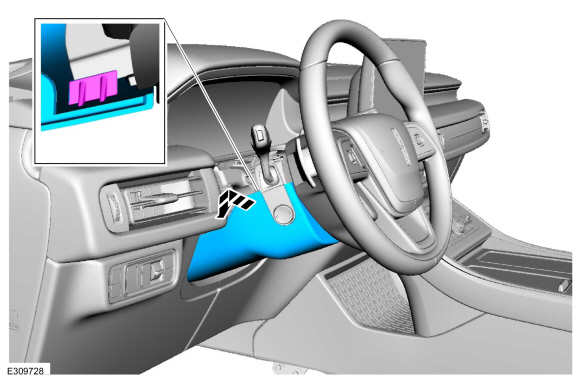

  1. Release the tab and remove the steering column lower shroud.

Installation

  1. To install, reverse the removal procedure.
