Lincoln Aviator 2020-2025 Service Manual / Body and Paint / Body and Paint / Exterior Trim and Ornamentation / Removal and Installation - Rear Quarter Panel Moulding

Lincoln Aviator: Exterior Trim and Ornamentation / Removal and Installation - Rear Quarter Panel Moulding

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

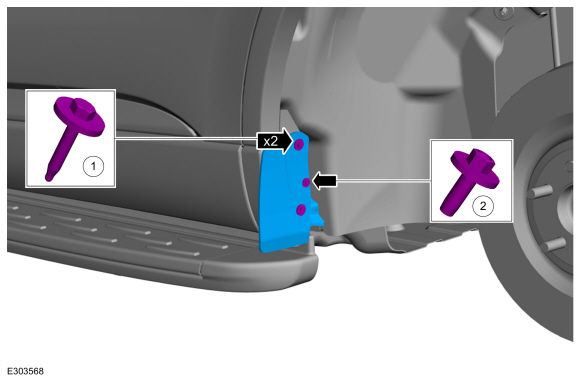

    1. Remove the screws.
      Torque: 33 lb.in (3.7 Nm)
    1. Remove the bolt.
      Torque: 89 lb.in (10 Nm)

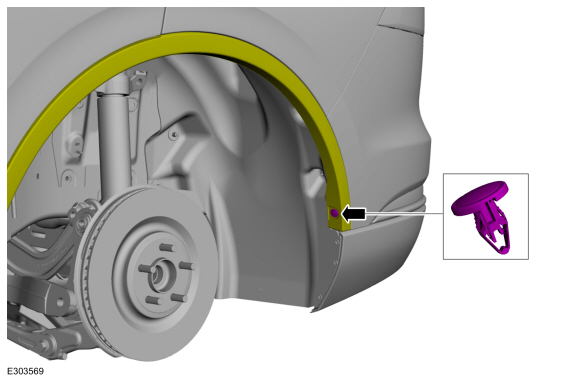

  1. Remove the pushpin retainer clip.

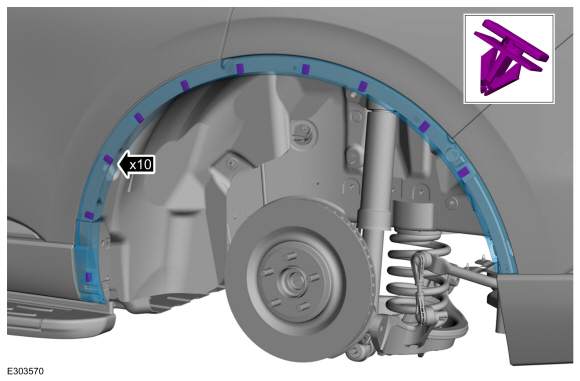

  1. Remove the retainer clips and moulding.

Installation

  1. To install, reverse the removal procedure.
