Lincoln Aviator: Exterior Lighting / Removal and Installation - Rear Lamp Fade Control Module

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the LH loadspace trim panel.
    Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

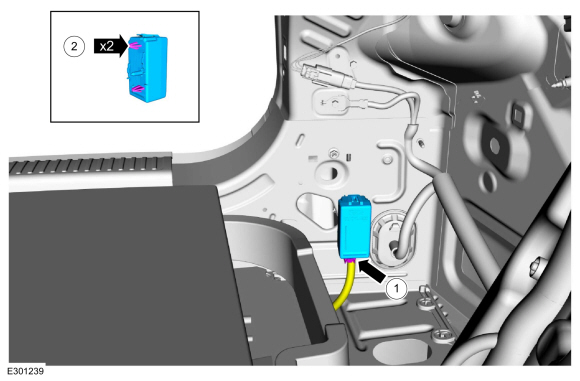

  1. Remove the rear lamp fade control module.
    1. Disconnect the rear lamp fade control module electrical connector.
    1. Detach the rear lamp fade control module clips.

Installation

  1. To install, reverse the removal procedure.
