Lincoln Aviator: Handles, Locks, Latches and Entry Systems / Removal and Installation - Rear Door Lock Control Switch

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: LH (left-hand) side shown, RH (right-hand) side similar.

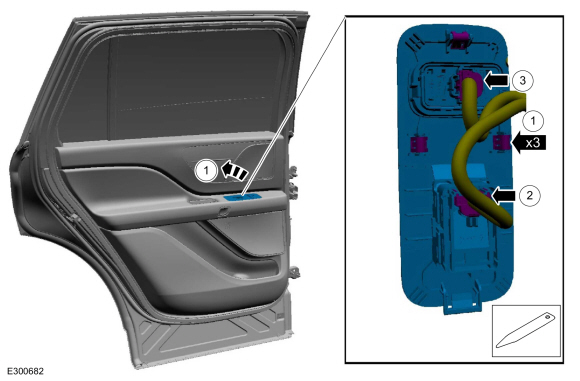

  1. Remove the rear door window control switch bezel assembly.
    1. Release the locking tabs from the rear door window control switch bezel assembly.
      Use the General Equipment: Interior Trim Remover
    1. Disconnect the rear door window control switch electrical connector.
    1. Disconnect the rear door lock control switch electrical connector and remove the rear door window control switch bezel assembly.
  1. NOTE: This step is only necessary when installing a new component.

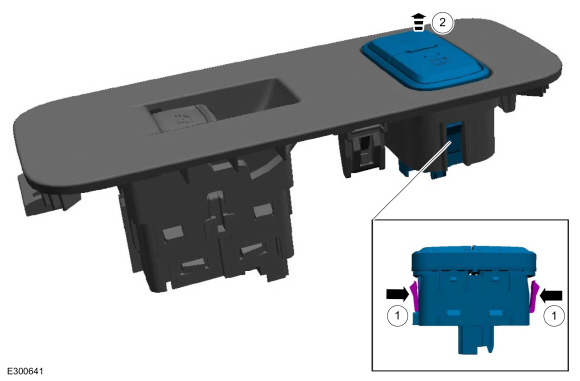

    Remove the rear door lock control switch from the bezel assembly.
    1. Release the locking tabs from the rear door lock control switch.
    1. Remove the rear door lock control switch from the bezel assembly.

Installation

  1. To install, reverse the removal procedure.
