Lincoln Aviator: Instrument Panel and Console / Removal and Installation - Overhead Console

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

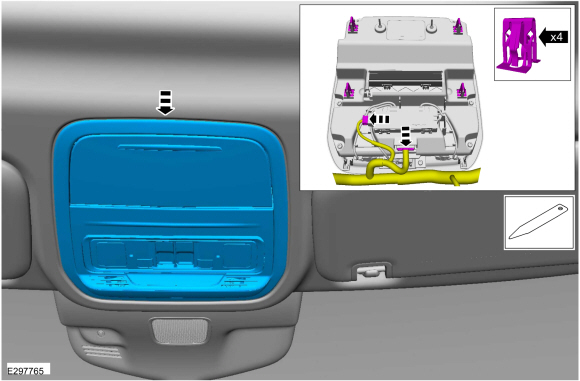

  1. Starting at the back, release the clips and remove the overhead console.
    • Disconnect the electrical connectors.
      Use the General Equipment: Interior Trim Remover

Installation

  1. To install, reverse the removal procedure.
