Lincoln Aviator: Front End Body Panels / Removal and Installation - Fender Splash Shield

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

Remove the wheel and tire.
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

Remove the front fender moulding.
Refer to: Front Fender Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).

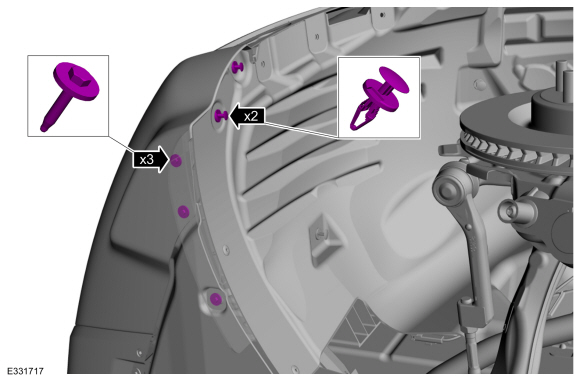

- Remove the pin-type retainers.
- Remove the screws.
  Torque: 22 lb.in (2.5 Nm)

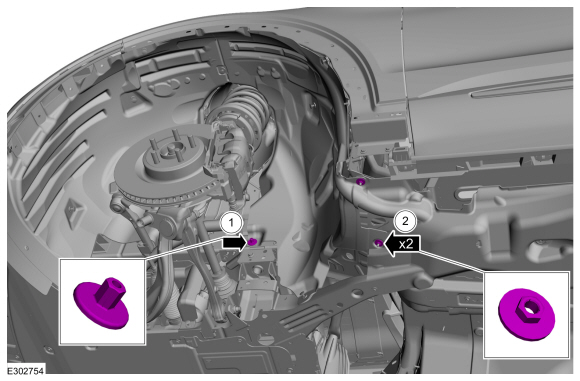

Remove the following items:
1. Remove the nut.
  Torque: 22 lb.in (2.5 Nm)
2. Remove the nuts.
  Torque: 53 lb.in (6 Nm)

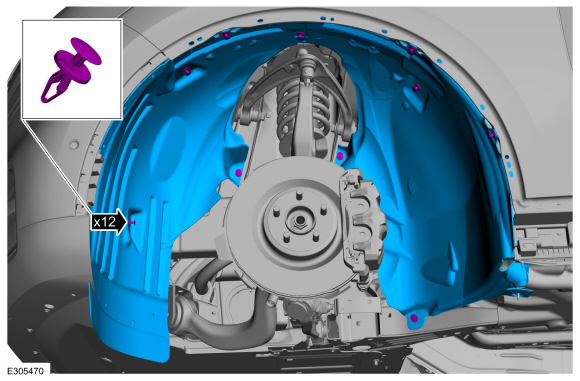

Remove the pin-type retainers and the fender splash shield.

Installation

To install, reverse the removal procedure.
