Lincoln Aviator: Wipers and Washers / Rear Window Wiper and Washers

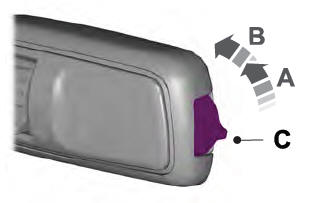

Rear Window Wiper
- Intermittent wipe.
- Continuous wipe.
- Rear window wiper off.
Depending on your vehicle, when you switch on the front wipers and move the gearshift lever to reverse (R), the rear intermittent wipe may turn on.
Note: Make sure you switch the rear window wiper off before entering a car wash.
Rear Window Washer
Push the lever away from you to operate the rear window washer. When you release the lever, the wipers operate for a short time.
Do not operate the washers when the washer reservoir is empty. This could cause the washer pump to overheat.
Windshield Washers
Pull the lever toward you to
operate the windshield washers.
When you release the lever, the wipers
operate for a short time. When activated, a
courtesy wipe occurs a short time after the
wipers stop to clear any remaining washer
fluid...
