Lincoln Aviator: Automatic Transmission External Controls - 10-Speed Automatic Transmission – 10R60 / General Procedures - Stay in Neutral
Activation
-
NOTE:
If the vehicle has a discharged battery, an external
power source is required. If the battery discharges while in Stay in
Neutral Mode, the park lock pawl solenoid will release and the
transmission will return to Park. Do not tow the vehicle in this mode.
Apply the parking brake.
-
Press N on the GSM and press N again within 5 seconds to enter Stay in Neutral Mode. N on the GSM will slowly blink and a message will appear on the IPC.
-
To exit Stay in Neutral Mode, press the brake pedal and shift to P, or if the engine is running press the brake pedal and shift to any other gear.
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation)...
Activation
NOTE:
If the vehicle has a discharged battery, an external power source is required.
Apply the parking brake.

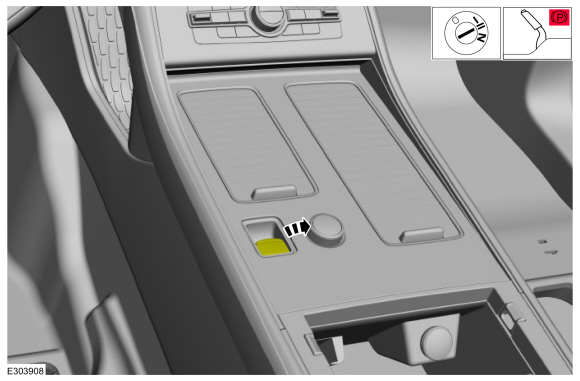

Remove the console mat...
