Lincoln Aviator 2020-2025 Service Manual / Powertrain / Fuel System - General Information / Fuel System - General Information - 3.0L EcoBoost / General Procedures - Quick Release Coupling

Lincoln Aviator: Fuel System - General Information - 3.0L EcoBoost / General Procedures - Quick Release Coupling

Disconnect

NOTICE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

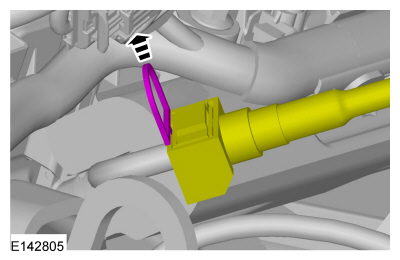

NOTE: Type 1

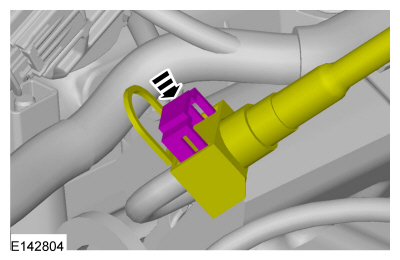

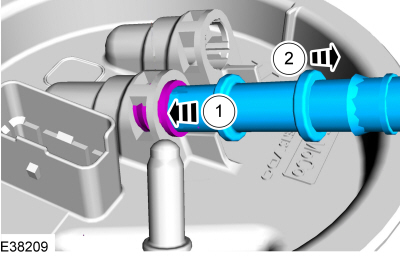

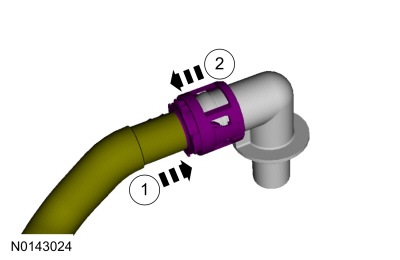

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Connect

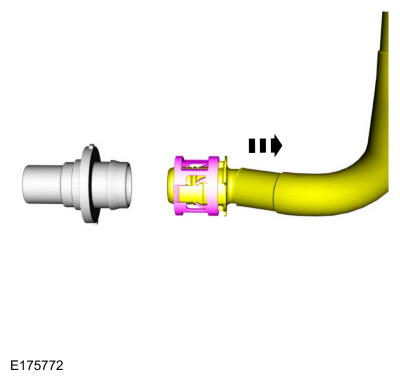

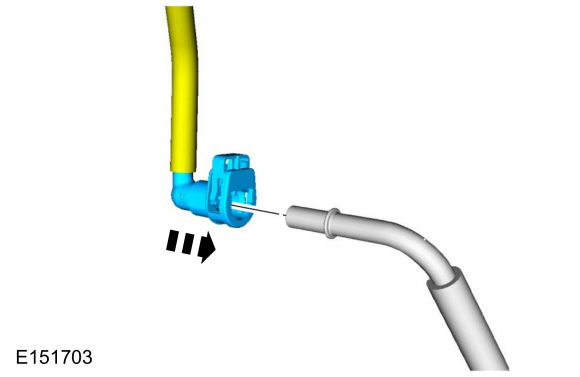

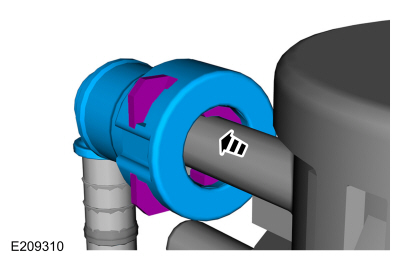

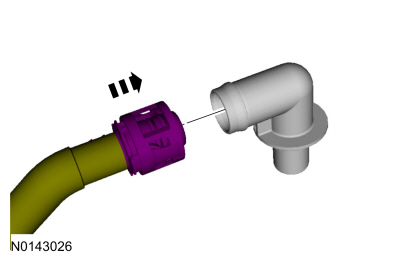

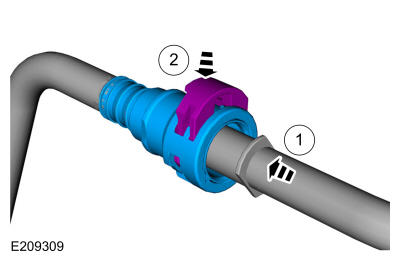

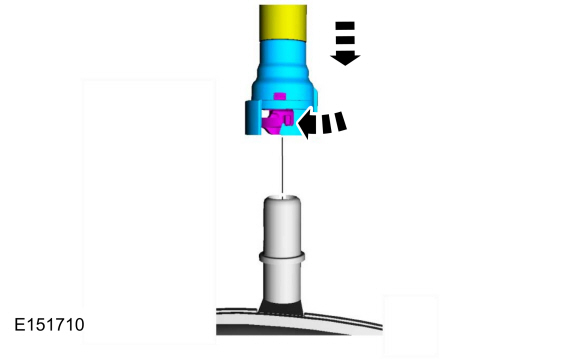

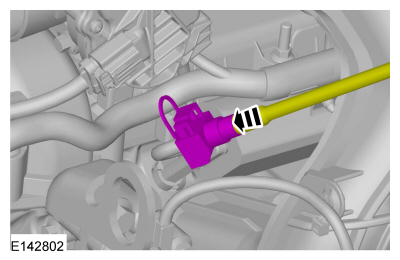

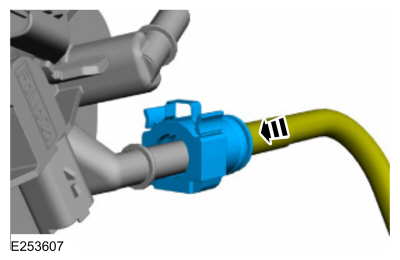

  1. Push the quick release coupling onto the tube.

  1. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

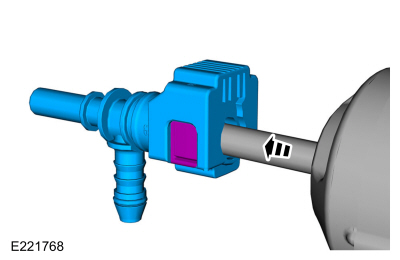

    Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 2

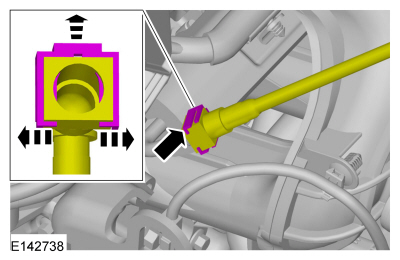

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Connect

  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 3

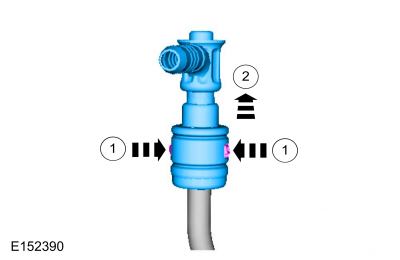

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Connect

  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 4

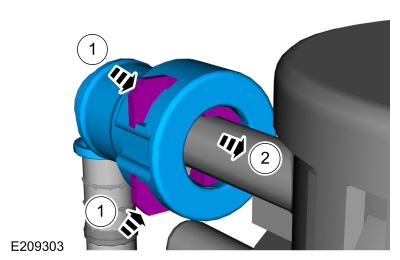

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Connect

  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 5

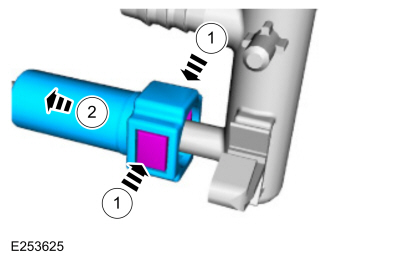

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Connect

  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 6

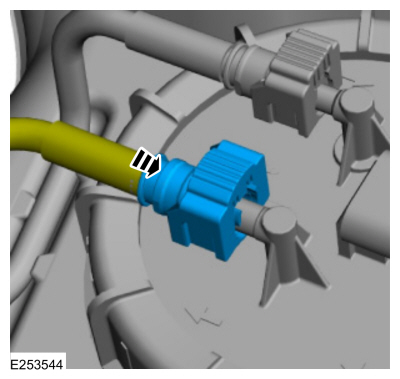

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

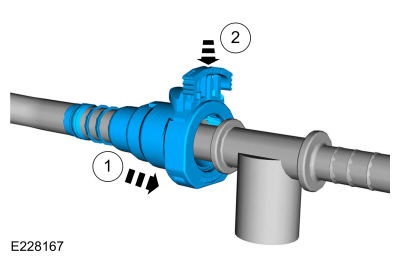

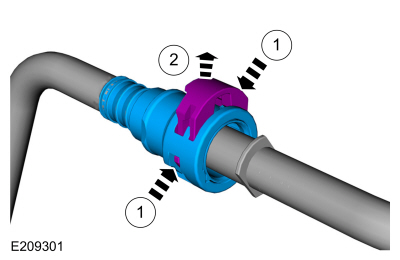

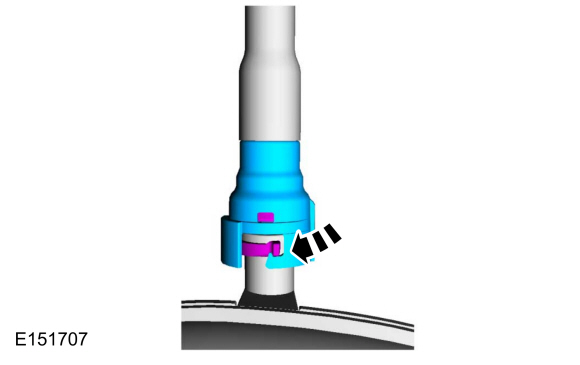

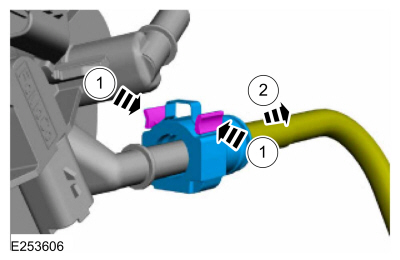

  1. Press the tabs of the rear retainer clip and pull it to the outward position.

Connect

  1. Pull on the quick release coupling to make sure it is securely fastened.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 7

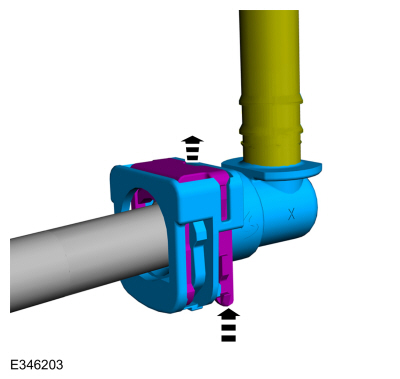

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Connect

  1. Pull on the quick connect coupling to make sure it is securely fastened.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 8

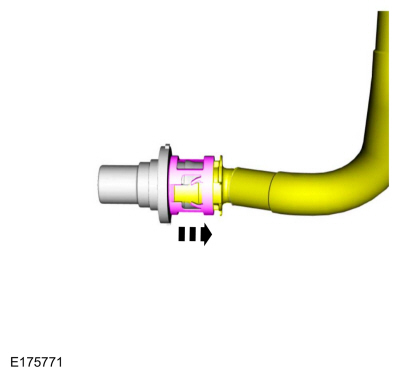

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Connect

  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 9

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

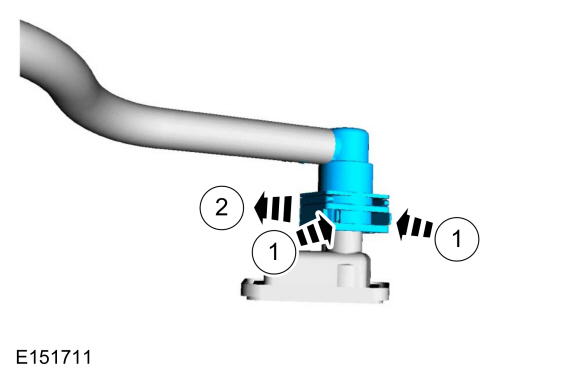

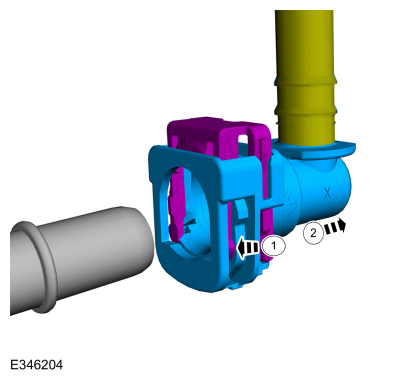

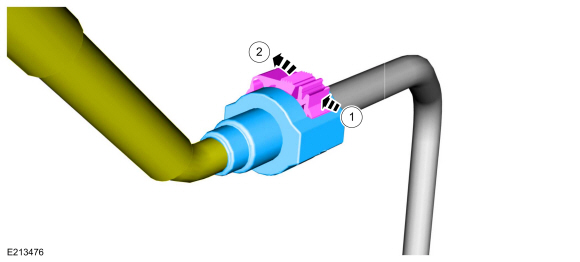

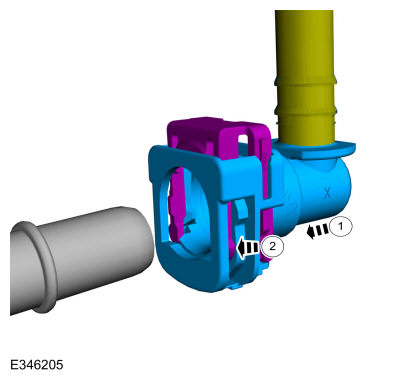

    1. Release the secondary locking tab.
    1. Depress the primary locking tab.
    1. Separate the quick release coupling from the tube.

Connect

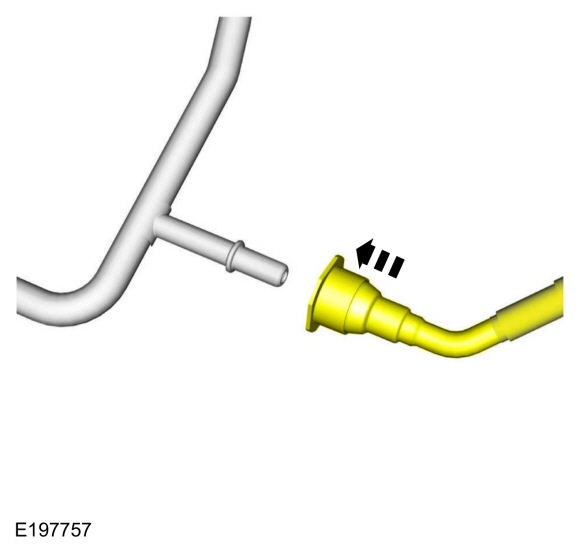

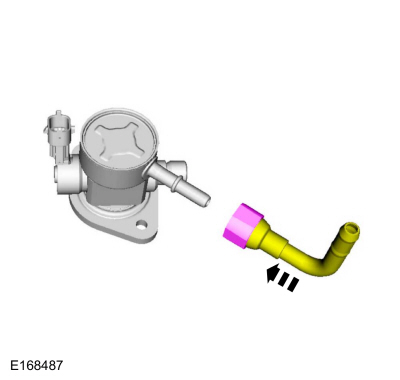

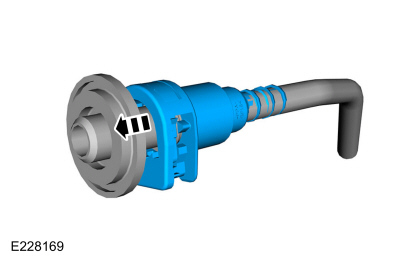

    1. Push the quick release coupling onto the tube.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Lock the secondary locking tab.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 10

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

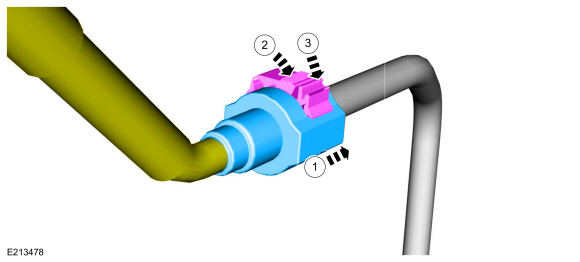

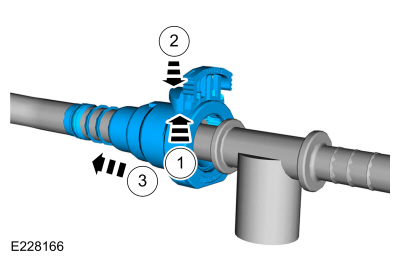

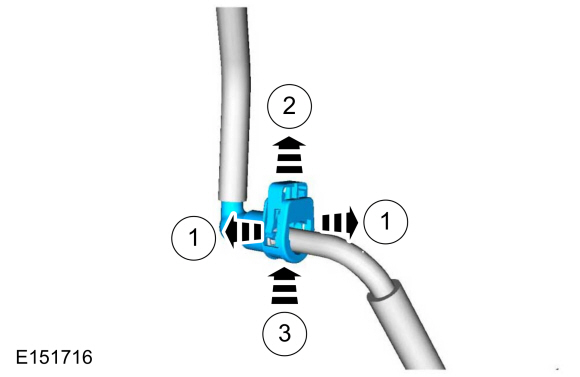

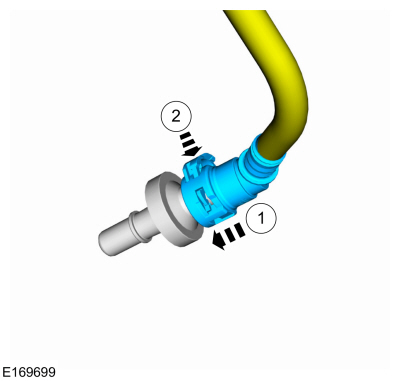

    1. Push on the locking tab.
    1. Lift the clip.

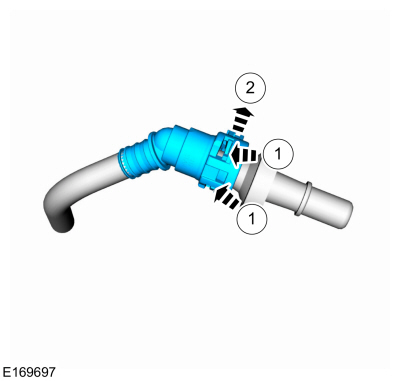

    1. Depress the tabs inward.
    1. Push the clip downward.
    1. Separate the quick release coupling from the fuel line.

Connect

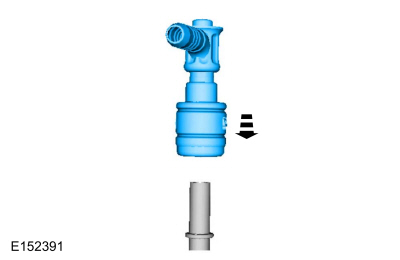

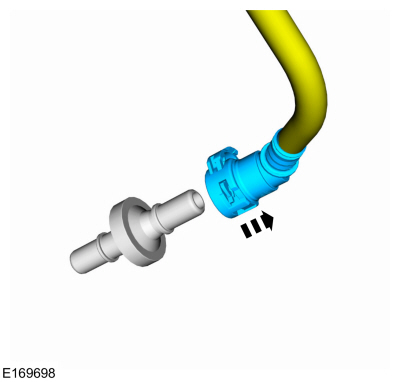

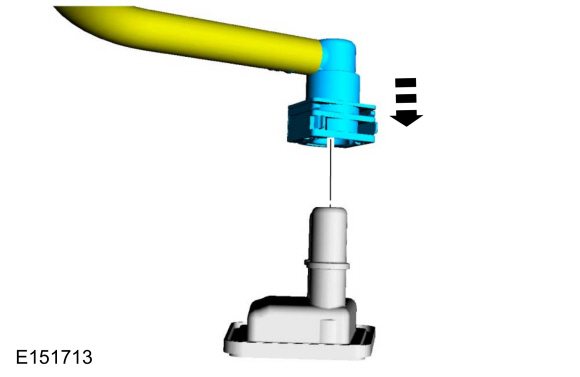

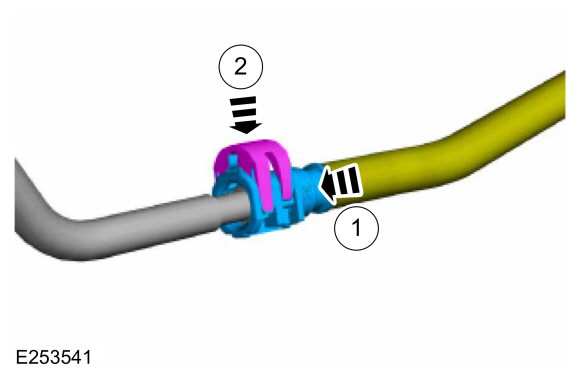

    1. Push the quick release coupling onto the tube.

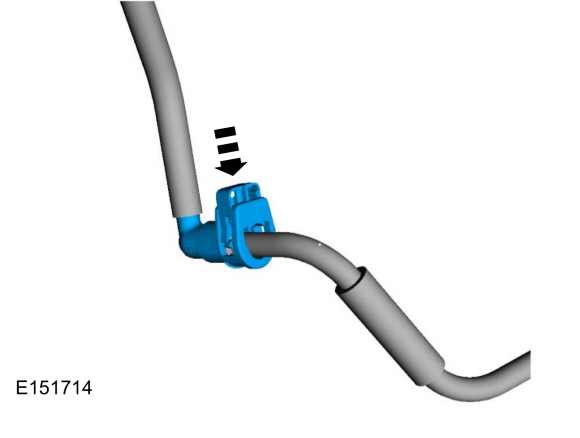

    1. Push the clip down into the quick release coupling.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 11

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Connect

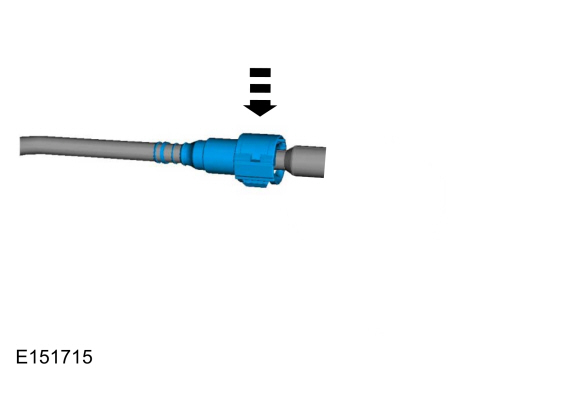

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 12

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

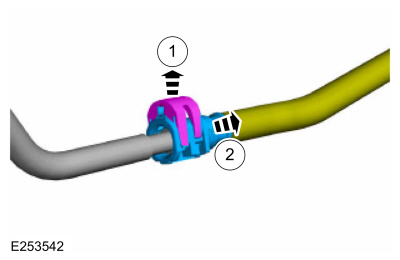

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 13

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

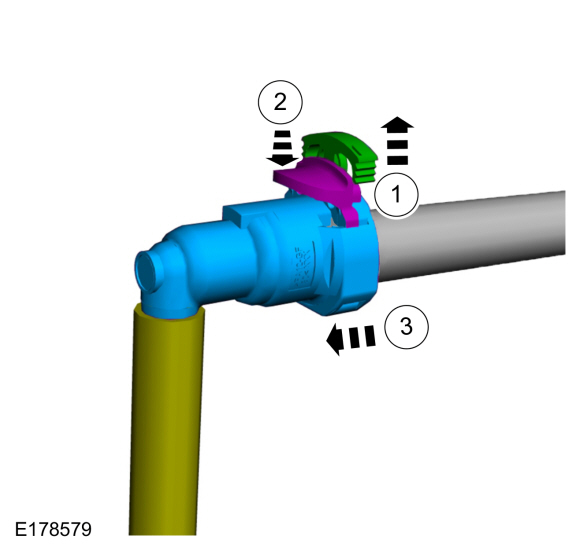

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 14

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

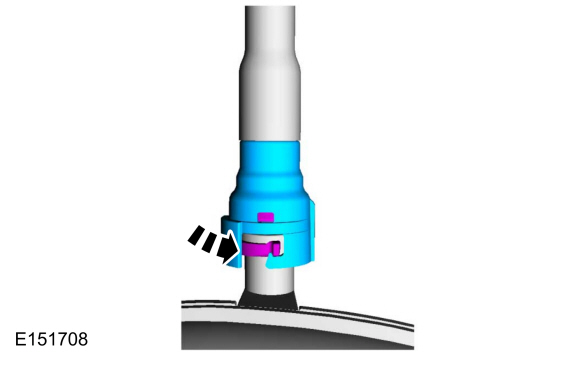

Connect

  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 15

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.

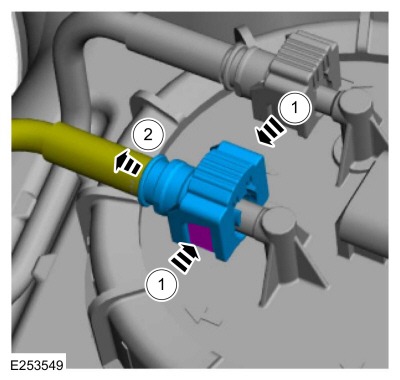

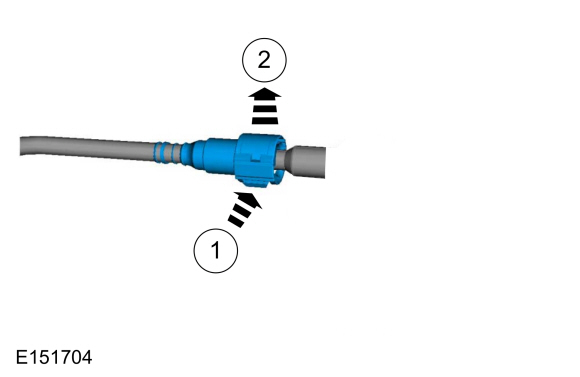

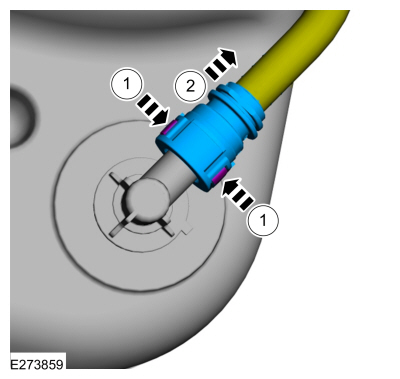

  1. Press both retaining tabs inward and remove quick release coupling from fuel tube.

Connect

  1. NOTE: Inspect and clean both quick release coupling ends.

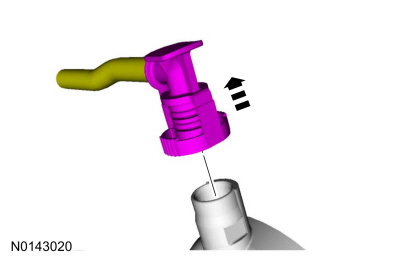

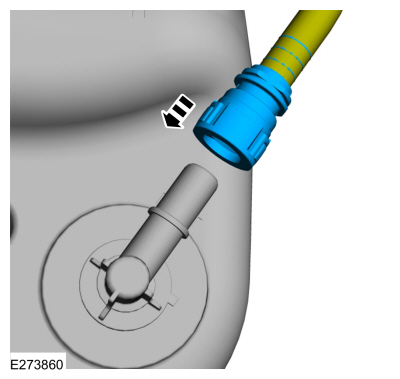

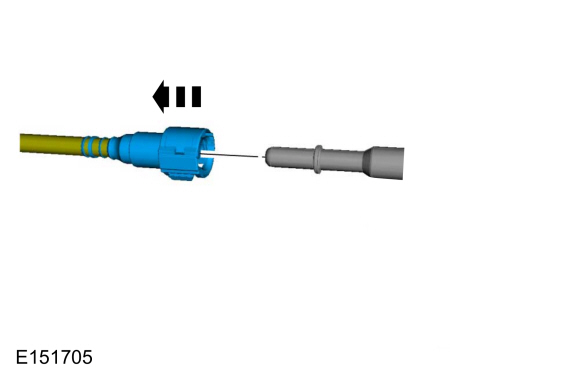

    Install the quick release coupling onto the tube until it is fully seated.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 16

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

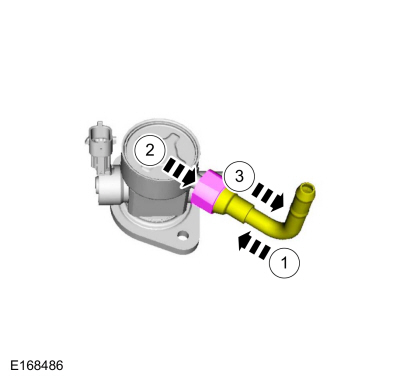

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 17

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 18

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 19

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 20

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 21

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 22

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  1. NOTICE: Make sure that all fuel connections are checked for leaks.

    NOTE: This step is only neccessary if a new component is installed.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 23

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Connect

  1. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 24

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 25

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

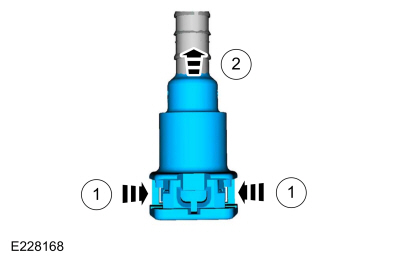

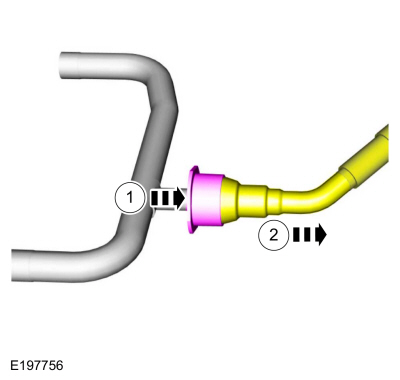

    1. Depress the clip into the quick release coupling.
    1. Separate the quick release coupling from the tube.

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 26

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

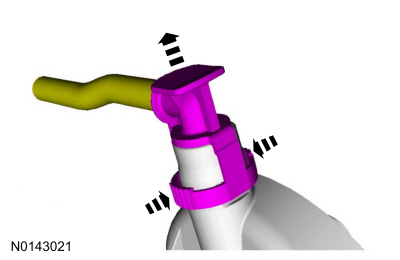

    1. Remove the quick release coupling from the tube.

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

Disconnect

NOTICE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 27

  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

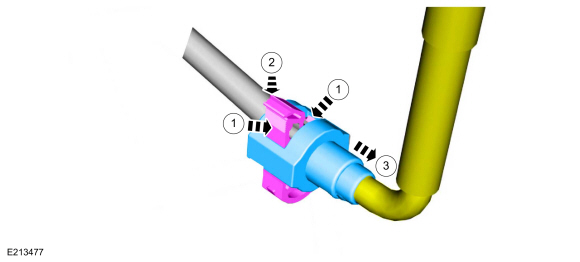

  1. Remove the quick release coupling from the tube.

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.
  1. Connect the battery ground cable.
    Refer to: Battery Cables - 3.0L EcoBoost – Hybrid (BQ) (414-01 Battery, Mounting and Cables, Removal and Installation).

    General Procedures - Fuel System Pressure Release

    Pressure release With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation)...

    Fuel Tank and Lines - 3.0L EcoBoost

    ..

    Other information:

    Lincoln Aviator 2020-2025 Service Manual: Diagnosis and Testing - Instrumentation, Message Center and Warning Chimes


    Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).   Diagnostic Trouble Code Chart Module   DTC Description Action   ABS C0049:01 Brake Fluid Level:General Electrical Failure   GO to Pinpoint Test L   ABS C0049:7B Brake Fluid Level:Low Fluid Level   GO to Pinpoint Test L   IPC P0460:11 Fuel Level Sensor "A" Circuit:Circuit Short To Ground   GO to Pinpoint Test D   IPC P0460:13 Fuel Level Sensor "A" Circuit:Circuit Open   GO to Pinpoint Test D   IPC U0100:00 Lost Communication With ECM/PCM "A":No Sub Type Information   GO to Pinpoint Test CC   IPC U0103:00 Lost Communication With Gear Shift Control Module A:No Sub Type Information   GO to Pinpoint Test CE   IPC U0111:00 Lost Communication With Battery Energy Control Module "A":No Sub Type Information   GO to Pinpoint Test CF   IPC U0121:00 Lost Communication With Anti-Lock Brake System (ABS) Control Module: No Sub Type Information   GO to Pinpoint Test CG   IPC U013F:00 Lost Communication With Pedestrian Alert Control Module:No Sub Type Information   GO to Pinpoint Test CI   IPC U0140:00 Lost Communication With Body Control Module: No Sub Type Information   GO to Pinpoint Test CJ   IPC U0151:00 Lost Communication With Restraints Control Module: No Sub Type Information   GO to Pinpoint Test CM   IPC U0158:00 Lost Communication With Head Up Display:No Sub Type Information   GO to Pinpoint Test CN   IPC U0159:00 Lost Communication With Parking Assist Control Module "A": No Sub Type Information   GO to Pinpoint Test CP   IPC U0193:00 Lost Communication With "Digital Audio Control Module A": No Sub Type Information   GO to Pinpoint Test CQ   IPC U0199:00 Lost Communication With "Door Control Module A":No Sub Type Information   GO to Pinpoint Test CR   IPC U0212:00 Lost Communication With Steering Column Control Module: No Sub Type Information   GO to Pinpoint Test CS   IPC U0212:82 Lost Communication With Steering Column Control Module:Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test CS   IPC U0232:00 Lost Communication With Side Obstacle Detection Control Module - Left: No Sub Type Information   GO to Pinpoint Test CU   IPC U0233:00 Lost Communication With Side Obstacle Detection Control Module - Right: No Sub Type Information   GO to Pinpoint Test CU   IPC U023A:00 Lost Communication With Image Processing Module A: No Sub Type Information   GO to Pinpoint Test CW   IPC U023B:82 Lost Communication With Image Processing Module B:Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test CX   IPC U0241:00 Lost Communication With Headlamp Control Module "A":No Sub Type Information   GO to Pinpoint Test CY   IPC U0253:00 Lost Communication With Accessory Protocol Interface Module:No Sub Type Information   GO to Pinpoint Test CZ   IPC U0260:00 Lost Communication With Seat Control Switch Module "A":No Sub Type Information   GO to Pinpoint Test DA   IPC U0293:00 Lost Communication with Hybrid/EV Powertrain Control Module:No Sub Type Information   GO to Pinpoint Test CD   IPC U0293:82 Lost Communication with Hybrid/EV Powertrain Control Module:Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test CD   IPC U0401:00 Invalid Data Received from ECM/PCM A:No Sub Type Information   GO to Pinpoint Test CC   IPC U0401:81 Invalid Data Received from ECM/PCM A:Invalid Serial Data Received   GO to Pinpoint Test CC   IPC U0401:82 Invalid Data Received from ECM/PCM A:Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test CC   IPC U0401:86 Invalid Data Received from ECM/PCM A:Signal Invalid   GO to Pinpoint Test CC   IPC U0405:56 Invalid Data Received From Cruise Control Module:Invalid/Incompatible Configuration   GO to Pinpoint Test CK   IPC U0412:86 Invalid Data Received From Battery Energy Control Module "A":Signal Invalid   GO to Pinpoint Test CF   IPC U0415:00 Invalid Data Received From Anti-Lock Brake System (ABS) Module: No Sub Type Information   GO to Pinpoint Test CG   IPC U0415:82 Invalid Data Received from Anti-Lock Brake System (ABS) Control Module "A":Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test CG   IPC U0420:82 Invalid Data Received from Power Steering Control Module "A":Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test CH   IPC U0422:00 Invalid Data Received From Body Control Module:No Sub Type Information   GO to Pinpoint Test CJ   IPC U0424:80 Invalid Data Received From HVAC Control Module:ISO/SAE Reserved   GO to Pinpoint Test CL   IPC U0424:81 Invalid Data Received From HVAC Control Module:Invalid Serial Data Received   GO to Pinpoint Test CL   IPC U0424:82 Invalid Data Received From HVAC Control Module:Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test CL   IPC U0431:82 Invalid Data Received From Body Control Module "A":Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test CJ   IPC U0452:81 Invalid Data Received From Restraints Control Module:Invalid Serial Data Received   GO to Pinpoint Test CM   IPC U045A:82 Invalid Data Received From Parking Assist Control Module "A":Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test CP   IPC U049C:82 Invalid Data Received From Battery Charger Control Module "A":Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test CO   IPC U0531:82 Invalid Data Received From Rear Gate Module:Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test CT   IPC U0533:00 Invalid Data Received From Side Obstacle Detection Control Module-Left: No Sub Type information   GO to Pinpoint Test CU   IPC U0533:56 Invalid Data Received From Side Obstacle Detection Control Module "A":Invalid/Incompatible Configuration   GO to Pinpoint Test CV   IPC U0534:00 Invalid Data Received From Side Obstacle Detection Control Module-Right: No Sub Type Information   GO to Pinpoint Test CU   IPC U0534:56 Invalid Data Received From Side Obstacle Detection Control Module "B":Invalid/Incompatible Configuration   GO to Pinpoint Test CV   IPC U0542:82 Invalid Data Received From Headlamp Control Module "A":Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test CY   IPC U0594:86 Invalid Data Received From Hybrid/EV Powertrain Control Module:Signal Invalid   GO to Pinpoint Test CD   IPC U2100:00 Initial Configuration Not Complete:No Sub Type Information   GO to Pinpoint Test DB   IPC U3000:04 Control Module:System Internal Failures   GO to Pinpoint Test DC   IPC U3000:46 Control Module:Calibration/Parameter Memory Failure   GO to Pinpoint Test DC   IPC U3003:16 Battery Voltage: Circuit Voltage Below Threshold   GO to Pinpoint Test DE   IPC U3003:17 Battery Voltage: Circuit Voltage Above Threshold   GO to Pinpoint Test DF   IPC U300A:64 Ignition Switch:Signal Plausibility Failure   GO to Pinpoint Test DD   PCM P0461:00 Fuel Level Sensor "A" Circuit Range/Performance:No Sub Type Information   GO to Pinpoint Test D   PCM P0462:00 Fuel Level Sensor "A" Circuit Low:No Sub Type Information   GO to Pinpoint Test D   PCM P0463:00 Fuel Level Sensor "A" Circuit High:No Sub Type Information   GO to Pinpoint Test D   PCM P0522:00 Engine Oil Pressure Sensor/Switch "A" Circuit Low:No Sub Type Information   GO to Pinpoint Test W   PCM P0523:00 Engine Oil Pressure Sensor/Switch "A" Circuit High:No Sub Type Information   GO to Pinpoint Test W   PCM P25B0:00 Fuel Level Sensor "A" Stuck:No Sub Type Information   GO to Pinpoint Test D   SIMA B1380:4A Steering Wheel Right Switch Pack:Incorrect Component Installed   GO to Pinpoint Test AG   SIMA B1380:71 Steering Wheel Right Switch Pack:Actuator Stuck   GO to Pinpoint Test AG Symptom Chart(s) Symptom Chart: Instrument Panel Cluster (IPC) Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...

    Lincoln Aviator 2020-2025 Service Manual: Removal and Installation - Exterior Front Door Handle


    Removal NOTE: LH (left-hand) side shown, RH (right-hand) side similar. NOTE: Removal steps in this procedure may contain installation details. Remove the front door window regulator and motor. Refer to: Front Door Window Regulator and Motor (501-11 Glass, Frames and Mechanisms, Removal and Installation)...

    Categories

    Children and Airbags

    WARNING: Airbags can kill or injure a child in a child restraint. Never place a rear-facing child restraint in front of an active airbag. If you must use a forward-facing child restraint in the front seat, move the seat upon which the child restraint is installed all the way back.

    Lincoln Aviator. Children and Airbags

    read more


    Copyright © 2025 www.liaviator2.com
