Lincoln Aviator 2020-2025 Service Manual / Electrical / Instrumentation and Warning Systems / Parking Aid - Vehicles With: Rear Parking Aid / General Procedures - Elevation System Check

Lincoln Aviator: Parking Aid - Vehicles With: Rear Parking Aid / General Procedures - Elevation System Check

Check

Turn the ignition ON, engine OFF.

Set the parking brake.

Place the gearshift in REVERSE (R) for rear parking aid sensors.

Place the gearshift in DRIVE (D) for front parking aid sensors.

Using a diagnostic scan tool, monitor the parking aid sensor distance Parameter Identifications (PIDs) to verify no objects are detected.

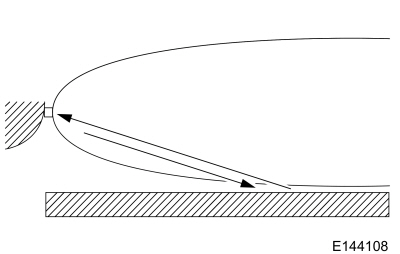

If the audible warning is heard or if the Parameter Identifications (PIDs) indicate an object is detected, check to make sure the bumper is correctly installed and is not tilted downward so the sensor is pointing at the ground. Refer to Diagnosis and Testing.

General Procedures - Azimuth System Check

Check NOTE: The object used in this system check can be fabricated using a 9 cm diameter (3 in I.D.) pipe, 100 cm (39 in) in length (available as Polyvinyl Chloride (PVC) pipe, or similar from a hardware or plumbing supply...

Removal and Installation - Front Parking Aid Sensor

Removal Remove the front bumper cover. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation). Remove the front parking aid sensor...
