Lincoln Aviator 2020-2024 Service Manual / Electrical / Electronic Feature Group / Multifunction Electronic Modules / Diagnosis and Testing - Body Control Module (BCM)

Lincoln Aviator: Multifunction Electronic Modules / Diagnosis and Testing - Body Control Module (BCM)

Diagnostic Trouble Code (DTC) Chart

Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.
REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).


  Diagnostic Trouble Code Chart


Module   DTC Description Action
  BCM B11D9:16 Vehicle Battery:Circuit Voltage Below Threshold   GO to Pinpoint Test Y
  BCM B11D9:17 Vehicle Battery:Circuit Voltage Above Threshold   GO to Pinpoint Test Z
  BCM U0100:87 Lost Communication With ECM/PCM "A":Missing Message   GO to Pinpoint Test A
  BCM U0121:87 Lost Communication With Anti-Lock Brake System (ABS) Control Module:Missing Message   GO to Pinpoint Test B
  BCM U0131:87 Lost Communication With Power Steering Control Module:Missing Message   GO to Pinpoint Test C
  BCM U0151:87 Lost Communication With Restraints Control Module:Missing Message   GO to Pinpoint Test D
  BCM U0155:87 Lost Communication With Instrument Panel Cluster (IPC) Control Module:Missing Message   GO to Pinpoint Test E
  BCM U0166:87 Lost Communication With Auxiliary Heater Control Module:Missing Message   GO to Pinpoint Test F
  BCM U0184:87 Lost Communication With Radio:Missing Message   GO to Pinpoint Test G
  BCM U0198:87 Lost Communication With Telematic Control Module: Missing Message   GO to Pinpoint Test H
  BCM U0199:87 Lost Communication With "Door Control Module A":Missing Message   GO to Pinpoint Test I
  BCM U019B:87 Lost Communication With Battery Charger Control Module:Missing Message   GO to Pinpoint Test J
  BCM U0200:87 Lost Communication With "Door Control Module B":Missing Message   GO to Pinpoint Test K
  BCM U0208:87 Lost Communication With "Seat Control Module A":Missing Message   GO to Pinpoint Test L
  BCM U0212:87 Lost Communication With Steering Column Control Module:Missing Message   GO to Pinpoint Test M
  BCM U0230:87 Lost Communication With Rear Gate Module:Missing Message   GO to Pinpoint Test N
  BCM U0232:87 Lost Communication With Side Obstacle Detection Control Module "A":Missing Message   GO to Pinpoint Test O
  BCM U0233:87 Lost Communication With Side Obstacle Detection Control Module "B":Missing Message   GO to Pinpoint Test P
  BCM U023A:87 Lost Communication With Image Processing Control Module A:Missing Message   GO to Pinpoint Test Q
  BCM U0252:87 Lost Communication With Lighting Control Module-Rear "B":Missing Message   GO to Pinpoint Test R
  BCM U0253:87 Lost Communication With Accessory Protocol Interface Module:Missing Message   GO to Pinpoint Test S
  BCM U0256:87 Lost Communication With Front Controls Interface Module "A":Missing Message   GO to Pinpoint Test T
  BCM U0293:87 Lost Communication With Hybrid/EV Powertrain Control Module "A":Missing Message   GO to Pinpoint Test U
  BCM U1000:00 Solid State Driver Protection Active:Driver Disabled: No Sub Type Information   GO to Pinpoint Test V
  BCM U2005:85 Vehicle Speed:Signal Above Allowable Range   GO to Pinpoint Test W
  BCM U2100:00 Initial Configuration Not Complete:No Sub Type Information   GO to Pinpoint Test X
  BCM U2101:00 Control Module Configuration Inomplete:No Sub Type Information   GO to Pinpoint Test X
  BCM U2200:00 Control Module Configuration Memory Corrupt:No Sub Type Information   GO to Pinpoint Test X
  BCM U3000:49 Control Module:Internal Electronic Failure   GO to Pinpoint Test AA
  BCM U3006:16 Control Module Input Power “A”:Circuit Voltage Below Threshold   GO to Pinpoint Test Y
  BCM U3006:17 Control Module Input Power “A”:Circuit Voltage Above Threshold   GO to Pinpoint Test Z
  BCM U3006:1C Control Module Input Power “A”:Circuit Voltage Out of Range   GO to Pinpoint Test Y
  BCM U3006:1C Control Module Input Power “A”:Circuit Voltage Out of Range   GO to Pinpoint Test Z
  BCM U3007:16 Control Module Input Power "B":Circuit Voltage Below Threshold   GO to Pinpoint Test Y
  BCM U3007:17 Control Module Input Power "B":Circuit Voltage Above Threshold   GO to Pinpoint Test Z
  BCM U3013:16 Control Module Input Power "C":Circuit Voltage Below Threshold   GO to Pinpoint Test Y
  BCM U3013:17 Control Module Input Power "C":Circuit Voltage Above Threshold   GO to Pinpoint Test Z
  BCM U3014:16 Control Module Input Power "D":Circuit Voltage Below Threshold   GO to Pinpoint Test Y
  BCM U3014:17 Control Module Input Power "D":Circuit Voltage Above Threshold   GO to Pinpoint Test Z

Symptom Chart

Symptom Chart: Multifunction Electronic Modules

Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.
REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).

Condition Possible Sources Action
A module does not respond to the diagnostic scan tool
  • Fuse
  • Wiring, terminals or connectors
  • Module

REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

Pinpoint Tests


PINPOINT TEST A : U0100:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0100:87 Lost Communication With ECM/PCM "A": Missing Message A continuous memory DTC that sets in the BCM if powertrain data messages from the PCM over the HS-CAN are missing.

Possible Sources

  • Communication network concern
  • Charging system concern
  • PCM
  • BCM
A1 VERIFY THE DIAGNOSTIC SCAN TOOL COMMUNICATES WITH THE PCM (POWERTRAIN CONTROL MODULE)
  • Ignition ON.
  • Connect the diagnostic scan tool.
  • Check that a vehicle session can be established using the diagnostic scan tool.

Can a vehicle session be established?
Yes GO to A2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

A2 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0100:87 retrieved again?
Yes GO to A3
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

A3 RETRIEVE THE PCM (POWERTRAIN CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the PCM KOEO self-test.

Are any voltage system related Diagnostic Trouble Codes (DTCs) present?
Yes
REFER to: Electronic Engine Controls (303-14 Electronic Engine Controls) .
No GO to A4

A4 RETRIEVE THE BCM (BODY CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the BCM self-test.

Are any Diagnostic Trouble Codes (DTCs) recorded?
Yes REFER to the BCM DTC Chart.
No GO to A5

A5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0100:00 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0100:00 set in other modules?
Yes GO to A6
No GO to A7

A6 CHECK FOR CORRECT PCM (POWERTRAIN CONTROL MODULE) OPERATION
  • Disconnect and inspect all PCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the PCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern,
   Click here to access Guided Routine (PCM). Internet Explorer version 11 or greater is required to perform this Pinpoint Test.
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

A7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST B : U0121:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0121:87 Lost Communication With Anti-Lock Brake System (ABS) Control Module "A": Missing Message A continuous memory DTC that sets in the BCM if messages from the ABS module through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • ABS module
  • BCM
B1 CHECK THE COMMUNICATION NETWORK
  • Using a diagnostic scan tool, perform a network test.

Does the ABS module pass the network test?
Yes GO to B2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

B2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to B3

B3 RETRIEVE THE ABS (ANTI-LOCK BRAKE SYSTEM) MODULE DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the ABS module self-test.

Are any voltage system related Diagnostic Trouble Codes (DTCs) present?
Yes
REFER to: Anti-Lock Brake System (ABS) and Stability Control (206-09 Anti-Lock Brake System (ABS) and Stability Control, Diagnosis and Testing).
No GO to B4

B4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0121:87 still present?
Yes GO to B5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

B5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0121:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0121:87 set in other modules?
Yes GO to B6
No GO to B7

B6 CHECK FOR CORRECT ABS (ANTI-LOCK BRAKE SYSTEM) MODULE OPERATION
  • Disconnect and inspect the ABS module connector.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the ABS module connector. Make sure it seats and latches correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new HCU.
REFER to: Electric Brake Booster (EBB) (206-09 Anti-Lock Brake System (ABS) and Stability Control, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

B7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST C : U0131:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0131:87 Lost Communication With Power Steering Control Module "A": Missing Message A continuous memory DTC that sets in the BCM if messages from the PSCM through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • PSCM
  • BCM
C1 CHECK THE COMMUNICATION NETWORK
  • Using a diagnostic scan tool, perform a network test.

Does the PSCM pass the network test?
Yes GO to C2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

C2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to C3

C3 RETRIEVE THE PSCM (POWER STEERING CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the PSCM self-test.

Are any Diagnostic Trouble Codes (DTCs) recorded?
Yes With adaptive steering,
REFER to: Adaptive Steering (211-02 Power Steering, Diagnosis and Testing). Without adaptive steering,
REFER to: Power Steering (211-02 Power Steering, Diagnosis and Testing).
No GO to C4

C4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0131:87 still present?
Yes GO to C5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

C5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0131:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0131:87 set in other modules?
Yes GO to C6
No GO to C7

C6 CHECK FOR CORRECT PSCM (POWER STEERING CONTROL MODULE) OPERATION
  • Disconnect and inspect the PSCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the PSCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new PSCM.
REFER to: Steering Gear (211-02 Power Steering, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

C7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST D : U0151:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0151:87 Lost Communication With Restraints Control Module: Missing Message A continuous memory DTC that sets in the BCM if SRS messages from the RCM through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • RCM
  • BCM
D1 CHECK THE COMMUNICATION NETWORK
  • Using a diagnostic scan tool, perform a network test.

Does the RCM pass the network test?
Yes GO to D2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

D2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to D3

D3 RETRIEVE THE RCM (RESTRAINTS CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the RCM self-test.

Are any voltage system related Diagnostic Trouble Codes (DTCs) present?
Yes
REFER to: Airbag Supplemental Restraint System (SRS) (501-20B Supplemental Restraint System, Diagnosis and Testing).
No GO to D4

D4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0151:87 still present?
Yes GO to D5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

D5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0151:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0151:87 set in other modules?
Yes GO to D6
No GO to D7

D6 CHECK FOR CORRECT RCM (RESTRAINTS CONTROL MODULE) OPERATION
  • Disconnect and inspect the RCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the RCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new RCM.
REFER to: Restraints Control Module (RCM) (501-20B Supplemental Restraint System, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

D7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST E : U0155:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0155:87 Lost Communication With Instrument Panel Cluster (IPC) Control Module: Missing Message A continuous memory DTC that sets in the BCM if messages from the IPC through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • IPC
  • BCM
E1 CHECK THE COMMUNICATION NETWORK
  • Using a diagnostic scan tool, perform a network test.

Does the IPC pass the network test?
Yes GO to E2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

E2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to E3

E3 RETRIEVE THE IPC (INSTRUMENT PANEL CLUSTER) MODULE DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the IPC self-test.

Are any voltage system related Diagnostic Trouble Codes (DTCs) present?
Yes
REFER to: Instrumentation, Message Center and Warning Chimes - Vehicles With: Head Up Display (HUD) (413-01 Instrumentation, Message Center and Warning Chimes, Diagnosis and Testing).
No GO to E4

E4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0155:87 still present?
Yes GO to E5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

E5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0155:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0155:87 set in other modules?
Yes GO to E6
No GO to E7

E6 CHECK FOR CORRECT IPC (INSTRUMENT PANEL CLUSTER) OPERATION
  • Disconnect and inspect the IPC connector.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the IPC connector. Make sure it seats and latches correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new IPC.
REFER to: Instrument Panel Cluster (IPC) (413-01 Instrumentation, Message Center and Warning Chimes, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

E7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST F : U0166:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0166:87 Lost Communication With Auxiliary Heater Control Module: Missing Message A continuous memory DTC that sets in the BCM if messages from the RHVAC module through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • RHVAC module
  • BCM
F1 CHECK THE COMMUNICATION NETWORK
  • Using a diagnostic scan tool, perform a network test.

Does the RHVAC module pass the network test?
Yes GO to F2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

F2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to F3

F3 RETRIEVE THE RHVAC (REAR HEATING, VENTILATION AND AIR CONDITIONING) MODULE DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the RHVAC self-test.

Are any voltage system related Diagnostic Trouble Codes (DTCs) present?
Yes
REFER to: Climate Control System (412-00 Climate Control System - General Information, Diagnosis and Testing).
No GO to F4

F4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0166:87 still present?
Yes GO to F5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

F5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0166:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0166:87 set in other modules?
Yes GO to F6
No GO to F7

F6 CHECK FOR CORRECT RHVAC (REAR HEATING, VENTILATION AND AIR CONDITIONING) MODULE OPERATION
  • Disconnect and inspect the RHVAC module connector.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the RHVAC module connector. Make sure it seats and latches correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new RHVAC module.
REFER to: Rear Heating, Ventilation and Air Conditioning (RHVAC) Control Module (412-02A Rear Climate Control, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

F7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST G : U0184:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0184:87 Lost Communication With Radio: Missing Message A continuous memory DTC that sets in the BCM if messages from the ACM through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • ACM
  • BCM
G1 CHECK THE COMMUNICATION NETWORK
  • Using a diagnostic scan tool, perform a network test.

Does the ACM pass the network test?
Yes GO to G2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

G2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to G3

G3 RETRIEVE THE ACM (AUDIO FRONT CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the ACM self-test.

Are any Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Information and Entertainment System (415-00 Information and Entertainment System - General Information, Diagnosis and Testing).
No GO to G4

G4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0184:87 still present?
Yes GO to G5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

G5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0184:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0184:87 set in other modules?
Yes GO to G6
No GO to G7

G6 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION
  • Disconnect and inspect the ACM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the ACM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new ACM.
REFER to: Audio Front Control Module (ACM) (415-00 Information and Entertainment System - General Information, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

G7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST H : U0198:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0198:87 Lost Communication With Telematic Control Module "A": Missing Message A continuous memory DTC that sets in the BCM if messages received from the TCU are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • TCU
  • BCM
H1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Using a diagnostic scan tool, perform a network test.

Does the TCU pass the network test?
Yes GO to H2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

H2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to H3

H3 RETRIEVE THE TCU (TELEMATIC CONTROL UNIT MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the TCU self-test.

Is any DTC recorded?
Yes
REFER to: Information and Entertainment System (415-00 Information and Entertainment System - General Information, Diagnosis and Testing).
No GO to H4

H4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0198:87 still present?
Yes GO to H5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

H5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0198:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0198:87 set in other modules?
Yes GO to H6
No GO to H7

H6 CHECK FOR CORRECT TCU (TELEMATIC CONTROL UNIT MODULE) OPERATION
  • Ignition OFF.
  • Disconnect and inspect all TCU connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect all TCU connectors.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new TCU.
REFER to: Telematics Control Unit (TCU) Module (415-00 Information and Entertainment System - General Information, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

H7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Ignition OFF.
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect all BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST I : U0199:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0199:87 Lost Communication With "Door Control Module A": Missing Message A continuous memory DTC that sets in the BCM if messages from the DDM over the MS-CAN through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • DDM
  • BCM
I1 CHECK THE COMMUNICATION NETWORK
  • Using a diagnostic scan tool, perform a network test.

Does the DDM pass the network test?
Yes GO to I2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

I2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to I3

I3 RETRIEVE THE DDM (DRIVER DOOR MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the DDM self-test.

Are any Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Locks, Latches and Entry Systems (501-14 Handles, Locks, Latches and Entry Systems, Diagnosis and Testing).
No GO to I4

I4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0199:87 still present?
Yes GO to I5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

I5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0199:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0199:87 set in other modules?
Yes GO to I6
No GO to I7

I6 CHECK FOR CORRECT DDM (DRIVER DOOR MODULE) OPERATION
  • Disconnect and inspect the DDM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the DDM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new DDM.
REFER to: Driver Door Module (DDM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

I7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST J : U019B:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U019B:87 Lost Communication With Battery Charger Control Module "A": Missing Message A continuous memory DTC that sets in the BCM if messages from the battery charger control module over the MS-CAN through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • Battery charger control module
  • BCM
J1 CHECK THE COMMUNICATION NETWORK
  • Using a diagnostic scan tool, perform a network test.

Does the battery charger control module pass the network test?
Yes GO to J2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

J2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to J3

J3 RETRIEVE THE BATTERY CHARGER CONTROL MODULE DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the DDM self-test.

Are any Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Battery (414-01 Battery, Mounting and Cables, Diagnosis and Testing).
No GO to J4

J4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U019B9:87 still present?
Yes GO to J5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

J5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U019B:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U019B:87 set in other modules?
Yes GO to J6
No GO to J7

J6 CHECK FOR CORRECT BATTERY CHARGER CONTROL MODULE OPERATION
  • Disconnect and inspect the battery charger control module connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the battery charger control module connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new battery charger control module.
REFER to: Battery Monitoring Sensor (414-01 Battery, Mounting and Cables, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

J7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST K : U0200:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0200:87 Lost Communication With "Door Control Module B": Missing Message A continuous memory DTC that sets in the BCM if messages from the PDM through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • PDM
  • BCM
K1 CHECK THE COMMUNICATION NETWORK
  • Using a diagnostic scan tool, perform a network test.

Does the PDM pass the network test?
Yes GO to K2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

K2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to K3

K3 RETRIEVE THE PDM (PASSENGER DOOR MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the PDM self-test.

Are any Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Locks, Latches and Entry Systems (501-14 Handles, Locks, Latches and Entry Systems, Diagnosis and Testing).
No GO to K4

K4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0200:87 still present?
Yes GO to K5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

K5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0200:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0200:87 set in other modules?
Yes GO to K6
No GO to K7

K6 CHECK FOR CORRECT PDM (PASSENGER DOOR MODULE) OPERATION
  • Disconnect and inspect the PDM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the PDM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new PDM.
REFER to: Passenger Door Module (PDM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

K7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST L : U0208:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0208:87 Lost Communication With "Seat Control Module A": Missing Message A continuous memory DTC that sets in the BCM if messages from the DSM through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • DSM
  • BCM
L1 CHECK THE COMMUNICATION NETWORK
  • Using a diagnostic scan tool, perform a network test.

Does the DSM pass the network test?
Yes GO to L2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

L2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to L3

L3 RETRIEVE THE DSM (DRIVER FRONT SEAT MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the DSM self-test.

Are any Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Front Seats (501-10A Front Seats, Diagnosis and Testing).
No GO to L4

L4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0208:87 still present?
Yes GO to L5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

L5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0208:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0208:87 set in other modules?
Yes GO to L6
No GO to L7

L6 CHECK FOR CORRECT DSM (DRIVER FRONT SEAT MODULE) OPERATION
  • Disconnect and inspect the DSM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the DSM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new DSM.
REFER to: Driver Front Seat Module (DSM) (501-10A Front Seats, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

L7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST M : U0212:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0212:87 Lost Communication With Steering Column Control Module: Missing Message A continuous memory DTC that sets in the BCM if messages from the SCCM through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • SCCM
  • BCM
M1 CHECK THE COMMUNICATION NETWORK
  • Using a diagnostic scan tool, perform a network test.

Does the SCCM pass the network test?
Yes GO to M2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

M2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to M3

M3 RETRIEVE THE SCCM (STEERING COLUMN CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the SCCM self-test.

Are any Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Steering Wheel and Column Electrical Components (211-05 Steering Wheel and Column Electrical Components, Diagnosis and Testing).
No GO to M4

M4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0212:87 still present?
Yes GO to M5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

M5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0212:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0212:87 set in other modules?
Yes GO to M6
No GO to M7

M6 CHECK FOR CORRECT SCCM (STEERING COLUMN CONTROL MODULE) OPERATION
  • Disconnect and inspect the SCCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the SCCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new SCCM.
REFER to: Steering Column Control Module (SCCM) (211-05 Steering Wheel and Column Electrical Components, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

M7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST N : U0230:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0230:87 Lost Communication With Rear Gate Module: Missing Message A continuous memory DTC that sets in the BCM if messages from the RGTM through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • RGTM module
  • BCM
N1 CHECK THE COMMUNICATION NETWORK
  • Using a diagnostic scan tool, perform a network test.

Does the RGTM pass the network test?
Yes GO to N2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

N2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to N3

N3 RETRIEVE THE RGTM (REAR GATE TRUNK MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the RGTM self-test.

Are any Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Body Closures (501-03 Body Closures, Diagnosis and Testing).
No GO to N4

N4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0230:87 still present?
Yes GO to N5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

N5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0230:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0230:87 set in other moduleS?
Yes GO to N6
No GO to N7

N6 CHECK FOR CORRECT RGTM (REAR GATE TRUNK MODULE) OPERATION
  • Disconnect and inspect the RGTM connector.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the RGTM connector. Make sure it seats and latches correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new RGTM.
REFER to: Rear Gate Trunk Module (RGTM) (501-03 Body Closures, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

N7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST O : U0232:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0232:87 Lost Communication With Side Obstacle Detection Control Module "A": Missing Message A continuous memory DTC that sets in the BCM if messages from the SODL through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • SODL
  • BCM
O1 CHECK THE COMMUNICATION NETWORK
  • Using a diagnostic scan tool, perform a network test.

Does the SODL pass the network test?
Yes GO to O2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

O2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to O3

O3 RETRIEVE THE SODL (SIDE OBSTACLE DETECTION CONTROL MODULE LH) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the SODL self-test.

Are any SODL Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Blind Spot Information System (419-04 Side and Rear Vision, Diagnosis and Testing).
No GO to O4

O4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0232:87 still present?
Yes GO to O5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

O5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0232:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0232:87 set in other modules?
Yes GO to O6
No GO to O7

O6 CHECK FOR CORRECT SODL (SIDE OBSTACLE DETECTION CONTROL MODULE LH) OPERATION
  • Disconnect and inspect the SODL connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the SODL connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new SODL.
REFER to: Side Obstacle Detection Control Module (419-04 Side and Rear Vision, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

O7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST P : U0233:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0233:87 Lost Communication With Side Obstacle Detection Control Module "B": Missing Message A continuous memory DTC that sets in the BCM if messages from the SODR through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • SODR
  • BCM
P1 CHECK THE COMMUNICATION NETWORK
  • Using a diagnostic scan tool, perform a network test.

Does the SODR pass the network test?
Yes GO to P2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

P2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to P3

P3 RETRIEVE THE SODR (SIDE OBSTACLE DETECTION CONTROL MODULE RH) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the SODL self-test.

Are any SODR Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Blind Spot Information System (419-04 Side and Rear Vision, Diagnosis and Testing).
No GO to P4

P4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0233:87 still present?
Yes GO to P5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

P5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0233:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0233:87 set in other modules?
Yes GO to P6
No GO to P7

P6 CHECK FOR CORRECT SODR (SIDE OBSTACLE DETECTION CONTROL MODULE RH) OPERATION
  • Disconnect and inspect the SODR connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the SODR connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new SODR.
REFER to: Side Obstacle Detection Control Module (419-04 Side and Rear Vision, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

P7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST Q : U023A:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U023A:87 Lost Communication With Image Processing Module A: Missing Message A continuous memory DTC that sets in the BCM if messages received from the IPMA are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • IPMA
  • GWM concern
  • BCM
Q1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Using a diagnostic scan tool, perform a network test.

Does the IPMA pass the network test?
Yes GO to Q2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

Q2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to Q3

Q3 RETRIEVE THE IPMA (IMAGE PROCESSING MODULE A) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the IPMA self-test.

Are any Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Lane Keeping System (419-07 Lane Keeping System, Diagnosis and Testing).
No GO to Q4

Q4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U023A:87 still present?
Yes GO to Q5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

Q5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U023A:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U023A:87 set in other modules?
Yes GO to Q6
No GO to Q7

Q6 CHECK FOR CORRECT IPMA (IMAGE PROCESSING MODULE A) OPERATION
  • Ignition OFF.
  • Disconnect and inspect all IPMA connections.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect all IPMA connections. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new IPMA.
REFER to: Image Processing Module A (IPMA) (419-07 Lane Keeping System, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

Q7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Ignition OFF.
  • Disconnect and inspect all BCM connections.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect all BCM connections. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST R : U0252:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0252:87 Lost Communication With Lighting Control Module- Rear "B": Missing Message A continuous memory DTC that sets in the BCM if messages received from TRM the are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • TRM
  • GWM concern
  • BCM
R1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Using a diagnostic scan tool, perform a network test.

Does the TRM pass the network test?
Yes GO to R2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

R2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to R3

R3 RETRIEVE THE TRM (TRAILER MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the TRM self-test.

Are any Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Trailer Lamps (417-01 Exterior Lighting, Diagnosis and Testing).
No GO to R4

R4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0252:87 still present?
Yes GO to R5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

R5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0252:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0252:87 set in other modules?
Yes GO to R6
No GO to R7

R6 CHECK FOR CORRECT TRM (TRAILER MODULE) OPERATION
  • Ignition OFF.
  • Disconnect and inspect all TRM connections.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect all TRM connections. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new TRM.
REFER to: Trailer Module (TRM) (417-01 Exterior Lighting, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

R7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Ignition OFF.
  • Disconnect and inspect all BCM connections.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect all BCM connections. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST S : U0253:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0253:87 Lost Communication With Accessory Protocol Interface Module: Missing Message A continuous memory DTC that sets in the BCM if messages from the APIM through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • APIM
  • BCM
S1 CHECK THE COMMUNICATION NETWORK
  • Using a diagnostic scan tool, perform a network test.

Does the APIM pass the network test?
Yes GO to S2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

S2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to S3

S3 RETRIEVE THE APIM (SYNC MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the APIM self-test.

Are any Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Information and Entertainment System (415-00 Information and Entertainment System - General Information, Diagnosis and Testing).
No GO to S3

S4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0253:87 still present?
Yes GO to S5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

S5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0253:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0253:87 set in other modules?
Yes GO to S6
No GO to S7

S6 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION
  • Disconnect and inspect the APIM connector.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the APIM connector. Make sure it seats and latches correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern,
   Click here to access Guided Routine (APIM). Internet Explorer version 11 or greater is required to perform this Pinpoint Test.
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

S7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST T : U0256:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0256:87 Lost Communication With Front Controls Interface Module "A": Missing Message A continuous memory DTC that sets in the BCM if messages from the FCIMB through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • FCIMB
  • BCM
T1 CHECK THE COMMUNICATION NETWORK
  • Using a diagnostic scan tool, perform a network test.

Does the FCIM pass the network test?
Yes GO to T2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

T2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to T3

T3 RETRIEVE THE FCIMB (FRONT CONTROLS INTERFACE MODULE B) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the FCIMB self-test.

Are any Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Information and Entertainment System (415-00 Information and Entertainment System - General Information, Diagnosis and Testing).
No GO to T4

T4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0256:87 still present?
Yes GO to T5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

T5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0256:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0256:87 set in other modules?
Yes GO to T6
No GO to T7

T6 CHECK FOR CORRECT FCIMB (FRONT CONTROLS INTERFACE MODULE B) OPERATION
  • Disconnect and inspect the FCIMB connector.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the FCIMB connector. Make sure it seats and latches correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new FCIMB.
REFER to: Front Controls Interface Module B (FCIMB) (415-00 Information and Entertainment System - General Information, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

T7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST U : U0293:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - System Operation and Component Description (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0293:87 Lost Communication with Hybrid/EV Powertrain Control Module: Missing Message A continuous memory DTC that sets in the BCM if messages from the SOBDMC through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • SOBDMC
  • BCM
U1 CHECK THE COMMUNICATION NETWORK
  • Using a diagnostic scan tool, perform a network test.

Does the SOBDMC pass the network test?
Yes GO to U2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

U2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test Z
No GO to U3

U3 RETRIEVE THE SOBDMC (SECONDARY ON-BOARD DIAGNOSTIC CONTROL MODULE C) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the SOBDMC self-test.

Are any SOBDMC Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Electronic Engine Controls (303-14 Electronic Engine Controls) .
No GO to U4

U4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0293:87 still present?
Yes GO to U5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

U5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0293:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0293:87 set in other modules?
Yes GO to U6
No GO to U7

U6 CHECK FOR CORRECT SOBDMC (SECONDARY ON-BOARD DIAGNOSTIC CONTROL MODULE C) OPERATION
  • Disconnect and inspect the SOBDMC connector.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the SOBDMC connector. Make sure it seats and latches correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new SOBDMC.
REFER to: Hybrid Powertrain Control Module [SOBDMC] (303-14 Electric Powertrain Control) .
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

U7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST V : U1000:00

Normal Operation and Fault Conditions

The BCM uses solid state drivers (Field Effect Transistors (FET)) to control the output of several vehicle systems. When an overload occurs on any of these drivers, the BCM disables the output and tracks the number of repetitive faults on each of these circuits. The module compares this number of overloads to three progressive thresholds established for each circuit. At each threshold, DTC U1000:00 sets along with the DTC associated with the affected circuit. REFER to: Module Controlled Functions - Overview (419-10 Multifunction Electronic Modules, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U1000:00 Solid State Driver Protection Active -Driver Disabled: No Sub Type Information A continuous memory DTC that sets when the BCM has disabled a circuit due to a repetitive circuit overload and a progressive threshold is met.

Possible Sources

  • BCM output circuit short
  • BCM
V1 REVIEW THE DIAGNOSTIC TROUBLE CODES (DTCS)
  • Review the Diagnostic Trouble Codes (DTCs) from the BCM self-test.

Are any Diagnostic Trouble Codes (DTCs) present besides U1000:00?
Yes CORRECT the Diagnostic Trouble Codes (DTCs). REFER to the BCM DTC Chart.
No GO to V2

V2 REPEAT THE BCM (BODY CONTROL MODULE) SELF-TEST
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Repeat the BCM self-test.

Is DTC U1000:00 still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The circuit short has been repaired.

PINPOINT TEST W : U2005:85

Normal Operation and Fault Conditions

The BCM monitores various inputs from all modules that communicate on the CAN. When a vehicle speed signal is detected while the vehicle is stationary, the BCM triggers DTC U2005:85.

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U2005:85 Vehicle Speed: Signal Above Allowable Range This DTC sets when the BCM detects a vehicle speed while the vehicle is stationary.

Possible Sources

  • PCM
  • ABS module
  • BCM
W1 CONFIRM THE DTC (DIAGNOSTIC TROUBLE CODE) RESETS
  • Make sure the vehicle is stationary and the BCM entry level requirements are met prior to performing the self-test.
  • Ignition ON.
  • Using the diagnostic scan tool, clear the DTC.
  • Wait 10 seconds.
  • Using the diagnostic scan tool, perform the BCM self-test.

Is DTC U2005:85 still present?
Yes Diagnose any observable symptoms that are present. GO to W2
No The system is operating correctly at this time. The DTC may have been falsely set by the BCM causing the signal to momentarily stop and set the DTC.

W2 REPEAT THE BCM (BODY CONTROL MODULE) SELF-TEST
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Repeat the BCM self-test.

Is DTC U2005:85 still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, DIAGNOSE any PCM or ABS module Diagnostic Trouble Codes (DTCs) causing a false vehicle speed signal.
No The system is operating correctly at this time. The circuit short has been repaired.

PINPOINT TEST X : U2100:00, U2101:00 OR U2200:00

Normal Operation and Fault Conditions

The BCM along with other control modules that are programmable must have the correct As-Built data installed.

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U2100:00 Initial Configuration Not Complete: No Sub Type Information This DTC sets when the BCM As-Built data installation was not installed completely or incorrectly.
BCM U2101:00 Control Module Configuration Incompatible: No Sub Type Information This DTC sets when the BCM As-Built data installation was not installed completely or incorrectly.
BCM U2200:00 Control Module Configuration Memory Corrupt: No Sub Type Information This DTC sets when the BCM As-Built data installation was not installed completely or incorrectly.

Possible Sources

  • BCM
X1 CONFIRM THE DTC (DIAGNOSTIC TROUBLE CODE) RESETS
  • Check vehicle service history for recent service actions related to the BCM.
  • Ignition ON.
  • Using the diagnostic scan tool, clear the DTC.
  • Wait 10 seconds.
  • Using the diagnostic scan tool, perform the BCM self-test.

Is DTC U2100:00, U2101:00 and/or U2200:00 still present?
Yes GO to X2
No The system is operating correctly at this time. The DTC may have been falsely set by the BCM causing the signal to momentarily stop and set the DTC.

X2 INSTALL BCM (BODY CONTROL MODULE) PMI (PROGRAMMABLE MODULE INSTALLATION)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Install BCM As-Built data from PTS following scan tool instructions.

Is DTC U2100:00, U2101:00 and/or U2200:00still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time.

PINPOINT TEST Y : BCM (BODY CONTROL MODULE) INPUT POWER VOLTAGE BELOW THRESHOLD

Refer to Wiring Diagrams Cell 13 for schematic and connector information.

Normal Operation and Fault Conditions

The BCM receives voltage at all times from the BJB.

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM B11D9:16 Vehicle Battery: Circuit Voltage Below Threshold A continuous and on-demand DTC that sets in the BCM if the BCM detects lower than expected battery voltage on the voltage supply input circuit.
BCM U3006:16 Control Module Input Power "A" Circuit/Open: Circuit Voltage Below Threshold A continuous and on-demand DTC that sets in the BCM if the BCM detects lower than expected battery voltage on the voltage supply input circuit.
BCM U3006:1C Control Module Input Power "A" Circuit/Open: Circuit Voltage Out Of Range A continuous and on-demand DTC that sets in the BCM if the BCM detects out of range voltage on the voltage supply input circuit.
BCM U3007:16 Control Module Input Power "B" Circuit/Open: Circuit Voltage Below Threshold A continuous DTC that sets in the BCM if the BCM detects lower than expected battery voltage on the voltage supply input circuit.
BCM U3013:16 Control Module Input Power "C" Circuit/Open: Circuit Voltage Below Threshold A continuous DTC that sets in the BCM if the BCM detects lower than expected battery voltage on the voltage supply input circuit.
BCM U3014:16 Control Module Input Power "D" Circuit/Open: Circuit Voltage Below Threshold A continuous DTC that sets in the BCM if the BCM detects lower than expected battery voltage on the voltage supply input circuit.

Possible Sources

  • Wiring, terminals or connectors
  • Charging system concern
  • Battery concern
  • BJB
  • BCM
Y1 RECHECK THE BCM (BODY CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Ignition ON.
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, perform the BCM self-test.

Is DTC B11D9:16, U3006:16, U3006:1C, U3007:16, U3013:16 or U3014:16 still present?
Yes GO to Y2
No The system is operating correctly at this time. The DTC may have been set due to a previous low battery voltage condition. CLEAR the DTC.

Y2 CHECK FOR CHARGING SYSTEM DIAGNOSTIC TROUBLE CODES (DTCS) SET IN OTHER MODULES
  • Using a diagnostic scan tool, retrieve all Diagnostic Trouble Codes (DTCs).

Are any charging system Diagnostic Trouble Codes (DTCs) recorded?
Yes DIAGNOSE the charging system concern.
REFER to: Charging System (414-00 Charging System - General Information, Diagnosis and Testing).
No GO to Y3

Y3 CHECK THE BATTERY CONDITION AND STATE OF CHARGE
  • Check the battery condition and verify the battery is fully charged.
    REFER to: Battery (414-01 Battery, Mounting and Cables, Diagnosis and Testing).

Is the battery OK and fully charged?
Yes GO to Y4
No If the battery is discharged, DIAGNOSE the cause of the low battery condition.
REFER to: Battery (414-01 Battery, Mounting and Cables, Diagnosis and Testing). If the battery condition fails, INSTALL a new battery.
REFER to: Battery (414-01 Battery, Mounting and Cables, Removal and Installation).

Y4 COMPARE THE BCM (BODY CONTROL MODULE) BATTERY VOLTAGE PID (PARAMETER IDENTIFICATION) WITH ACTUAL BATTERY VOLTAGE
  • Start the engine.
  • Turn on accessories (climate control blower on high speed and exterior lights).
  • Using a diagnostic scan tool,

    Access the  BCM  and monitor the  VPWR_RAW (V)  PID

  • With the engine running at idle, measure and record battery voltage:
    Positive Lead Measurement / Action Negative Lead

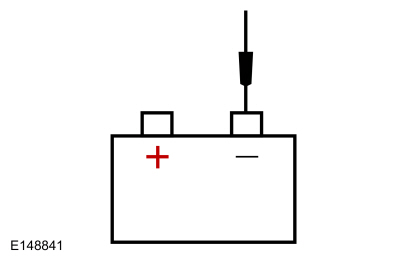

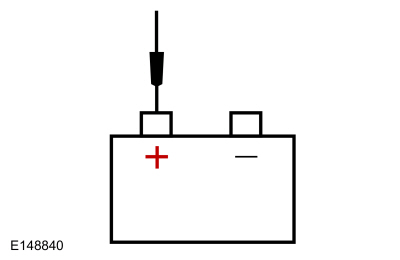

Is the recorded battery voltage within 0.2 volt of the PID?
Yes TURN the engine off, GO to Y7
No GO to Y5

Y5 CHECK THE BCM (BODY CONTROL MODULE) VOLTAGE SUPPLY CIRCUITS
  • Ignition OFF.
  • Disconnect BCM C2280G .
  • Disconnect BCM C2280H .
  • Ignition ON.
  • Measure:
    Positive Lead Measurement / Action Negative Lead
      C2280G-21   Ground
      C2280G-22   Ground
    Positive Lead Measurement / Action Negative Lead
      C2280H-1   Ground

Are the voltages within 0.2 volt of the recorded battery voltage?
Yes GO to Y6
No REPAIR the circuit in question for high resistance.

Y6 CHECK THE BCM (BODY CONTROL MODULE) PROCESSOR GROUNDS
  • Ignition OFF.
  • Disconnect BCM C2280C .
  • Measure:
    Positive Lead Measurement / Action Negative Lead
      C2280C-6   Ground
      C2280C-7   Ground
      C2280C-10   Ground

Are the resistances less than 3 ohms?
Yes GO to Y7
No REPAIR the circuit in question for high resistance.

Y7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals – clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect all BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST Z : BCM (BODY CONTROL MODULE) INPUT POWER VOLTAGE ABOVE THRESHOLD

Refer to Wiring Diagrams Cell 13 for schematic and connector information.

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM B11D9:17 Vehicle Battery: Circuit Voltage Above Threshold A continuous and on-demand DTC that sets in the BCM if the BCM detects higher than expected battery voltage on the voltage supply input circuit.
BCM U3006:17 Control Module Input Power "A" Circuit/Open: Circuit Voltage Above Threshold A continuous and on-demand DTC that sets in the BCM if the BCM detects higher than expected battery voltage on the voltage supply input circuit.
BCM U3006:1C Control Module Input Power "A" Circuit/Open: Circuit Voltage Out Of Range A continuous and on-demand DTC that sets in the BCM if the BCM detects out of range voltage on the voltage supply input circuit.
BCM U3007:17 Control Module Input Power "B" Circuit/Open: Circuit Voltage Above Threshold A continuous DTC that sets in the BCM if the BCM detects higher than expected battery voltage on the voltage supply input circuit.
BCM U3013:17 Control Module Input Power "C" Circuit/Open: Circuit Voltage Above Threshold A continuous DTC that sets in the BCM if the BCM detects higher than expected battery voltage on the voltage supply input circuit.
BCM U3014:17 Control Module Input Power "D" Circuit/Open: Circuit Voltage Above Threshold A continuous DTC that sets in the BCM if the BCM detects higher than expected battery voltage on the voltage supply input circuit.

Possible Sources

  • Charging system concern
  • BCM
Z1 CHECK FOR OVERCHARGING DIAGNOSTIC TROUBLE CODES (DTCS) SET IN OTHER MODULES
  • Ignition ON.
  • Using a diagnostic scan tool, retrieve all Diagnostic Trouble Codes (DTCs).

Are any charging system Diagnostic Trouble Codes (DTCs) recorded?
Yes DIAGNOSE the charging system concern.
REFER to: Charging System (414-00 Charging System - General Information, Diagnosis and Testing).
No GO to Z2

Z2 CHECK THE BATTERY VOLTAGE
  • Turn off all interior/exterior lights and accessories.
  • Start and run the engine at approximately 2,000 rpm for three minutes while monitoring the battery voltage.
    Positive Lead Measurement / Action Negative Lead

Does the battery voltage rise to 16 volts or higher?
Yes DIAGNOSE the over-charging system concern.
REFER to: Charging System (414-00 Charging System - General Information, Diagnosis and Testing).
No GO to Z3

Z3 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:17, U3006:17, U3006:1C, U3007:17, U3013:17 or U3014:17 present?
Yes GO to Z4
No The system is operating correctly at this time. The DTC may have been caused by module connections or may have been set previously during battery charging or while jump starting the vehicle. ADDRESS the root cause of any connector or pin issues.

Z4 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals – clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST AA : U3000:49

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U3000:49 Control Module: Internal Electronic Failure This DTC sets when the BCM detects an internal failure.

Possible Sources

  • BCM
AA1 CONFIRM THE DTC (DIAGNOSTIC TROUBLE CODE) RESETS
  • Check vehicle service history for recent service actions related to the BCM.
  • Ignition ON.
  • Using the diagnostic scan tool, clear the DTC.
  • Wait 10 seconds.
  • Using the diagnostic scan tool, perform the BCM self-test.

Is DTC U3000:49 still present?
Yes GO to AA2
No The system is operating correctly at this time. The DTC may have been falsely set by the BCM causing the signal to momentarily stop and set the DTC.

AA2 INSTALL BCM (BODY CONTROL MODULE) PMI (PROGRAMMABLE MODULE INSTALLATION)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Install BCM As-Built data from PTS following scan tool instructions.

Is DTC U2100:00, U2101:00 and/or U2200:00still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time.


    Description and Operation - Module Controlled Functions - System Operation and Component Description

    System Operation BCM The BCM controls various systems by monitoring inputs from switches, sensors and network messages from other modules and components on the HS-CAN1, LIN and the GWM...

    Diagnosis and Testing - Body Control Module C (BCMC)

    Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation)...

    Other information:

    Lincoln Aviator 2020-2024 Service Manual: Description and Operation - Vehicle Dynamic Suspension - Vehicles With: Air Suspension - System Operation and Component Description


    System Operation System Diagram Item Description 1 HS-CAN2 2 HS-CAN1 3 HS-CAN3 4 SUMA and Air Compressor Assembly 5 LHF Air Spring Solenoid 6 PSCM 7 PCM 8 ABS 9 LHF Height Sensor 10 RHF Height Sensor 11 LHR Height Sensor 12 RHR Height Sensor 13 BCM 14 RHF Air Spring Solenoid 15 LHR Air Spring Solenoid 16 RHR Air Spring Solenoid 17 IPC 18 RCM 19 GWM Network Message Chart   Module Network Input Messages - SUMA Broadcast Message Originating Module Message Purpose ABS active ABS module Indicates the current ABS activity, on or off...

    Lincoln Aviator 2020-2024 Service Manual: Description and Operation - Adaptive Steering - System Operation and Component Description


    System Operation System Diagram Item Description 1 SECM 2 ECU 3 Private CAN 4 IPMA 5 SIMA 6 PSCM 7 GWM 8 Locking solenoid 9 SASM 10 BCM 11 PCM 12 IPC 13 SUMA 14 RCM 15 Motor 16 HVAC module 17 APIM Network Input Message Chart   SECM Network Input Messages Broadcast Message Originating Module Message Purpose Active front steering request   PSCM Requests steering angle changes for stability control events...

    Categories

    Adjusting the Steering Wheel - Vehicles With: Manual Adjustable Steering Column

    WARNING: Do not adjust the steering wheel when your vehicle is moving.

    Note: Make sure that you are sitting in the correct position.

    Unlock the steering column. Adjust the steering wheel to the desired position.

    Lincoln Aviator. Column

    Lock the steering column.

    read more


    Copyright © 2024 www.liaviator2.com
