Lincoln Aviator 2020-2024 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Description and Operation - Transmission Fluid Auxiliary Pump
Lincoln Aviator: Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Description and Operation - Transmission Fluid Auxiliary Pump
.jpg)

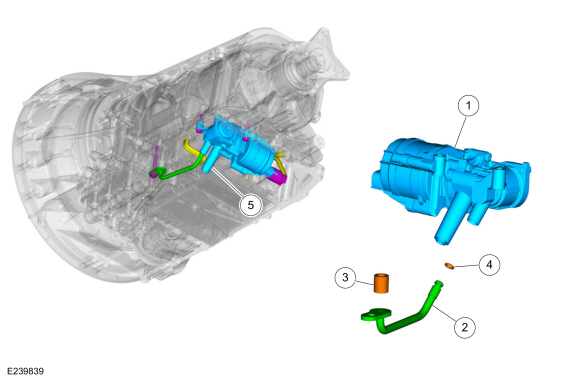

| Item | Description |
| 1 | Transmission fluid auxiliary pump |
| 2 | Transmission fluid auxiliary pump tube |
| 3 | Transmission fluid auxiliary pump tube seal |
| 4 | Transmission fluid auxiliary pump tube O-ring |
| 5 | Transmission fluid auxiliary pump fluid inlet |
10-speed transmissions with the auto-start stop feature are equipped with a transmission fluid auxiliary pump. This electronic pump is turned on before an engine stop event; allowing the transmission to remain engaged during the stop event. This allows quick response on the engine restart because the transmission is already in gear. The transmission fluid auxiliary pump does not have sufficient flow to apply clutches, but can keep clutches on when the engine stops and the main hydraulic pump stops providing pressure.
Description and Operation - Planetary Assembly
Planetary Gearset Exploded View
Item
Description
1
Ring gear No. 1
2
Sun gear No...
Description and Operation - Torque Converter
Overview
Item
Description
1
TCC solenoid
2
TCC regulator valve assembly
3
TCC apply circuit
4
TCC release circuit
Torque Converter Hydraulic Circuits (TCC Released)
Item
Description
1
LPC pressure
2
TCC solenoid
3
TCC control pressure
4
TCC regulator valve
5
TCC release pressure
6
TCC
7
TCC exhaust to TCC regulator valve
8
Torque converter anti-drainback valve
9
TCC exhaust
10
Pump output
11
Decreased pressure from main requlator valve
Line
pressure fills the converter feed circuit with fluid up to 1,103 kPa
(160 psi)...
