Lincoln Aviator: Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Description and Operation - Pump Assembly
Overview
|
Item
|
Description
|
|
1
|
Transmission fluid pump drive gear
|
|
2
|
Transmission fluid pump idler gear
|
|
3
|
Transmission fluid pump assembly
|
|
4
|
Transmission fluid filter
|
The
transmission fluid in the sump area at the bottom of the transmission
case flows through a transmission fluid filter to the pump assembly. The
pump is bolted to the bottom of the case and is driven by a set of
gears mounted on the stator support and turned by the torque converter.

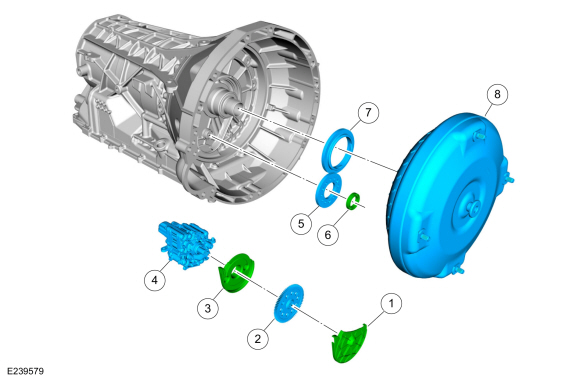

Pump Assembly Exploded View
|
Item
|
Description
|
|
1
|
Transmission fluid pump driven gear outer cover
|
|
2
|
Transmission fluid pump driven gear
|
|
3
|
Transmission fluid pump driven gear inner cover
|
|
4
|
Transmission fluid pump
|
|
5
|
Transmission fluid pump idler gear
|
|
6
|
Transmission fluid pump idler gear bearing
|
|
7
|
Transmission fluid pump drive gear
|
|
8
|
Torque converter
|
Item
Description
1
Internal wiring harness retaining bolt
2
Internal wiring harness
3
Park lock pawl solenoid
4
Solenoid retaining plate bolts
5
Solenoid retaining plate
6
TCC solenoid
7
LPC solenoid
8
Shift solenoid retaining plate bolts
9
Shift solenoid retaining plate
10
SSD
11
SSE
12
SSB
13
SSC
14
SSF
15
SSA
16
TFT
17
Valve channel plate bolts
18
Valve channel plate
19
Lower-to-upper valve body bolts
20
Lower valve body
21
Upper valve body
22
Valve body dowel pins
Lower Valve Body
1
Valve body separator plate bolts
2
Valve body separator plate
3
TCC damper
4
LPC damper assembly
5
Check valve assemblies
6
Check balls (quantity 5)
7
LPC anti-backflow valve assembly
8
TCC priority valve assembly
9
Park lock pawl valve
10
A clutch control valve
11
SSA
12
F clutch control valve
13
SSF
14
C clutch control valve
15
SSC
16
B clutch control valve
17
SSB
18
E clutch control valve
19
SSE
20
D clutch control valve
21
SSD
22
Shift solenoid retainers
Upper Valve Body
1
Lube control valve assembly
2
Plug and spring assembly
3
C clutch latch valve assembly
4
B clutch latch valve assembly
5
F clutch latch valve assembly
6
A clutch latch valve assembly
7
Plug and spring assembly
8
TCC regulator valve assembly
9
Main regulator valve assembly
The main control consists of a upper and lower valve body with solenoids that are controlled by a remote mounted TCM or the PCM...
Planetary Gearset Exploded View
Item
Description
1
Ring gear No. 1
2
Sun gear No...
