NOTE: The available speaker configurations are shown first. The remaining hidden audio/SYNC system components and various cable routings follow the speaker configurations.

NOTE: Some vehicles may not be equipped with all the optional components shown.

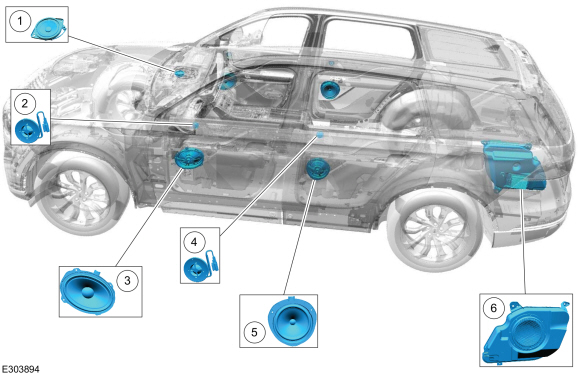

10 Speaker Configuration


Item Description
1 Instrument panel center speaker
2 Left/right front door tweeter speakers
3 Left/right front door woofer speakers
4 Left/right rear door tweeter speakers
5 Left/right rear door woofer speakers
6 Subwoofer amplifier and speaker

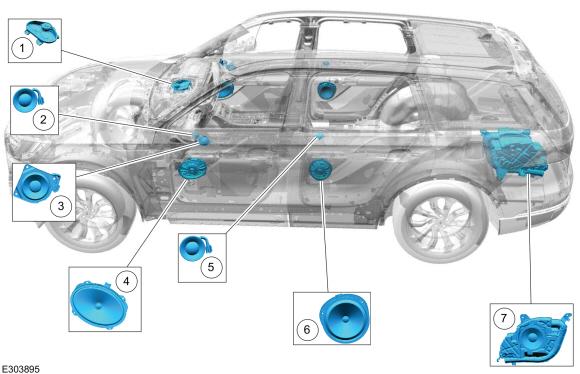

14 Speaker Configuration


Item Description
1 Instrument panel center speaker (counts as 3 speakers)
2 Left/right front door tweeter speakers
3 Left/right front door midrange speakers
4 Left/right front door woofer speakers
5 Left/right rear door tweeter speakers
6 Left/right rear door woofer speakers
7 Subwoofer speaker

28 Speaker Configuration


Item Description
1 Instrument panel center speaker (counts as 3 speakers)
2 Left/right front door tweeter speakers
3 Left/right front door midrange speakers
4 Left/right front door woofer speakers
5 Left/right front overhead speakers (counts as 2 speakers each)
6 Left/right rear door tweeter speakers
7 Left/right rear door woofer speakers
8 Left/right rear door midrange speakers
9 Left/right rear overhead speakers (counts as 2 speakers each)
10 Left/right D-pillar speakers (counts as 2 speakers each)
11 Subwoofer speaker

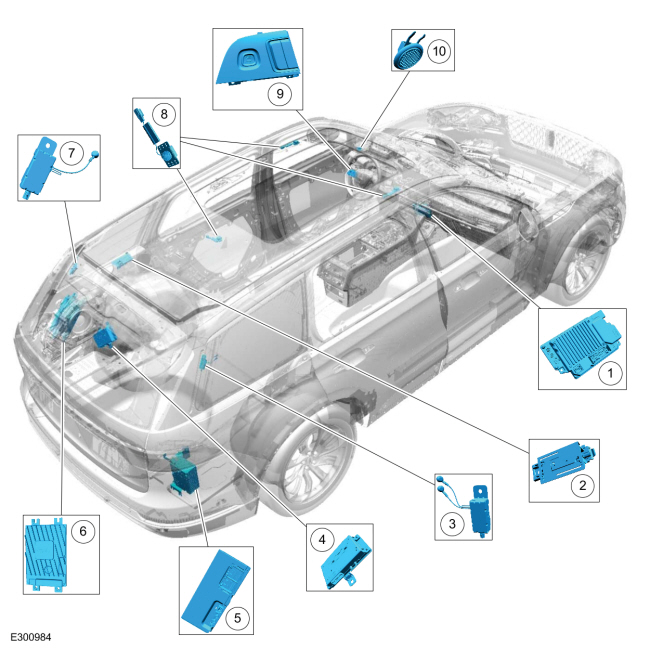

Audio/SYNC System Hidden Components


Item Description
1 APIM
2 TCU antenna
3 AM/ FM1 antenna amplifier
4 TCU
5 ACM
6 DSP (for the 10 speaker system, this is the location of the subwoofer amplifier)
7 FM2 diversity antenna amplifier
8 ANC microphones
9 SIMA (left upper steering wheel switch)
10 Voice microphone

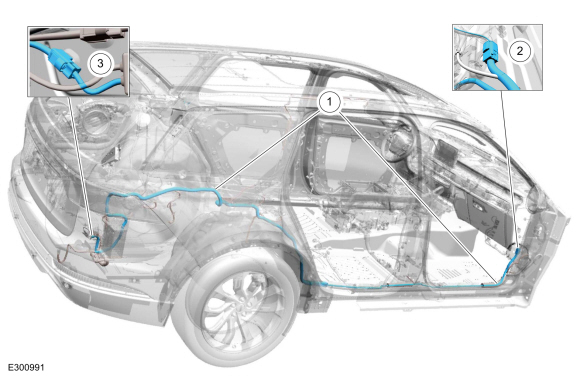

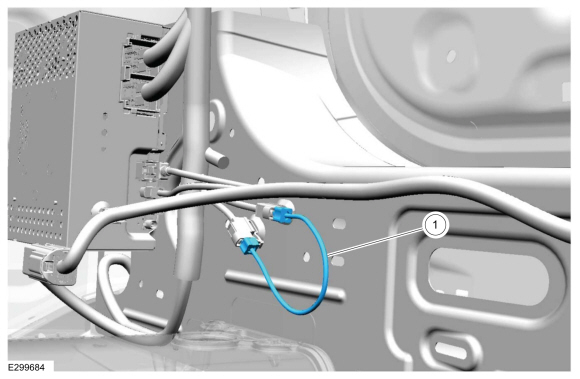

USB Cable Routing


Item Description
1 Front USB cable
2 Rear USB cable
3 USB cable in-line connection

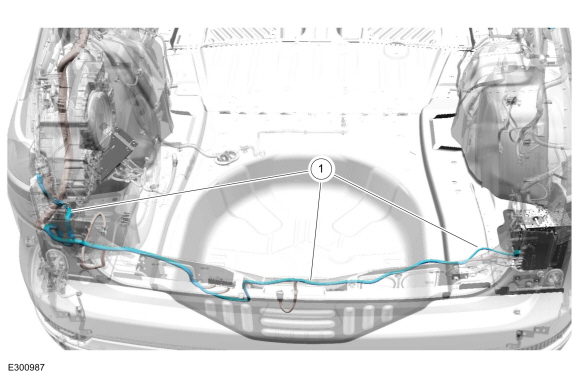

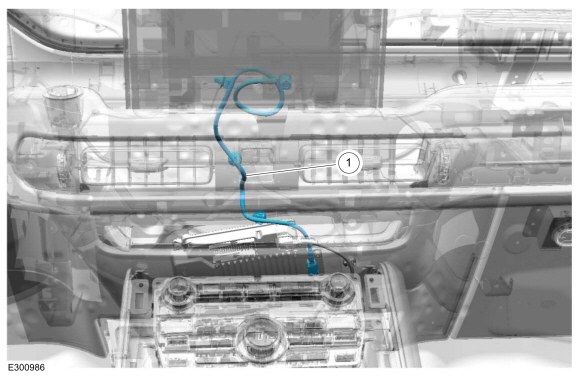

LVDS Cable Routing


Item Description
1 LVDS cable

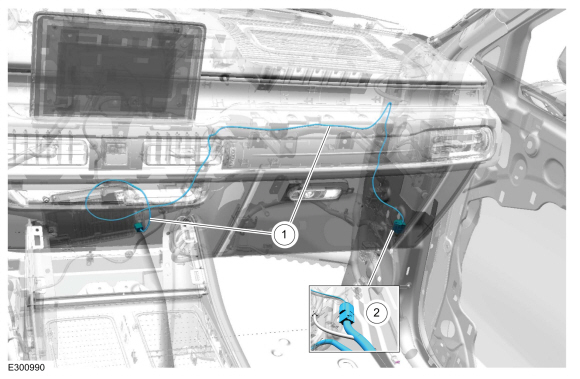

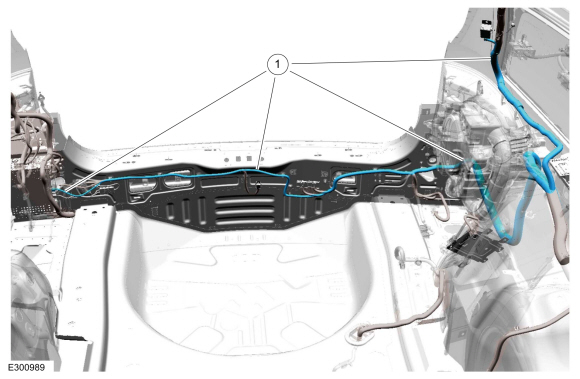

Automobile Audio Bus (A2B) Cable Routing


Item Description
1 Automobile Audio Bus (A2B) cable

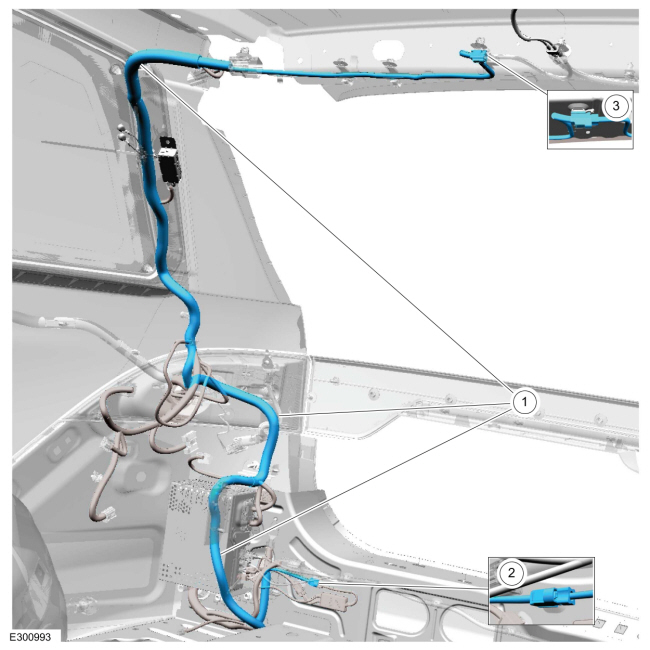

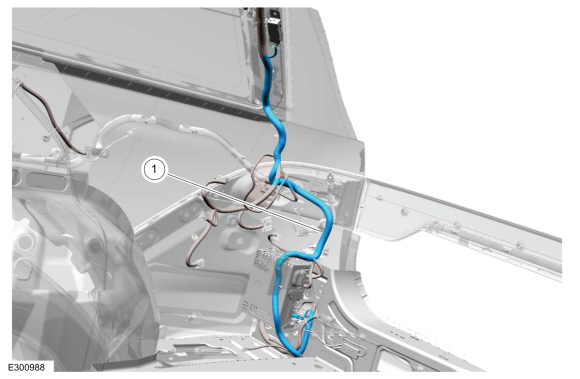

AM/ FM1 Antenna Cable Routing


Item Description
1 AM/ FM1 antenna cable

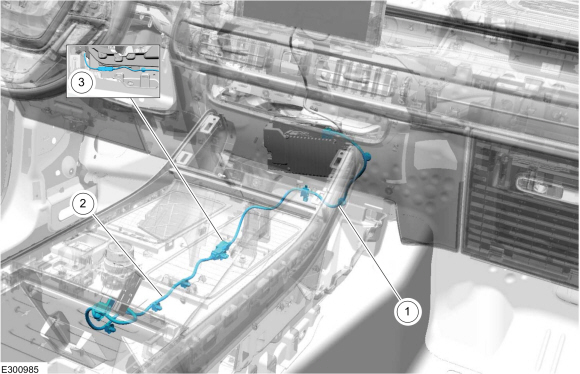

FM2 Diversity Antenna Cable Routing


Item Description
1 FM2 diversity antenna cable

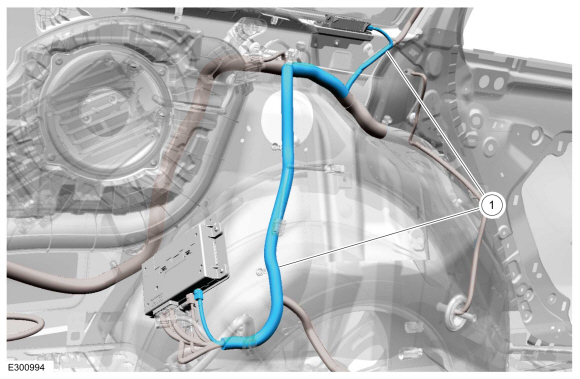

Front GPS Antenna Cable Routing


Item Description
1 Front GPS antenna cable antenna cable
2 Front GPS antenna cable in-line connection

Front Center GPS Antenna Cable Routing


Item Description
1 Center front GPS antenna cable antenna cable
2 Front GPS antenna cable in-line connection
3 Center front GPS antenna cable in-line connection

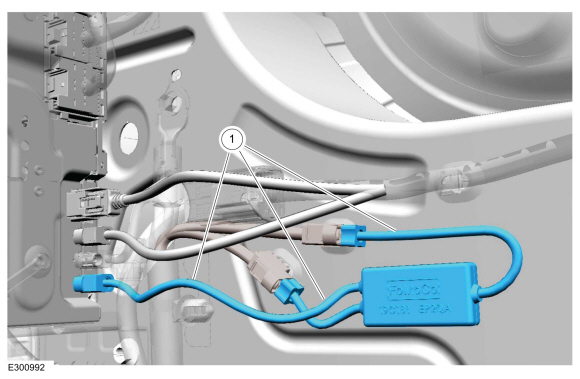

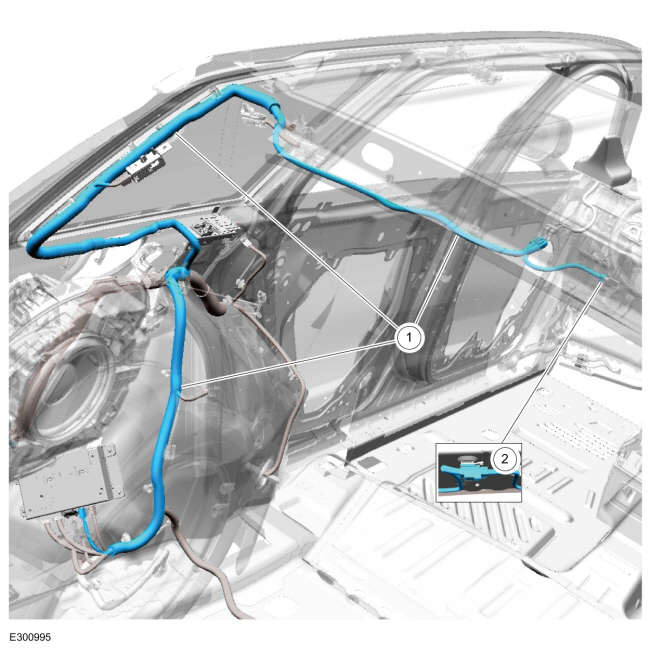

Rear Center GPS Antenna Cable Routing - Vehicles Equipped With Satellite Radio


Item Description
1 Center rear GPS antenna cable (satellite/ GPS splitter)

Rear Center GPS Antenna Cable Routing - Vehicles Not Equipped With Satellite Radio


Item Description
1 Center rear GPS antenna cable

Rear GPS Antenna Cable Routing


Item Description
1 Rear GPS antenna cable
2 Center rear GPS antenna in-line connection
3 Rear GPS antenna in-line connection

TCU Antenna Cable Routing


Item Description
1 TCU antenna cable

Cellular Antenna Cable Routing


Item Description
1 Cellular antenna cable
2 Rear GPS antenna cable in-line connection

    Information and Entertainment System - General Information

    ..

    Description and Operation - Information and Entertainment System - Overview
