Lincoln Aviator: Front Suspension - RWD / Removal and Installation - Wheel Studs
Special Tool(s) /
General Equipment
Removal
NOTICE:
Suspension fasteners are critical parts that affect the
performance of vital components and systems. Failure of these fasteners
may result in major service expense. Use the same or equivalent parts if
replacement is necessary. Do not use a replacement part of lesser
quality or substitute design. Tighten fasteners as specified.
-
Remove the wheel bearing and wheel hub.
Refer to: Front Wheel Bearing and Wheel Hub (204-01A Front Suspension - RWD, Removal and Installation).
Refer to: Front Wheel Bearing and Wheel Hub (204-01B Front Suspension - AWD, Removal and Installation).
-

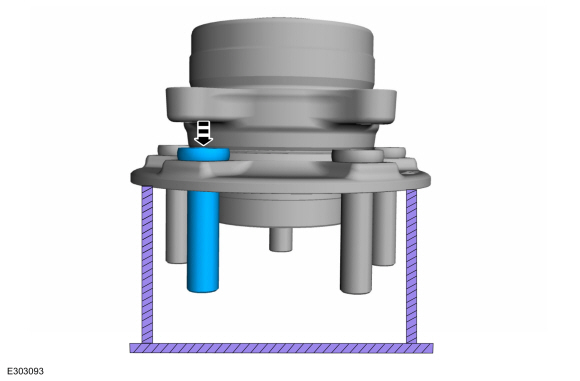

Press the wheel stud from the wheel bearing and wheel hub.
Use the General Equipment: Hydraulic Press
-

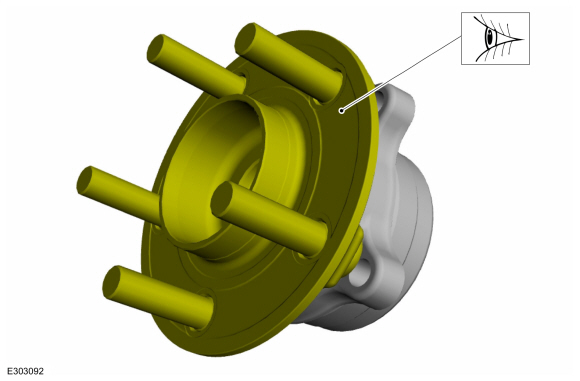

Inspect the wheel bearing and wheel hub for damage. Replace as necessary.
Installation
-

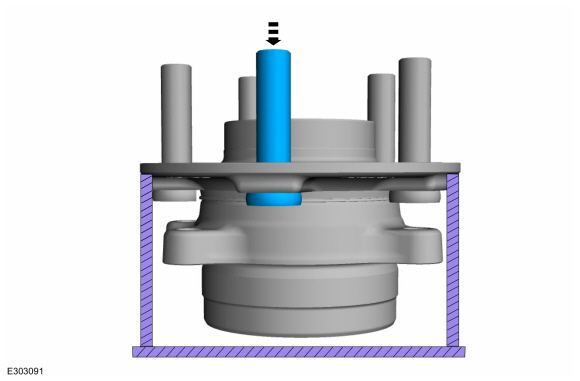

Press the wheel stud into the wheel bearing and wheel hub.
Use the General Equipment: Hydraulic Press
-
Install the wheel bearing and wheel hub.
Refer to: Front Wheel Bearing and Wheel Hub (204-01A Front Suspension - RWD, Removal and Installation).
Refer to: Front Wheel Bearing and Wheel Hub (204-01B Front Suspension - AWD, Removal and Installation).
