Lincoln Aviator: Steering Wheel and Column Electrical Components / Removal and Installation - Steering Column Multifunction Switch RH
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the steering column shrouds.
Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
NOTE:
Make sure the component terminals are not bent or damaged.

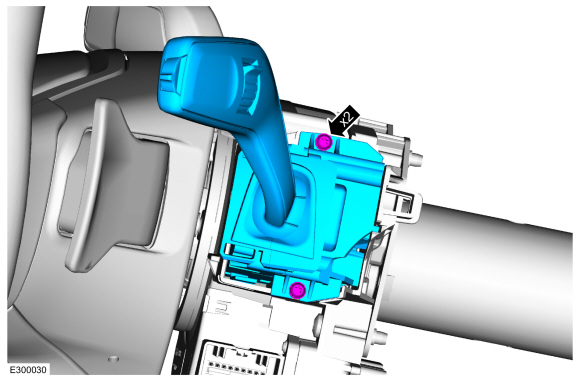

Remove the retainers and the RH steering column multifunction switch.
Installation
-
To install, reverse the removal procedure.
