Lincoln Aviator: Steering Wheel and Column Electrical Components / Removal and Installation - Steering Column Control Switch

Removal and Installation - Steering Column Control Module (SCCM) - Vehicles With: Adaptive Steering

Removal NOTE: Removal steps in this procedure may contain installation details. NOTE: Make sure the road wheels are in the straight ahead position, regardless of steering wheel position...

Removal and Installation - Steering Column Multifunction Switch LH

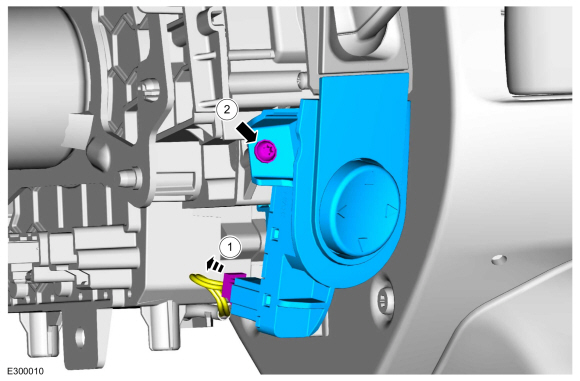

Removal NOTE: Removal steps in this procedure may contain installation details. Remove the steering column shrouds. Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation)...

Other information:

Lincoln Aviator 2020-2024 Service Manual: Description and Operation - Handles, Locks, Latches and Entry Systems - Component Location

N..

Lincoln Aviator 2020-2024 Service Manual: Description and Operation - High Voltage Battery Charging System - Plug-In Hybrid Electric Vehicle (PHEV) - System Operation and Component Description

System Diagram Item Description 1 SOBDMC/ISC (Inverter System Controller) 2 APIM 3 FCIM 4 BCM 5 BMS 6 DCDC 7 PCM 8 GWM 9 BECM 10 SOBDM/BCCM (Battery Charger Control Module) 11 EVSE (Electric Vehicle Supply Equipment) 12 High Voltage Battery 13 High Voltage Battery Junction Box 14 CSI (Charge Status Indicator) System Operation   Network Message Chart — SOBDM Broadcast Message Originating Module Message Purpose High voltage battery state of charge (SOC)   BECM Used to notify other vehicle modules that the high voltage battery has reached 100% SOC High voltage battery charge status (not ready, charge wait, ready, charging, charge complete, fault)   BECM Used to transition the charger between charging and ready states Vehicle operating mode Inverter System Controller (ISC) Vehicle must be in non-torque producing mode prior to charging Low voltage support   PCM Used to activate the low voltage output and support the low voltage system Gear lever position   PCM Used to determine transaxle gear state Ambient air temperature   PCM Ambient air temperature used for cooling strategy Maximum current request   BECM Used to limit and set target setpoint of charger Maximum voltage request   BECM Used to limit and set target setpoint of charger Charge contactor open/close   BECM High voltage battery charge contactor command 12V battery charge setpoint command   PCM This message is used to set the 12V battery charging voltage...
