Lincoln Aviator: Supplemental Restraint System / Removal and Installation - Seat Position Sensor
Removal
NOTE:
Typical LH (left-hand) seat shown, RH (right-hand) seat similar.
NOTE:
Removal steps in this procedure may contain installation details.
-

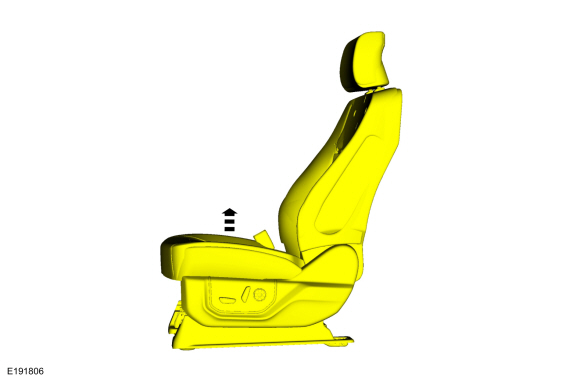

Raise the seat to the full up position.
-
-

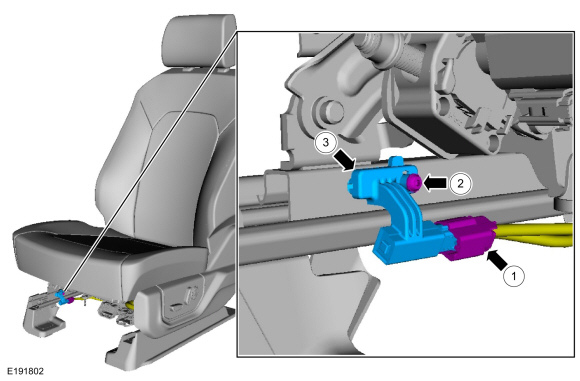

Disconnect the electrical connector.
-
Remove the screw.
Torque:
8 lb.in (0.9 Nm)
-
Remove the seat position sensor.
Installation
-
To install, reverse the removal procedure.
