Lincoln Aviator: Exhaust System - 3.0L EcoBoost / Removal and Installation - Muffler and Tailpipe
Removal
NOTE:
Muffler and tailpipe assemblies will vary in configuration
with different wheelbases and powertrains. Typical application shown.
NOTE:
Removal steps in this procedure may contain installation details.
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-

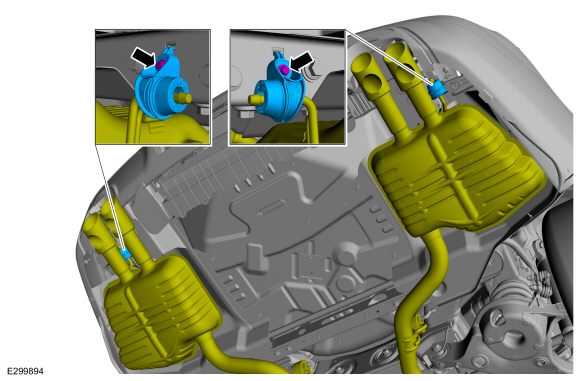

Remove the rear mufflers isolator nuts.
Torque:
26 lb.ft (35 Nm)
-

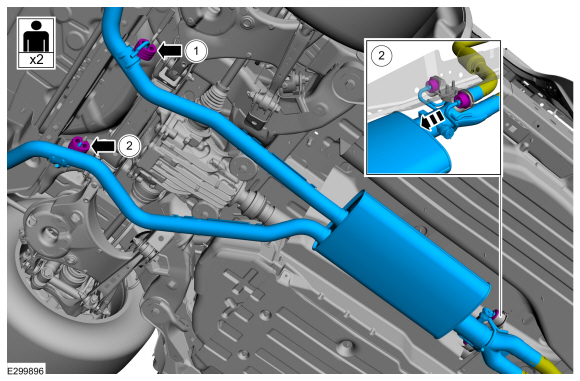

Loosen the exhaust clamps.
Torque:
41 lb.ft (55 Nm)
-
-

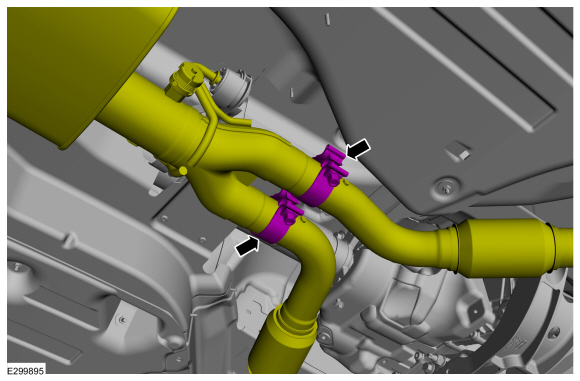

Detach the exhaust isolators.
-
Slide the muffler and tailpipe rearward out of the isolators and remove the muffler and tailpipe.
Installation
-
To install, reverse the removal procedure.
-
Clean all exhaust connections before reassembly.
-
Check the exhaust system for leaks.
Removal
NOTE:
The LH and RH exhaust flexible pipes are covered in this procedure. Remove the exhaust flexible pipe(s) necessary.
NOTE:
Removal steps in this procedure may contain installation details...
