Lincoln Aviator: Second Row Seats / Removal and Installation - Heated Second Row Seat Module

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The heated second row seat module is located under the RH (right hand) second row seat cushion frame.

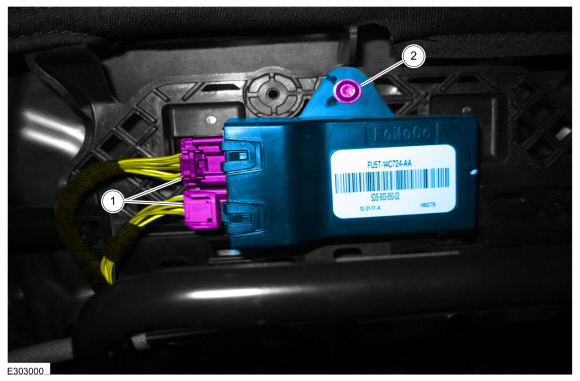

  1. Remove the heated second row seat module.
    1. Disconnect the electrical connectors.
    1. Remove the bolt.
      Torque: 71 lb.in (8 Nm)

Installation

  1. To install, reverse the removal procedure.
