Lincoln Aviator: Information and Entertainment System - General Information / Removal and Installation - Front Door Speaker
Removal
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
-
Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
Front door mid range speaker
-

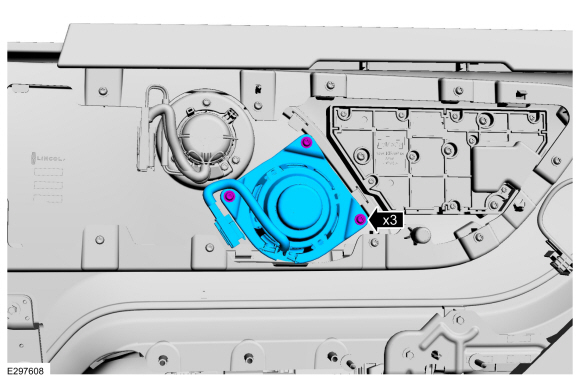

Separate the wiring harness guide, remove the screws and the front door mid range speaker
Torque:
22 lb.in (2.5 Nm)
Front door woofer speaker
-

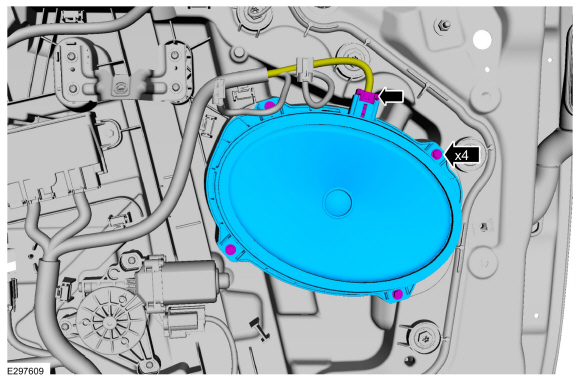

Disconnect the electrical connector, remove the screws and the front door speaker.
Torque:
22 lb.in (2.5 Nm)
Installation
-
To install, reverse the removal procedure.
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
NOTE:
Removal steps in this procedure may contain installation details...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
