Lincoln Aviator: Bumpers / Removal and Installation - Front Bumper
Special Tool(s) /
General Equipment
Removal
-
Remove the front bumper cover.
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
-

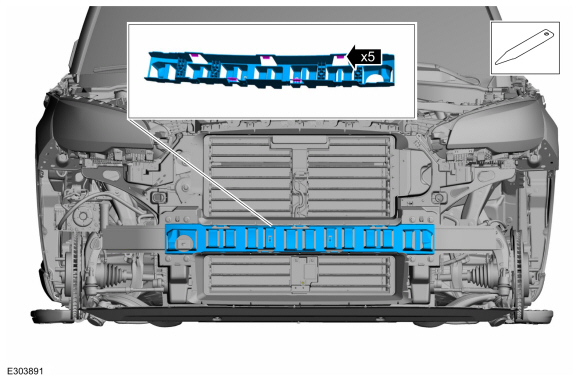

Release the tabs and remove the front bumper energy absorber.
Use the General Equipment: Interior Trim Remover
-
With the help of assistant.

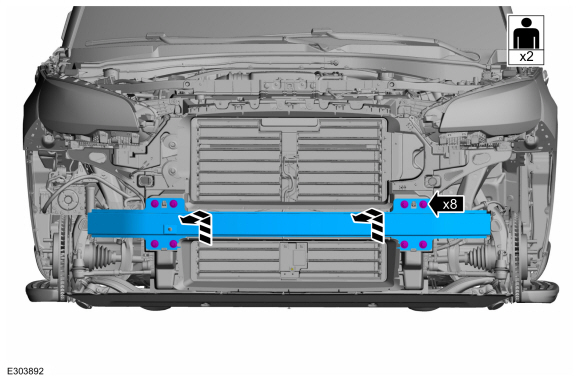

Remove the bolts and the front bumper.
Torque:
35 lb.ft (48 Nm)
Installation
-
To install, reverse the removal procedure.
