Lincoln Aviator: Information and Entertainment System - General Information / Removal and Installation - D-Pillar Speaker

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the upper D-pillar trim panel.
    Refer to: D-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

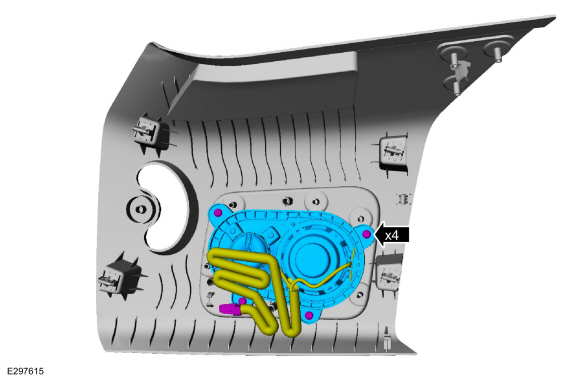

  1. Remove the screws and the D-pillar speaker.
    Torque: 22 lb.in (2.5 Nm)

Installation

  1. To install, reverse the removal procedure.
