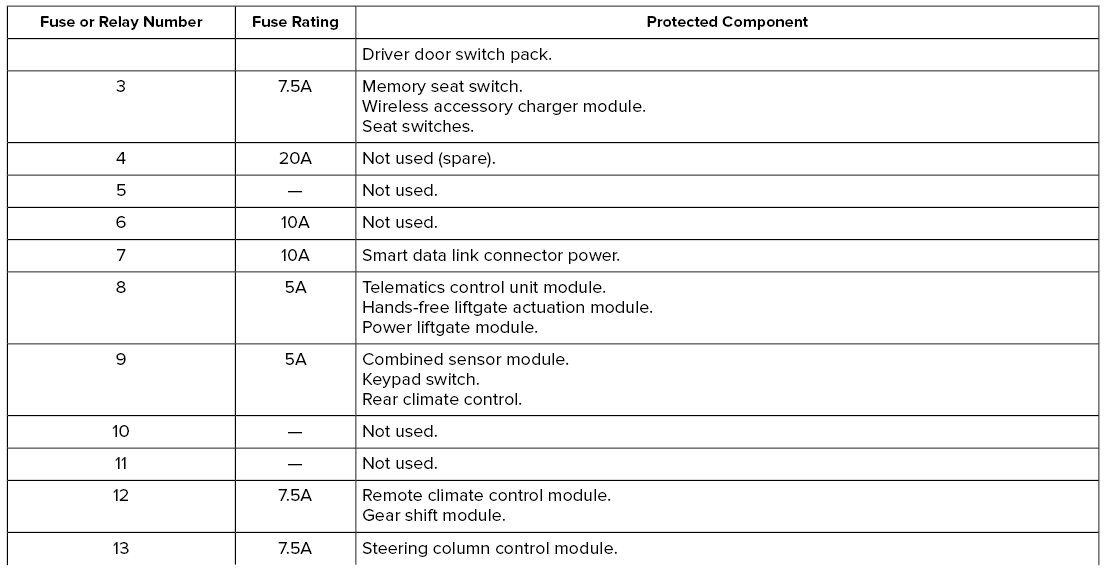

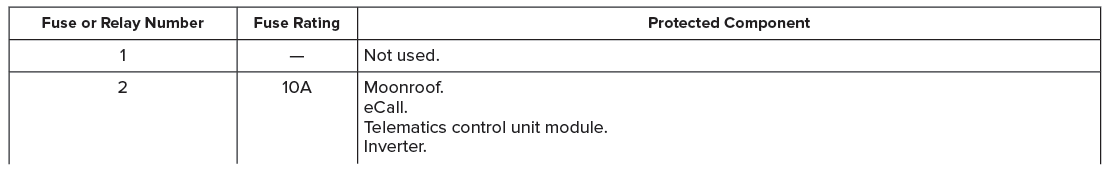

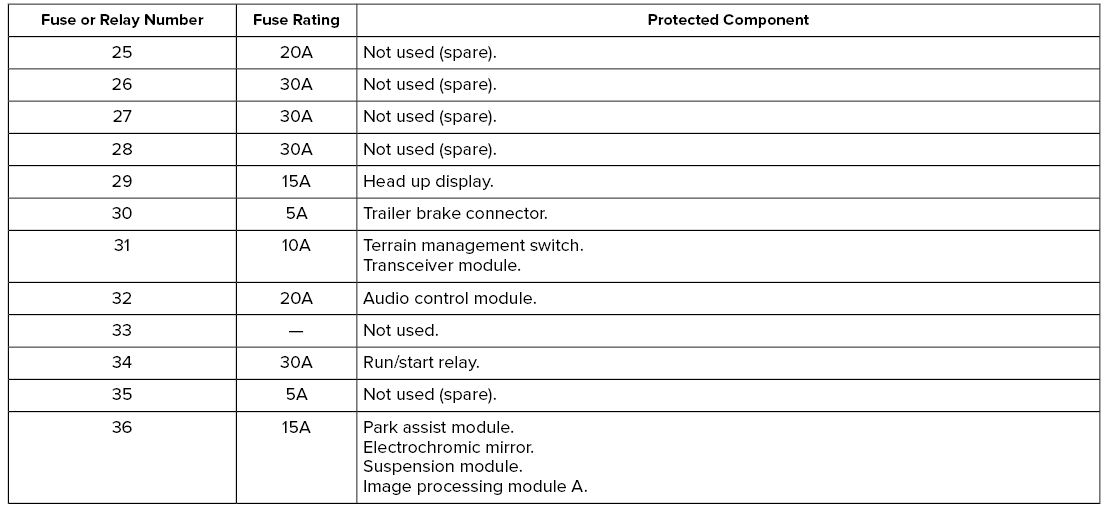

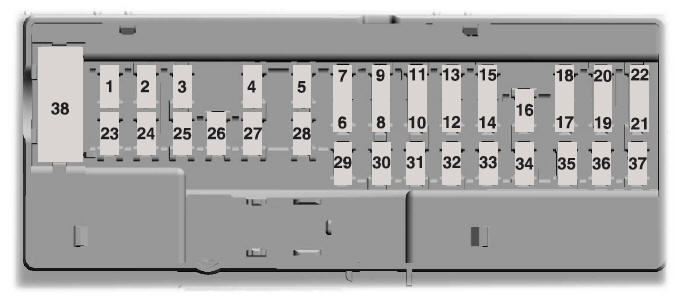

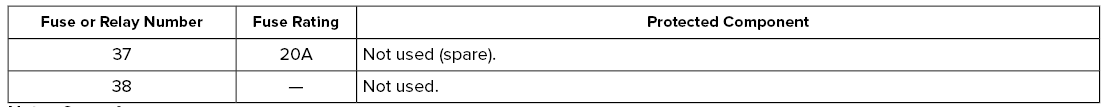

Lincoln Aviator: Fuse Specification Chart / Passenger Compartment Fuse Panel

Engine Compartment Fuse Box

WARNING: Always disconnect the battery before servicing high current fuses. WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs...

Changing a Fuse

Fuses WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire...
