Lincoln Aviator: Engine System - General Information / General Procedures - Valve Stem Diameter
Check
NOTE:
Refer to the appropriate Section 303-01 for the specification.
-

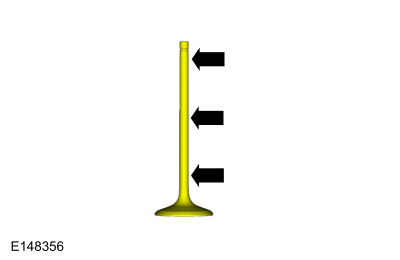

Measure the diameter of each intake and exhaust valve
stem at the points shown. Verify the diameter is within specification.
Check
NOTE:
Refer to the appropriate Section 303-01 for the specification.
NOTE:
Valve guides tend to wear in an hourglass pattern.
The ball gauge can be inserted into the combustion chamber side of the
valve guide, if necessary...
