Lincoln Aviator: Engine System - General Information / General Procedures - Cylinder Bore Taper
Check
NOTE:
Refer to the appropriate Section 303-01 for the specification.
-

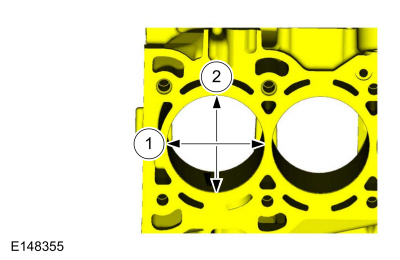

Measure the cylinder bore at the top, middle and bottom
of piston ring travel in 2 directions as indicated. Verify the cylinder
bore is within the wear limit. The difference indicates the cylinder
bore taper. If the cylinder bore taper does not meet specification, bore
the cylinder to the next oversize limit.
Special Tool(s) /
General Equipment
Feeler Gauge
Check
NOTE:
Refer to the appropriate Section 303-01 for the specification.
NOTE:
Use a Straightedge that is calibrated by the
manufacturer to be flat within 0...
Special Tool(s) /
General Equipment
Feeler Gauge
Check
NOTE:
Refer to the appropriate Section 303-01 for the specification.
NOTE:
Make sure all cylinder head surfaces are clear of
any gasket material, silicone sealant, oil and coolant...
