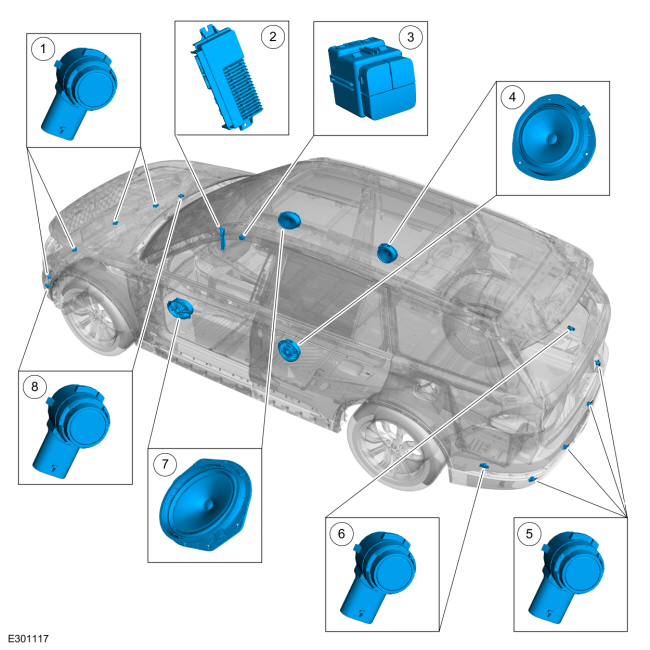

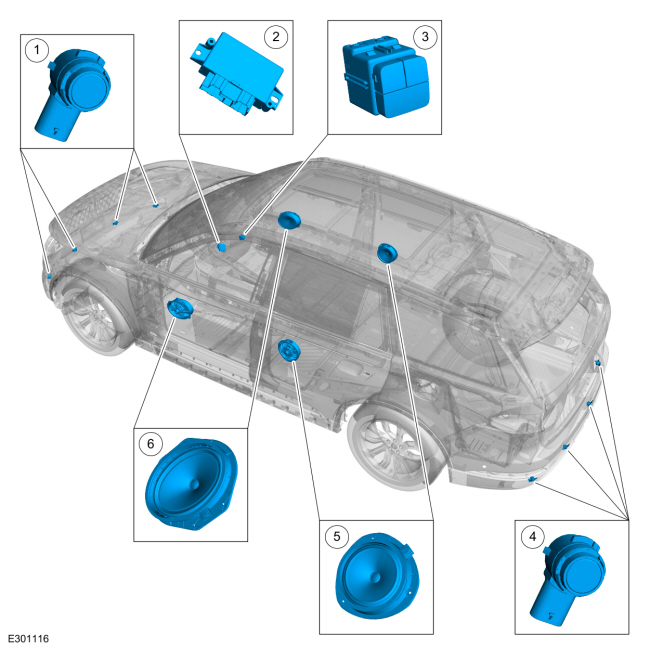

Lincoln Aviator: Parking Aid - Vehicles With: Rear Parking Aid / Description and Operation - Parking Aid - Component Location

Specifications

..

Description and Operation - Parking Aid - Overview

Parking Aid Overview Parking Aid - Audible The available parking aid features depend on the vehicle trim level and options selected. The possible audio parking aid configurations are as follows: Front and rear parking aid Front and rear parking aid, plus active park assist and the side sensing system (also known as flank guard) The rear parking aid system sounds a warning tone through the rear audio speakers to alert the driver of stationary objects near the rear bumper when the vehicle is in reverse...
