Lincoln Aviator: Engine Ignition - 3.0L EcoBoost / Description and Operation - Engine Ignition - Component Location

3.0L EcoBoost

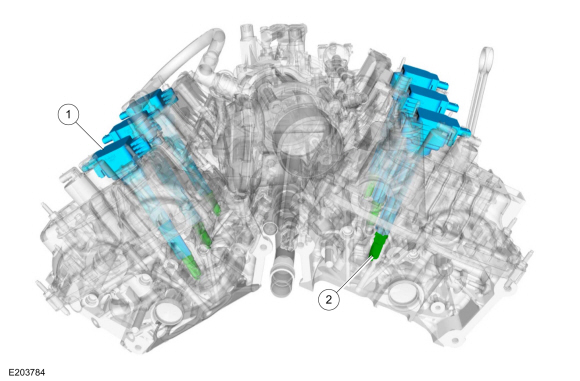

Item Description
1 Ignition coil-on-plug
2 Spark plug

    Specifications

      General Specifications Item Specification Spark plug 12405 Spark plug gap   0...

    Description and Operation - Engine Ignition - System Operation and Component Description

    System Operation Cold Start Emission Reduction Monitor The cold start emission reduction monitor is an on board strategy designed for vehicles that meet the low emissions vehicle-II (LEV-II) emissions standards...
